AFL-F08A-N270 Panel PC
Page 19
3.6 Internal Cover Removal
To change jumper settings and to access most internal parts, the internal aluminum cover
needs to be removed. To remove this cover, please follow the steps below.

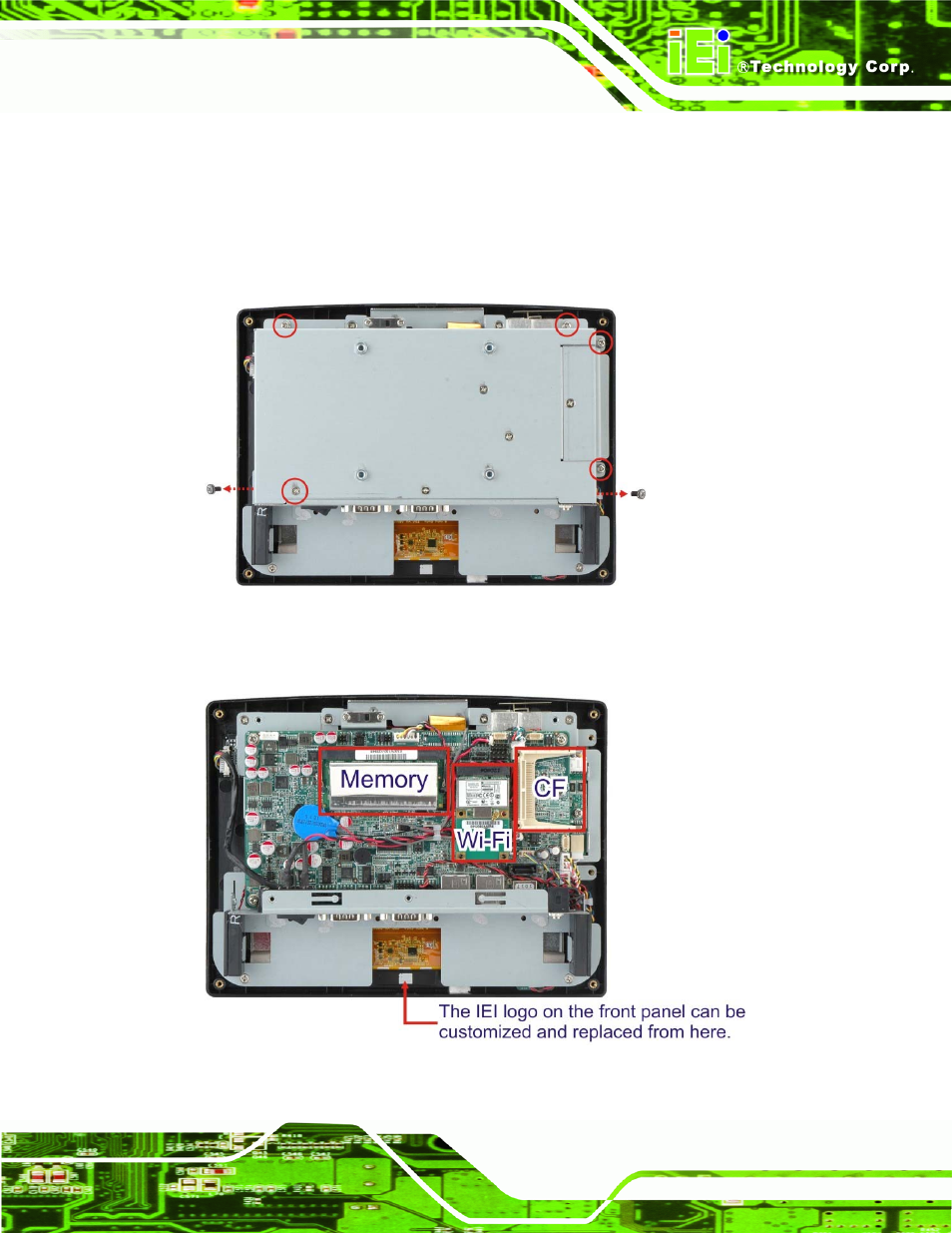

Step 1: Undo the fastening screws indicated by the arrows and circles below.
Figure 3-5: Internal Cover Removal
Step 2: The internal parts will all be viewable.
Figure 3-6: Internal Components
