IEI Integration AFL-F08A v2.40 User Manual

Page 32

AFL-F08A-N270 Panel PC

Page 17

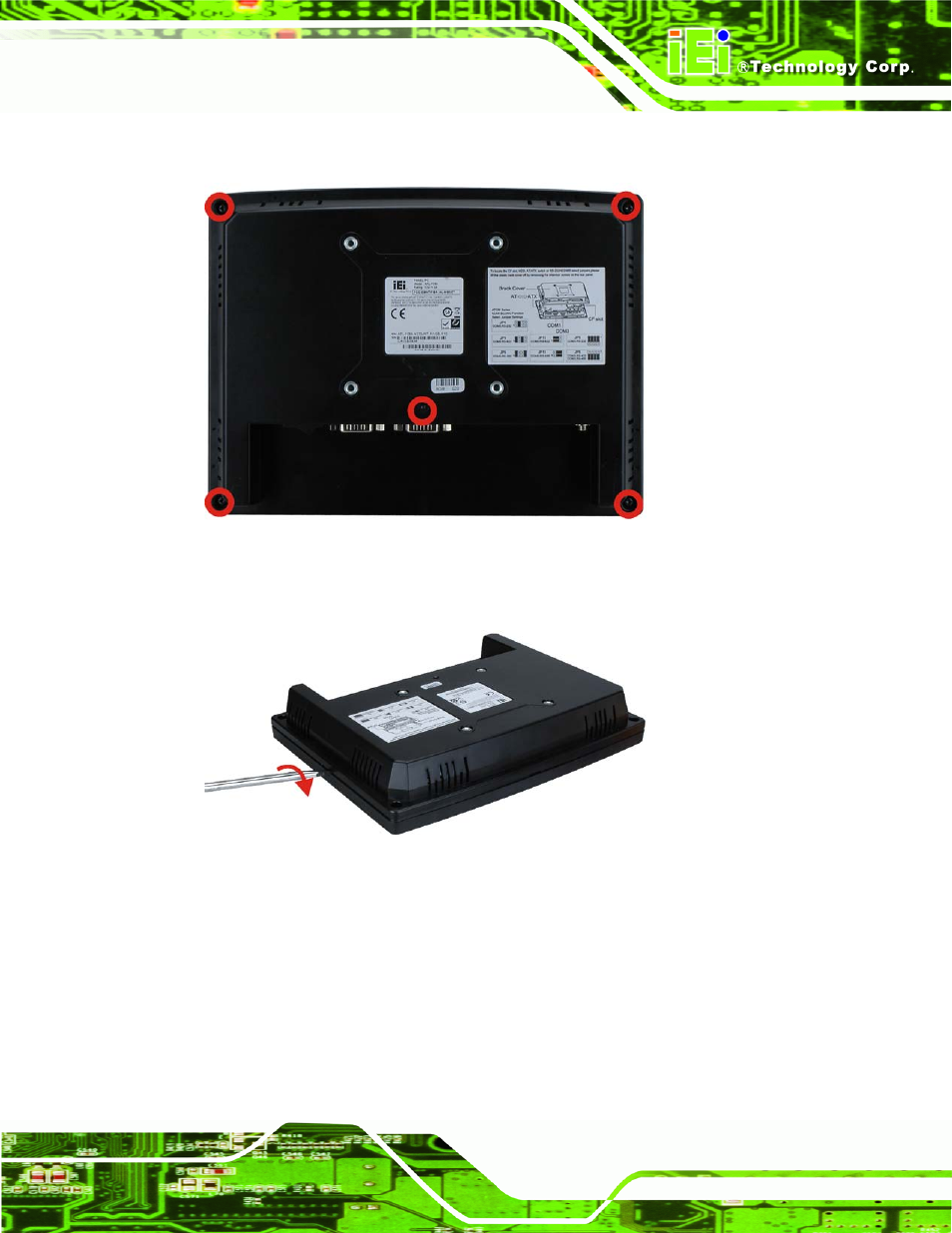

Step 1:

Remove the retention screws and lift the cover off the flat panel PC.

Figure 3-1: Back Cover Retention Screws

Step 2:

Use a screwdriver to gently pry the edges of the system loose.

Figure 3-2: Pry The Rear Cover Off

Step 3:

The cover will come off easily. Slide down slightly to clear the serial port

connectors.
