3.7.7 COM3 TX Function Select Jumper
Jumper Label: JP11
Jumper Type: 6-pin header
Jumper Settings: See
77
Table 3-9
Jumper Location: See
77
Figure 3-11
The COM3 TX Function Select jumper configures the TX pin on COM3 serial port
connector as RS-422 as an RS-485. The COM3 TX Function Select jumper selection
options are shown in
77
Table 3-9 .
COM3 TX Function Select Description
Short 1 – 3 RS-422 TX-
Short 2 – 4 RS-422 TX+
Short 3 – 5 RS-485 D-
Short 4 – 6 RS-485 D+
Table 3-9: COM3 TX Function Select Jumper Settings
The COM3 TX Function Select jumper location is shown in
77
Figure 3-11 below.

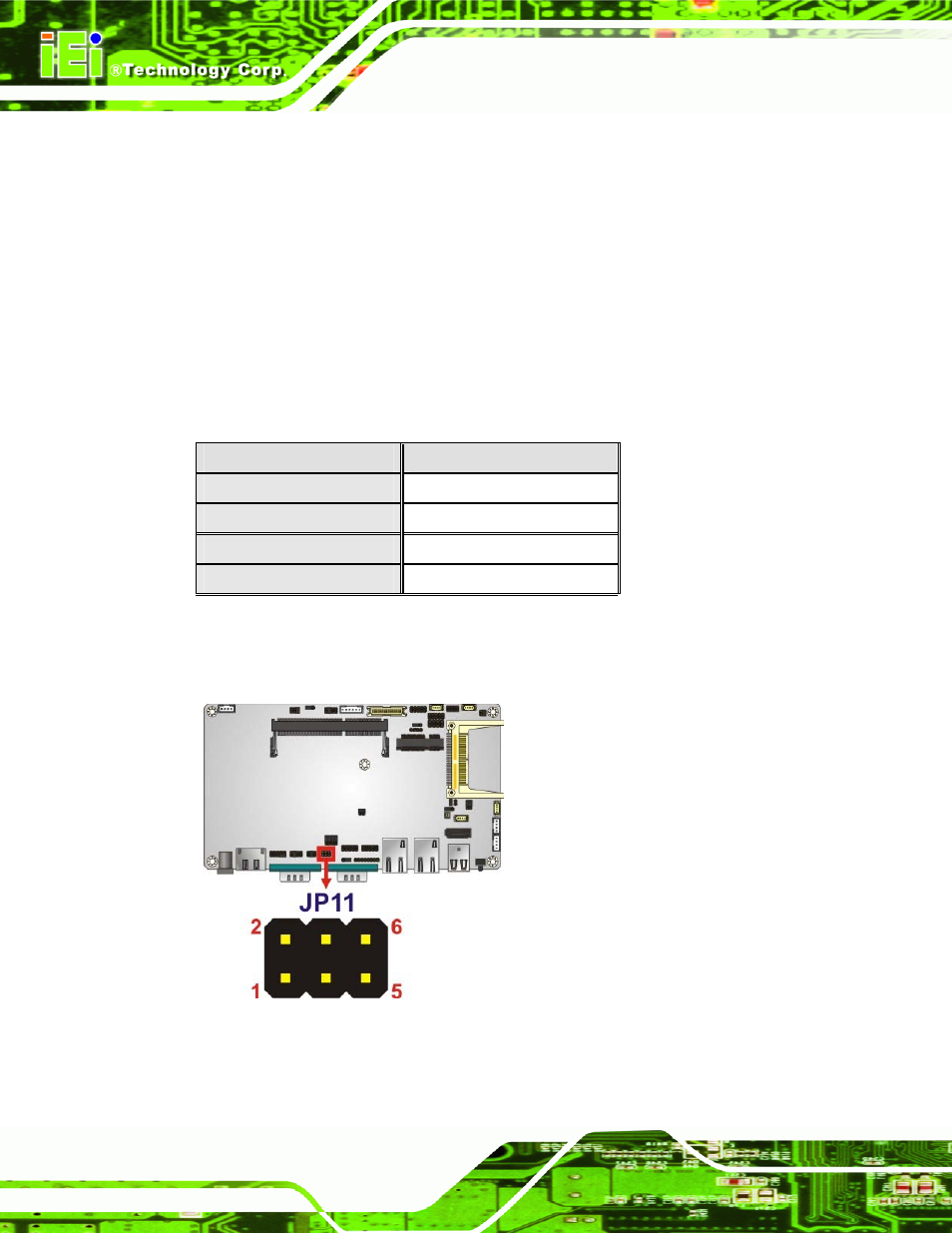

Figure 3-11: COM3 TX Function Select Jumper Pinout Locations
