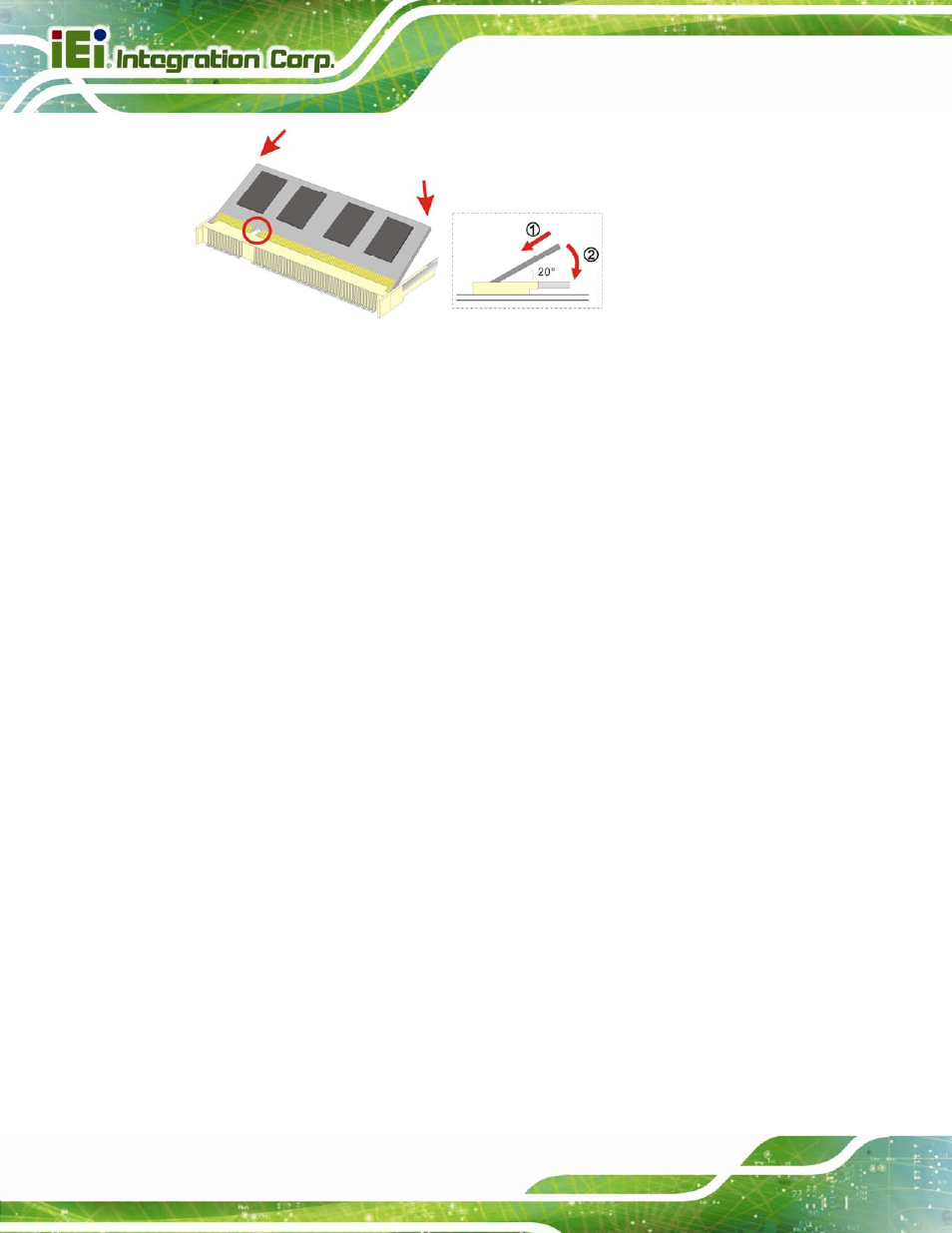

Figure 4-3: DDR SO-DIMM Module Installation
4.4.2 SATA DOM Card Replacement
The AFL-HM55 Series has one SATA DOM card slot. To replace the SATA DOM card,
follow the instructions below.
Step 1:
Follow all anti-static procedures. See Section 4.2.
Step 2:
Turn off the power
. See Section 4.3.
Step 3:
Remove the HDD Cover
. See Section 3.4.
Step 4:
Follow the instructions listed in Section 3.5 to replace the SATA DOM card.
4.4.3 HDD Card Replacement
The AFL-HM55 Series has one HDD slot. To replace the HDD, follow the instructions
below.
Step 1:
Follow all anti-static procedures.
See Section 4.2.
Step 2:
Turn off the power
. See Section 4.3.
Step 3:
Remove the HDD Cover
. See Section 3.4.
Step 4:
Follow the instructions listed in Section 3.6 to replace the HDD card.
