AFL-HM55 Series Panel PC

Page 31

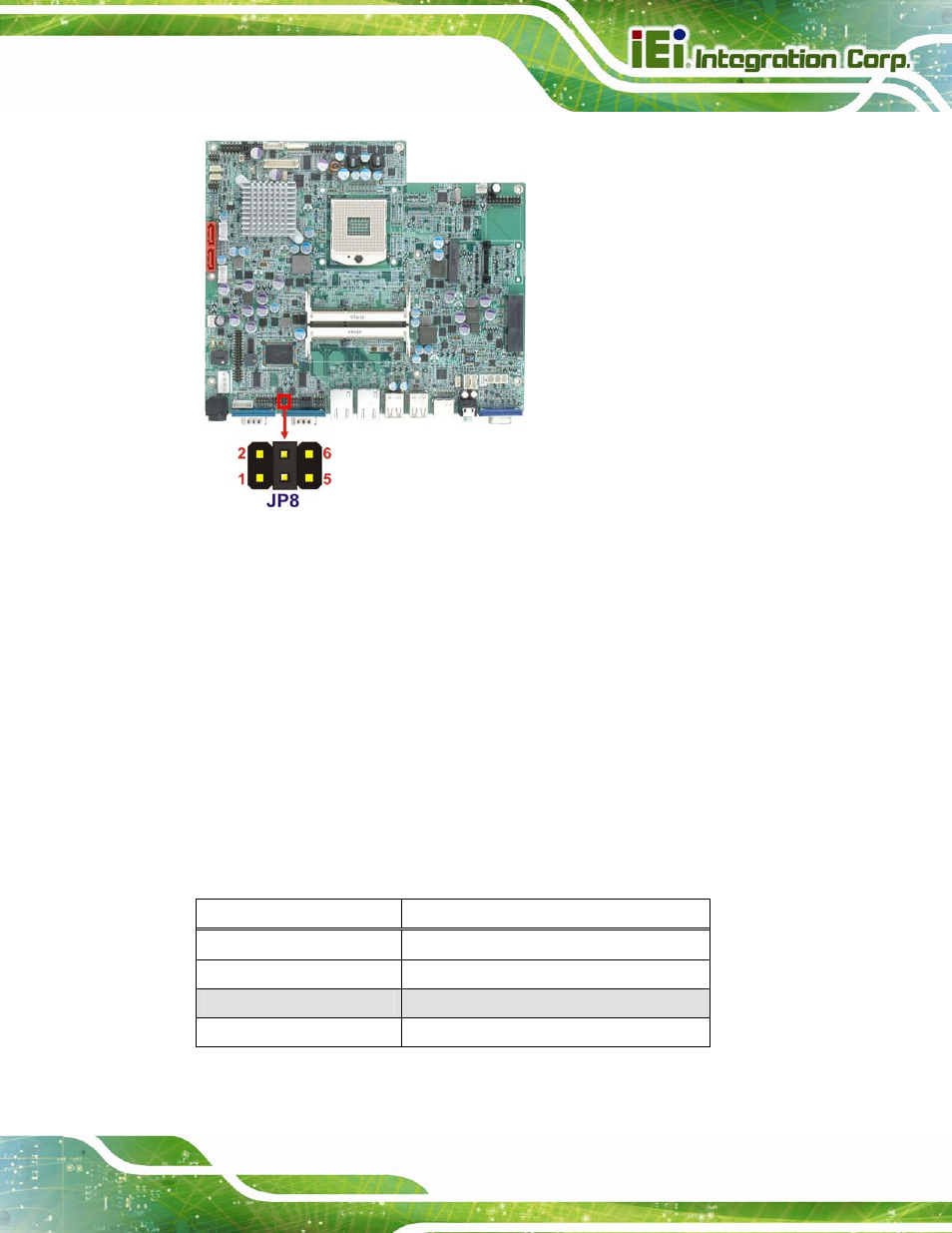

Figure 3-9: JP8 Jumper Setting Location

3.9.5 COM3 TX Function Select Jumper

Jumper Label:

JP9

Jumper Type:

6-pin header

Jumper Settings:

See Table 3-6

Jumper Location:

See Figure 3-10

The COM3 TX Function Select jumper configures the TX pin on COM3 serial port

connector as RS-422 or RS-485. The COM3 TX Function Select jumper selection

options are shown in Table 3-6.

JP9 Description

Short 1 – 3

RS-422 TX-

Short 2 – 4

RS-422 TX+

Short 3 – 5

RS-485 D-

Short 4 – 6

RS-485 D+

Table 3-6: COM3 TX Function Select Jumper Settings
