AFL-HM55 Series Panel PC

Page 22

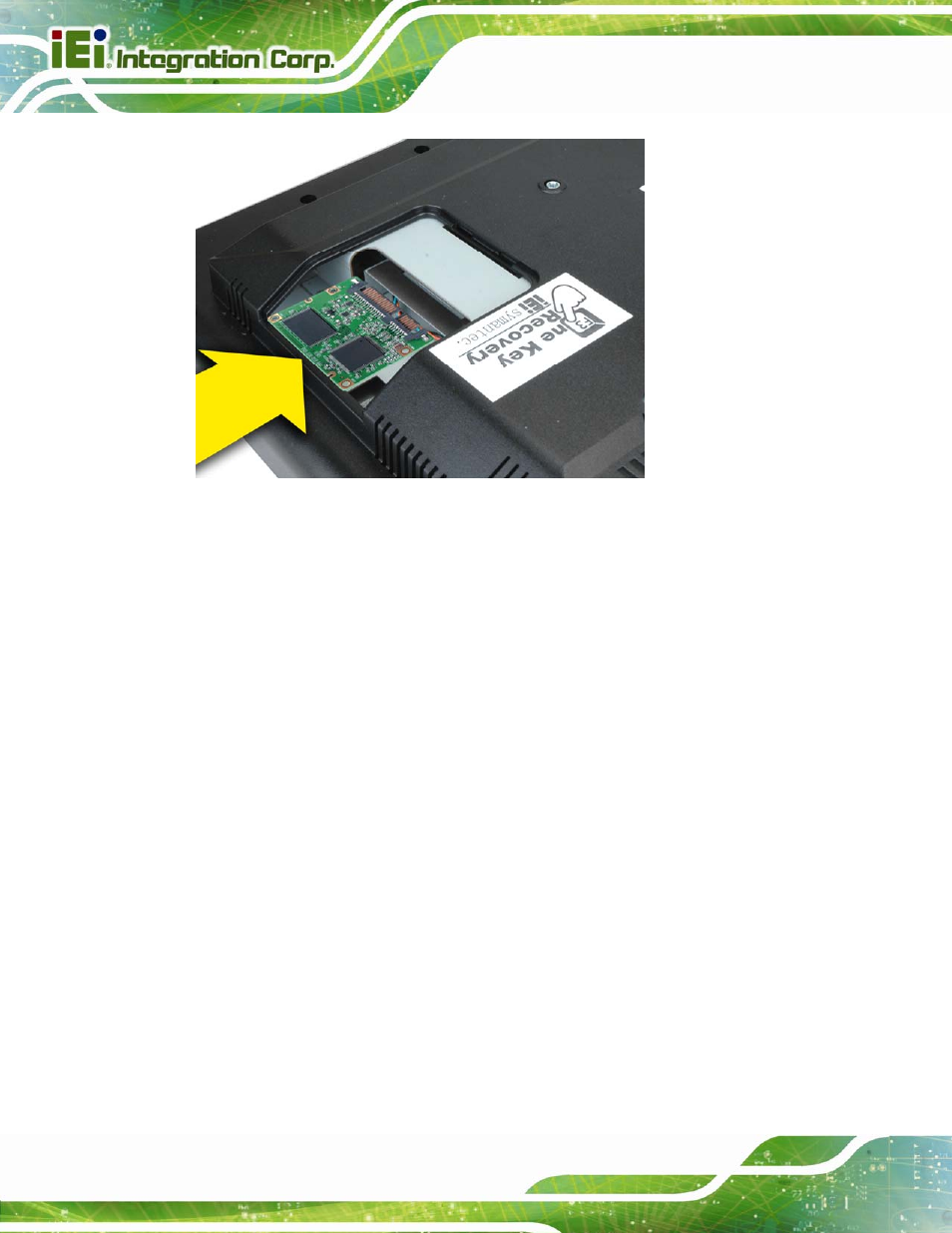

Figure 3-2: SATA DOM Card Installation

Step 3:

Replace the HDD cover and secure using one (1) retention screw.

3.6 Installing an HDD

To install an HDD, please follow the steps below:

Step 1:

Remove the HDD cover (See Section 3.4).

Step 2:

The user may secure the supplied HDD bracket to the HDD with one retention

screw on each side (Figure 3-4). The HDD bracket allows easily inserting or

removing the HDD.
