AFL-HM55 Series Panel PC
Page 32

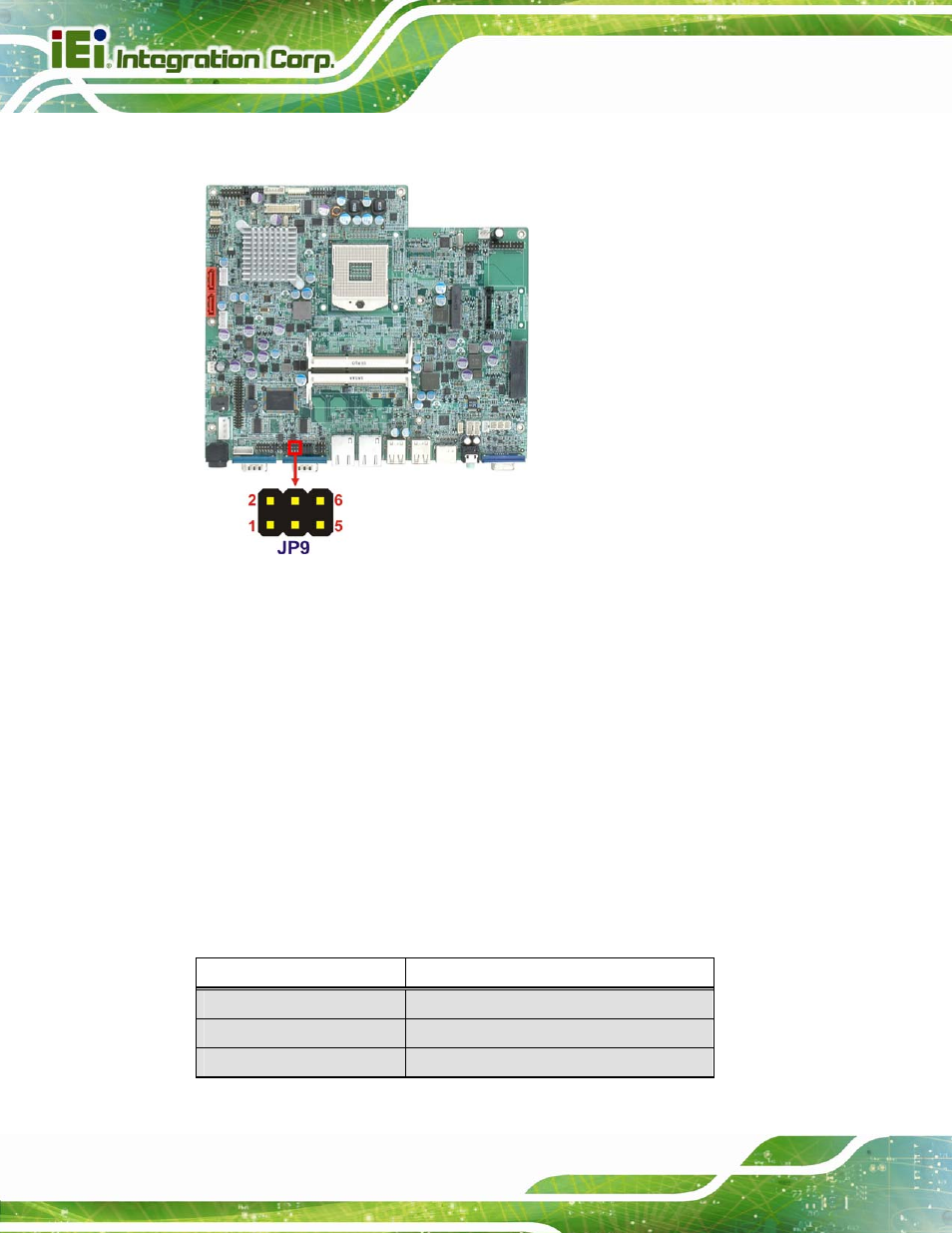

The COM3 TX Function Select jumper location is shown in Figure 3-10 below.
Figure 3-10: COM3 TX Function Select Jumper Location
3.9.6 COM3 RS-232/422/485 Jumper
Jumper Label:
JP10
Jumper Type:
12-pin header (four 3-pin headers combined)
Jumper Settings:
Jumper Location:
The COM3 RS-232/422/485 Serial Port Select jumper sets the communication protocol
used by the second serial communications port (COM3) as RS-232, RS-422 or RS-485.
The COM3 RS-232/422/485 Serial Port Select settings are shown in Table 3-7.
JP10 Description
Short 1-2
RS-232
Short 4-5
RS-232
Short 7-8
RS-232
