AFL-HM55 Series Panel PC
Page 48
3.11.2 Serial Device Connection
The AFL-HM55 Series has two male DB-9 connectors on the bottom panel for serial
devices to be connected. Follow the steps below to connect a serial device to the
AFL-HM55 Series panel PC.
Step 1: Locate the DB-9 connector . The location of the DB-9 connector is shown in
Chapter 2 .
Step 2: Insert the serial connector . Insert the DB-9 connector of a serial device into
the DB-9 connector on the bottom panel. See Figure 3-27.

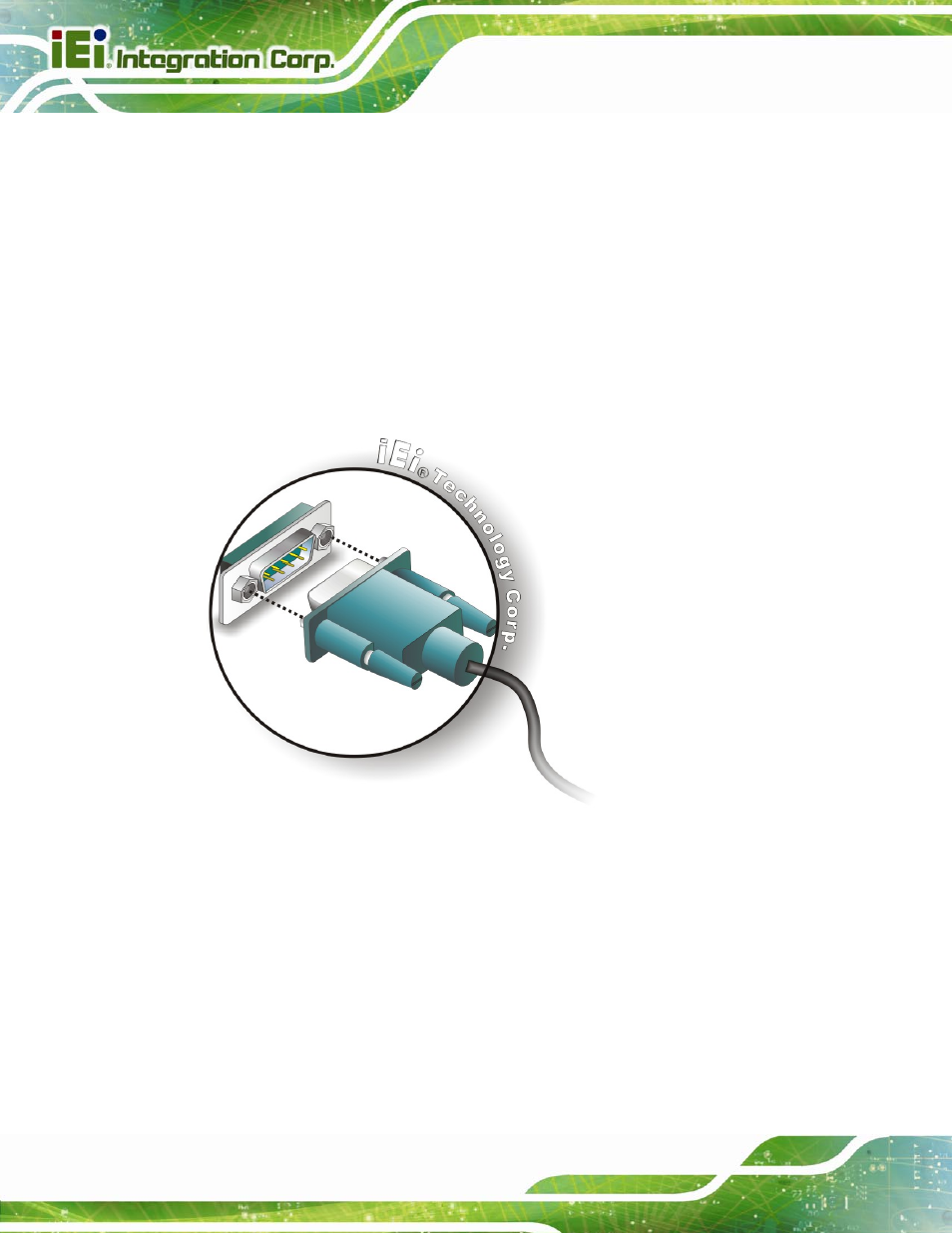

Figure 3-27: Serial Device Connector
Step 3: Secure the connector . Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
