AFL-HM55 Series Panel PC
Page 46
Step 4: Secure the flat panel PC to the interface pad by inserting four retention screws
through the bottom of the mounting arm interface pad and into the flat panel PC.
3.10.4 Cabinet and Rack Installation (15-inch and 17-inch models only)
The AFL-HM55 Series flat panel PC can be installed into a cabinet or rack. The installation
procedures are similar to the panel mounting installation. To do this, please follow the
steps below:
NOTE:
When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the AFL-HM55 Series flat panel PC and the
rack/cabinet into which the AFL-HM55 Series is installed.
Step 1: Slide the rear chassis of the AFL-HM55 Series flat panel PC through the
rack/cabinet bracket until the aluminum frame is flush against the front of the
bracket (Figure 3-25).

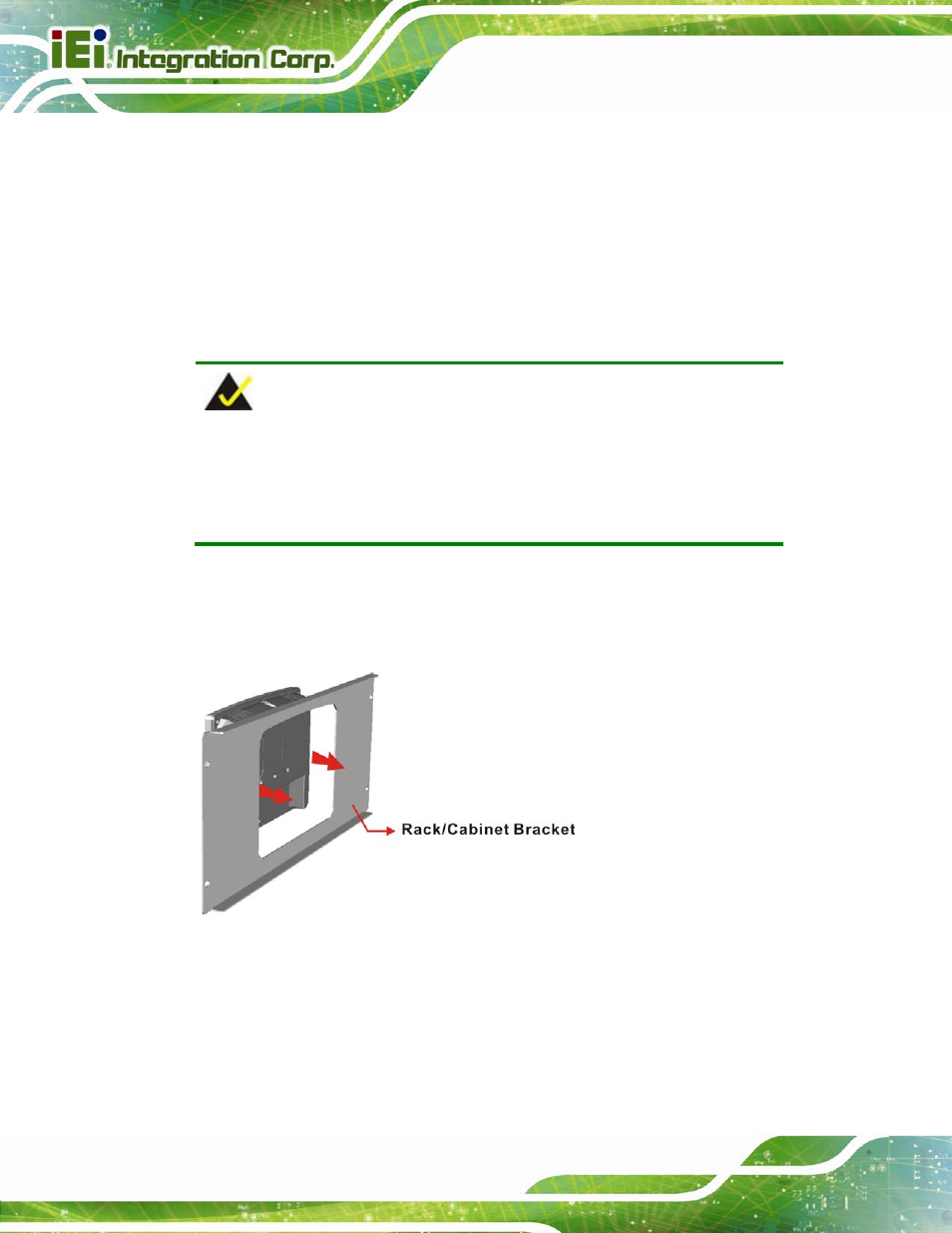

Figure 3-25: The Rack/Cabinet Bracket
Step 2: Follow the Step 4 ~ Step 7 in Section 3.10.2 to mount the AFL-HM55 Series
into a cabinet or rack.
