AFL-HM55 Series Panel PC
Page 26

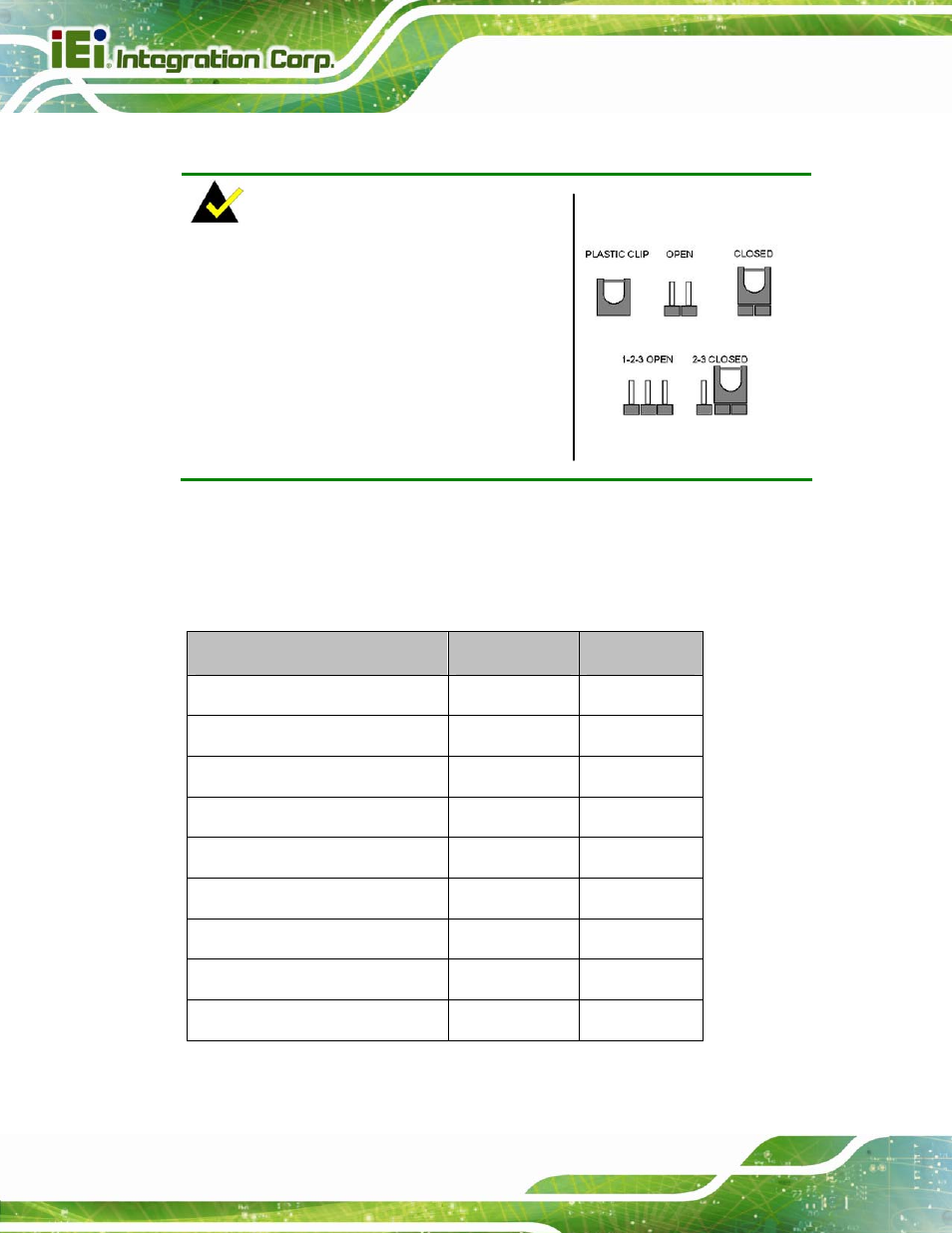

3.9 Jumper Settings
NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect
them. To CLOSE/SHORT a jumper means
connecting the pins of the jumper with the plastic
clip and to OPEN a jumper means removing the
plastic clip from a jumper.
The following jumpers can be found on the motherboard installed in the AFL-HM55 Series.
Before the AFL-HM55 Series is installed, the jumpers must be set in accordance with the
desired configuration. The jumpers on the AFL-HM55 Series motherboard are listed in
Table 3-1 .
Description Label Type
Clear CMOS setting J_CMOS1 3-pin header
COM1 Pin 9 setting JP7, JP8 6-pin header
COM3 TX function select JP9 6-pin header
COM3 RS-232/422/485 JP10 12-pin header
COM3 RS function select JP11 8-pin header
ME Debug Mode JP12 2-pin header
iTPM setting J_ITPM1 3-pin header
ME RTC select ME_RTC1 3-pin header
SPI setting J_SPI1 3-pin header
Table 3-1: Jumpers
