ECN-780-Q67 Em b e d d e d S ys te m
P a g e 21

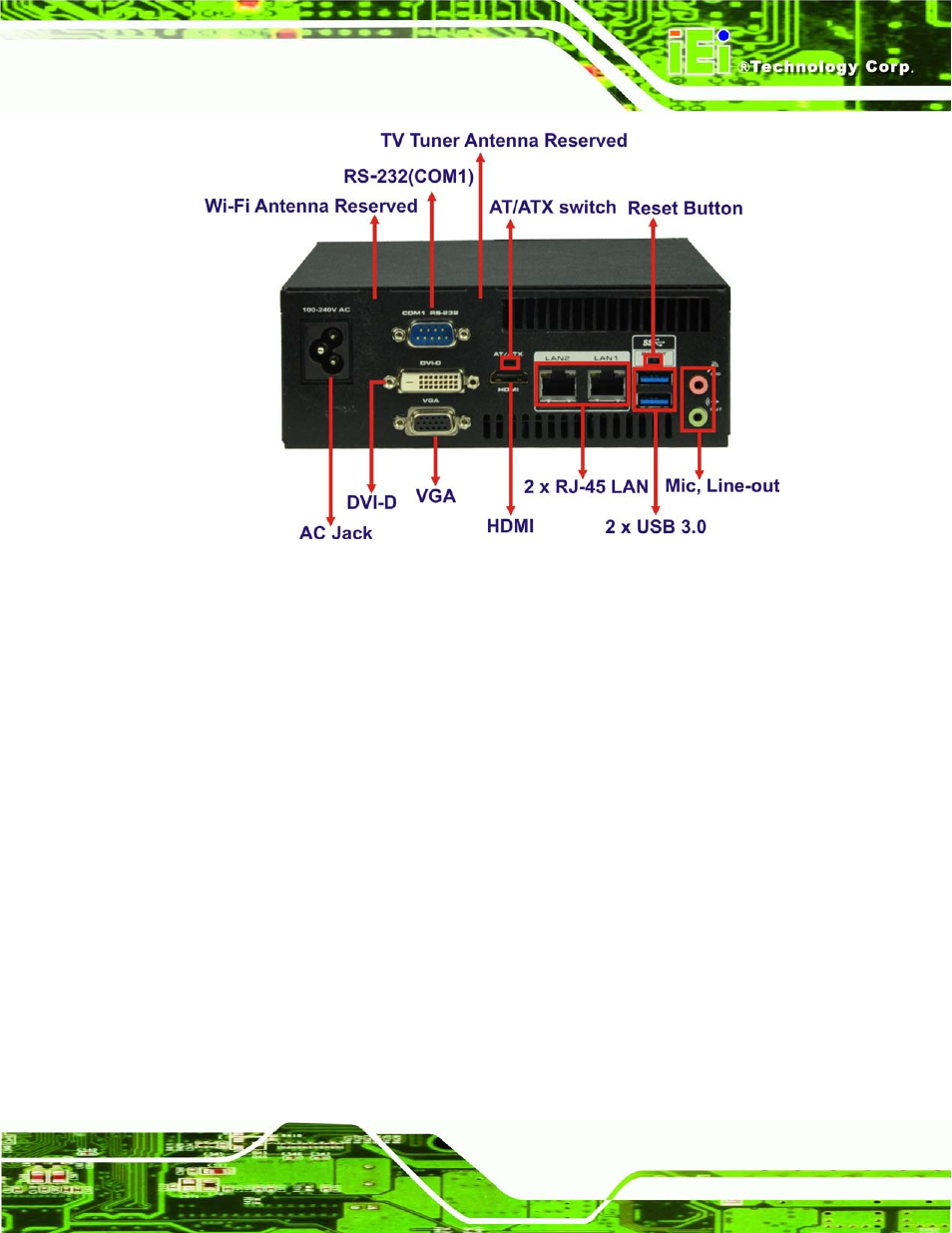

Figure 3-10: Peripheral Connectors (Rear Panel)
3.8.1 Au d io Co n n e c tio n
The audio jacks on the external audio connector enable the ECN-780-Q67 to be
connected to a stereo sound setup. To install the audio devices, follow the steps below.
S te p 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel. If audio plugs are plugged into the
wrong jacks, sound quality will be very bad.
S te p 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.
 Line Out port (Lime): Connects to a headphone or a speaker.
 Microphone (Pink): Connects to a microphone.
