NOVA-HM551 5.25" SBC

Page 70

Step 3:

Insert the HDMI connector. Gently insert the HDMI connector. The connector

should engage with a gentle push. If the connector does not insert easily, check

again that the connector is aligned correctly, and that the connector is being

inserted with the right way up.

Step 0:

4.8.2 LAN Connection

There are two external RJ-45 LAN connectors. The RJ-45 connector enables connection

to an external network. To connect a LAN cable with an RJ-45 connector, please follow

the instructions below.

Step 1:

Locate the RJ-45 connectors. The locations of the LAN connector are shown

in Chapter 4.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the NOVA-HM551. See Figure 4-21.

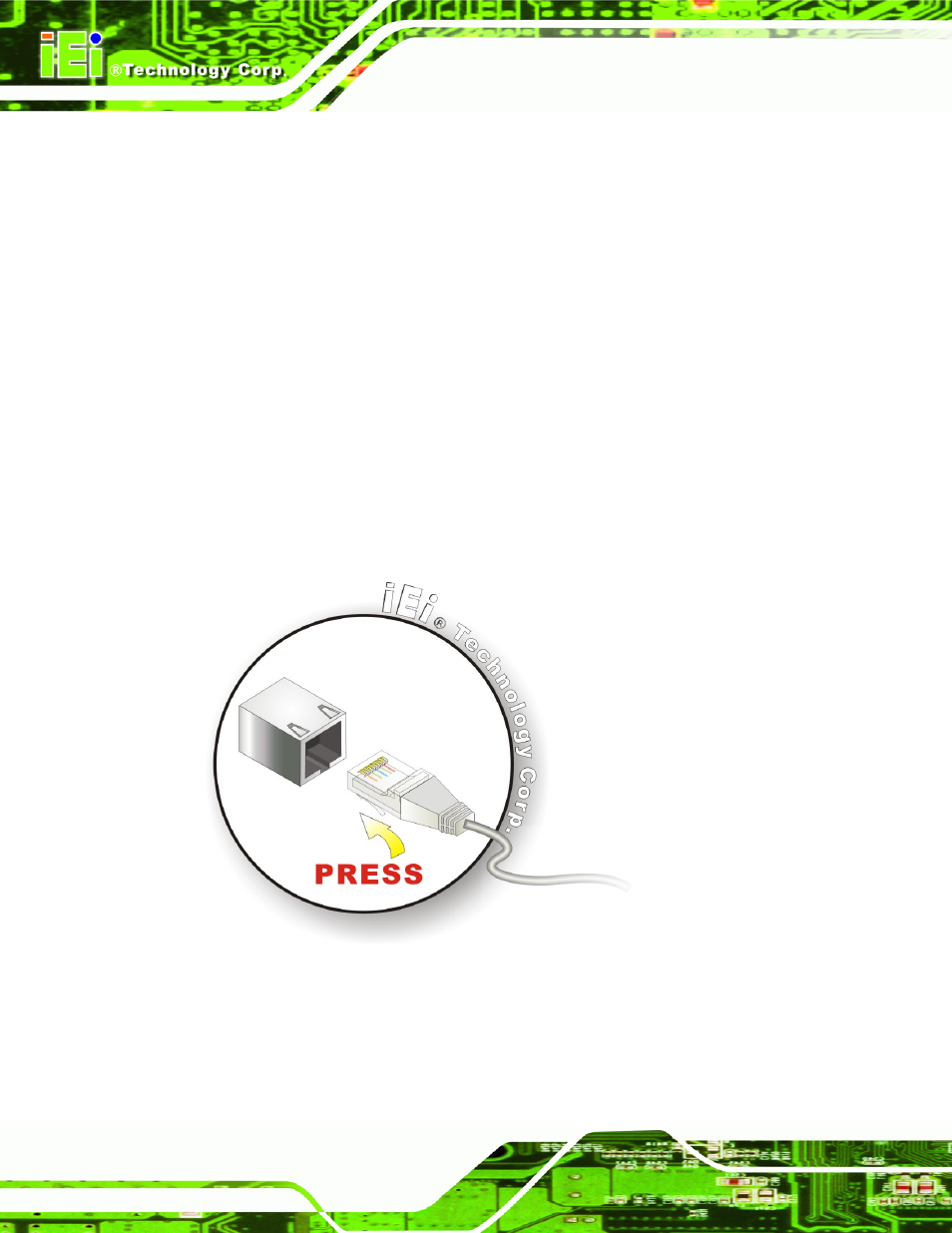

Figure 4-21: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

Step 0:
