NOVA-HM551 5.25" SBC
Page 69
4.8 External Peripheral Interface Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
ƒ HDMI devices
ƒ RJ-45 Ethernet cable connector
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding NOVA-HM551 external peripheral interface connector making
sure the pins are properly aligned.
4.8.1 HDMI Display Device Connection
The HDMI connector transmits a digital signal to compatible HDMI display devices such
as a TV or computer screen. To connect the HDMI cable to the NOVA-HM551, follow the
steps below.
Step 1: Locate the HDMI connector. The location is shown in Chapter 3.
Step 2: Align the connector. Align the HDMI connector with the HDMI port. Make sure
the orientation of the connector is correct.

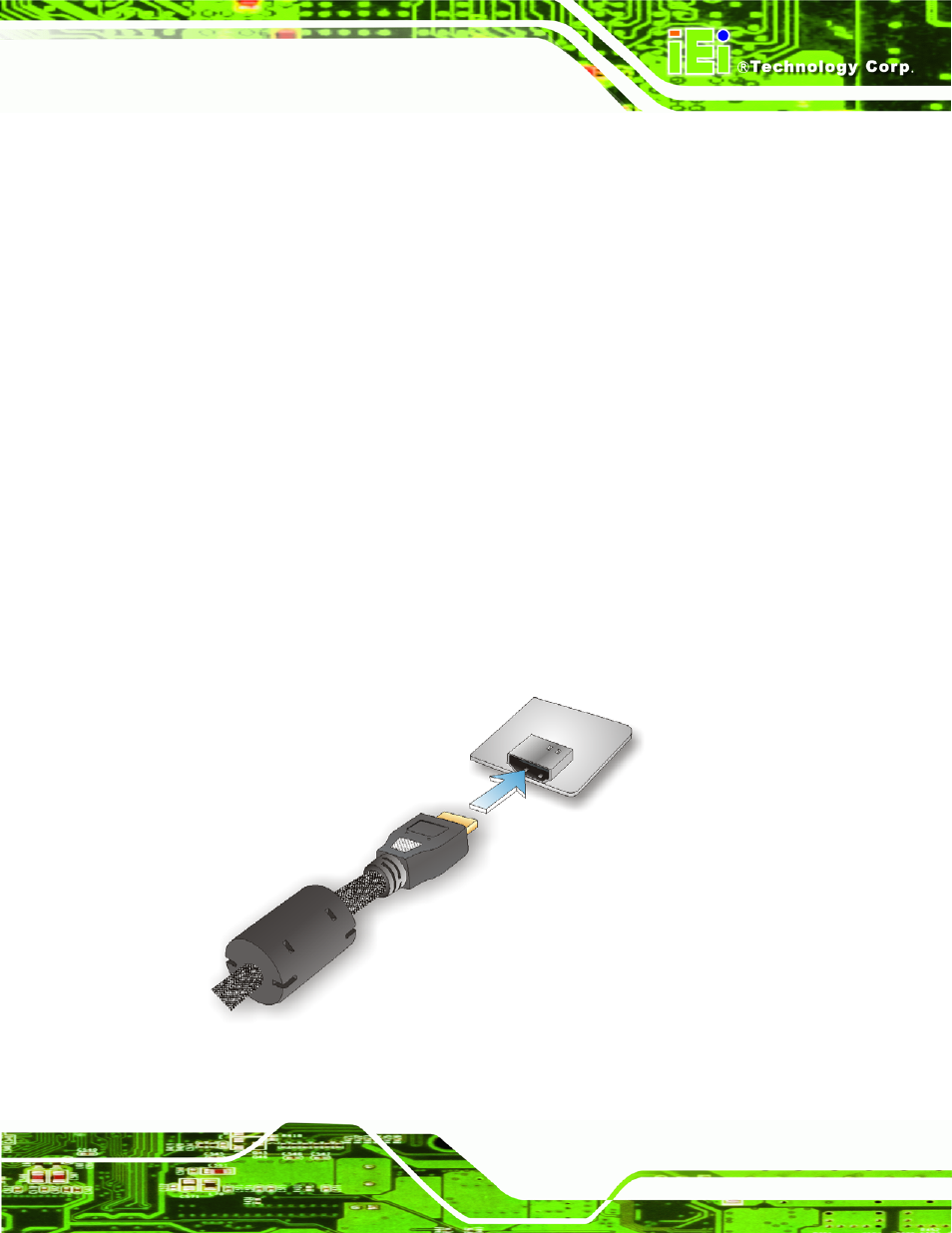

Figure 4-20: HDMI Connection
