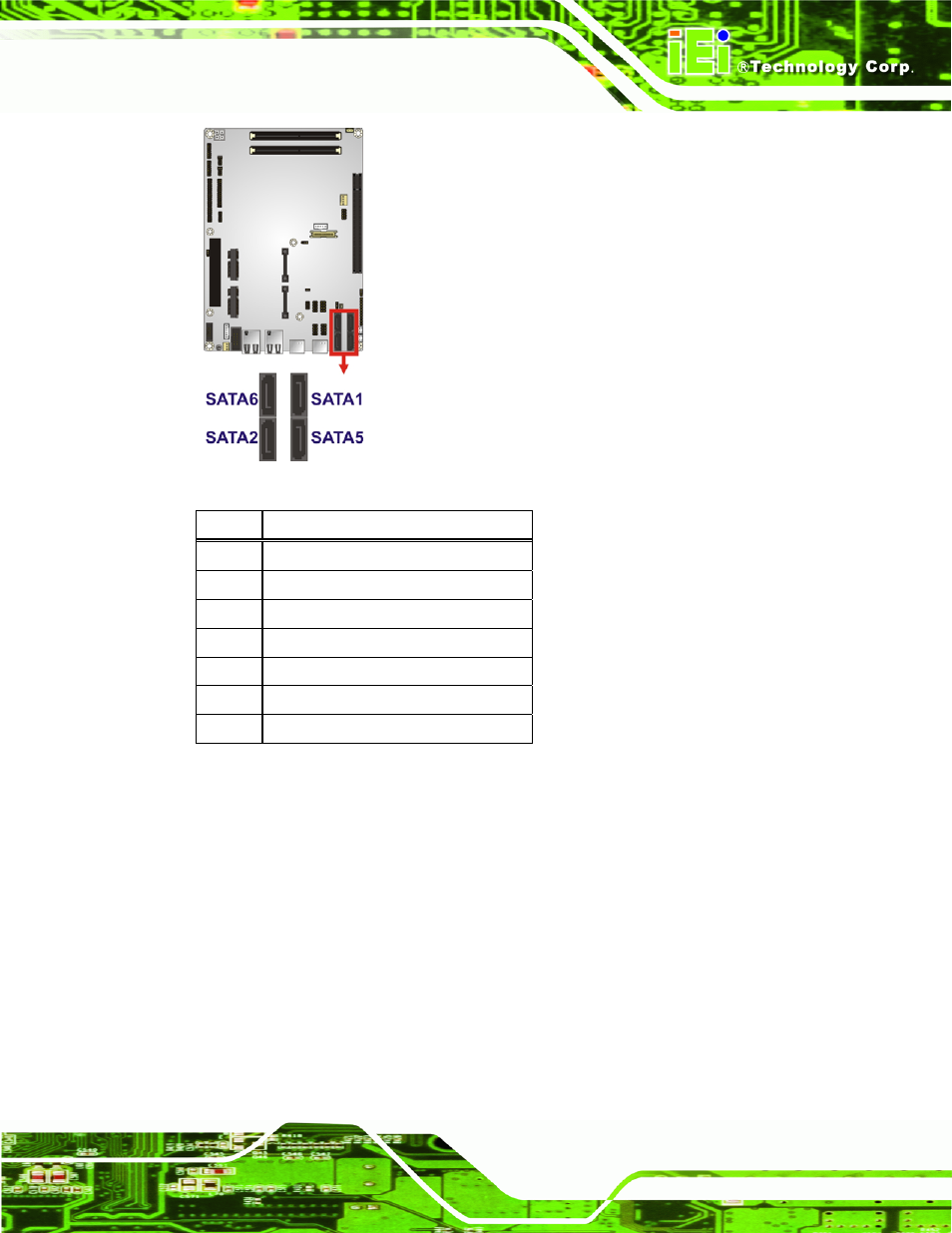

Figure 3-17: SATA Drive Connector Locations

Pin Description

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-18: SATA Drive Connector Pinouts

3.2.17 SATA Power Connectors

CN Label:

SATA_PWR1, SATA_PWR2

CN Type:

2-pin wafer (1x2)

CN Location:

See Figure 3-18

CN Pinouts:

See Table 3-19

The SATA Power Connectors provides +5V power output to the SATA connectors.
