NOVA-HM551 5.25" SBC

Page 60

Setting Description

Short 3-4

1024 X 768 (18-bit)

Short 1-2, 3-4

1024 X 768 (24-bit)

Short 5-6

1024 X 768 (48-bit)

Short 1-2, 5-6

1280 X 1024 (48-bit)

Short 3-4, 5-6

1600 X 1200 (48-bit)

Short 1-2, 3-4, 5-6

1280 X 768 (18-bit)

Short 7-8

1280 X 800 (18-bit)

Short 1-2, 7-8

1366 X 768 (24-bit)

Short 3-4, 7-8

1440 X 900 (36-bit)

Short 1-2, 3-4, 7-8

1440 X 900 (48-bit)

Short 5-6, 7-8

1680 X 1050 (48-bit)

Short 1-2, 5-6, 7-8

1920 X 1080 (48-bit)

Short 3-4, 5-6, 7-8

1920 X 1200 (48-bit)

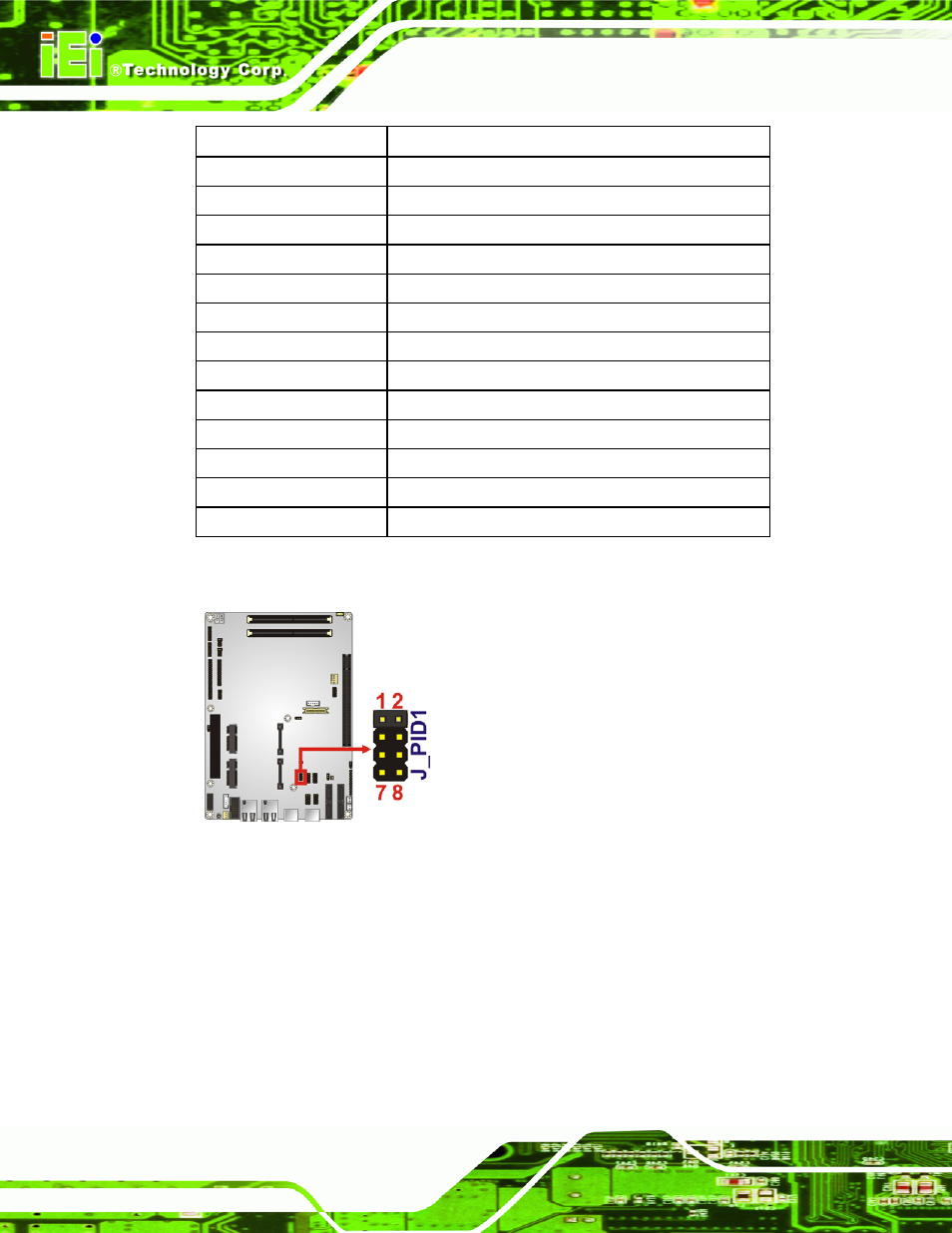

Table 4-7: LVDS1 Panel Resolution Jumper Setting

Figure 4-11:LVDS Panel Resolution Jumper Pinout Locations

4.5.7 PCI-104 Voltage Setup

Jumper Label:

JP6

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-8

Jumper Location:

See Figure 4-12
