NOVA-HM551 5.25" SBC

Page 38

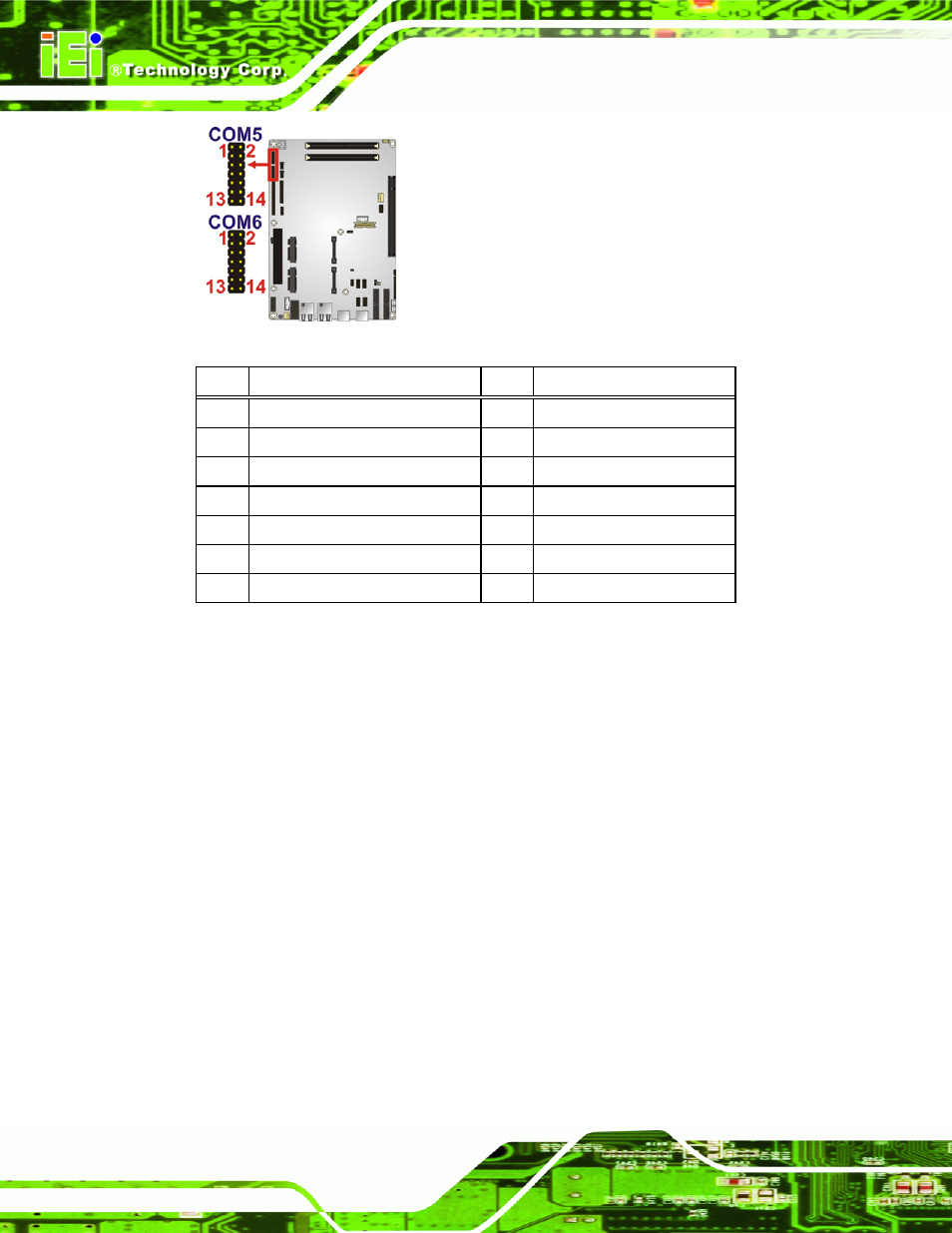

Figure 3-20: Serial Port Connector Location

Pin

DESCRIPTION

Pin

DESCRIPTION

1

DATA CARRIER DETECT (DCD#)

2

DATA SET READY (DSR#)

3

RECEIVE DATA (RXD)

4

REQUEST TO SEND (RTS#)

5

TRANSMIT DATA (TXD)

6

CLEAR TO SEND (CTS#)

7

DATA TERMINAL READY (DTR#)

8

RING INDICATOR (RI#)

9

GND

10

GND

11

TXD485+

12

TXD485#

13

RXD485+

14

RXD485#

Table 3-21: Serial Port Connector Pinouts

3.2.20 SMBus Connector

CN Label:

SMB1

CN Type:

4-pin wafer

CN Location:

See Figure 3-21

CN Pinouts:

See Table 3-22

The SMBus (System Management Bus) connector provides low-speed system

management communications.
