NOVA-HM551 5.25" SBC

Page 68

WARNING:

If the USB pins are not properly aligned, the USB device can burn out.

Step 2:

Align the connectors. The cable has two connectors. Correctly align pin 1on

each cable connector with pin 1 on the NOVA-HM551 USB connector.

Step 3:

Insert the cable connectors. Once the cable connectors are properly aligned

with the USB connectors on the NOVA-HM551, connect the cable connectors to

the on-board connectors. See Figure 4-19.

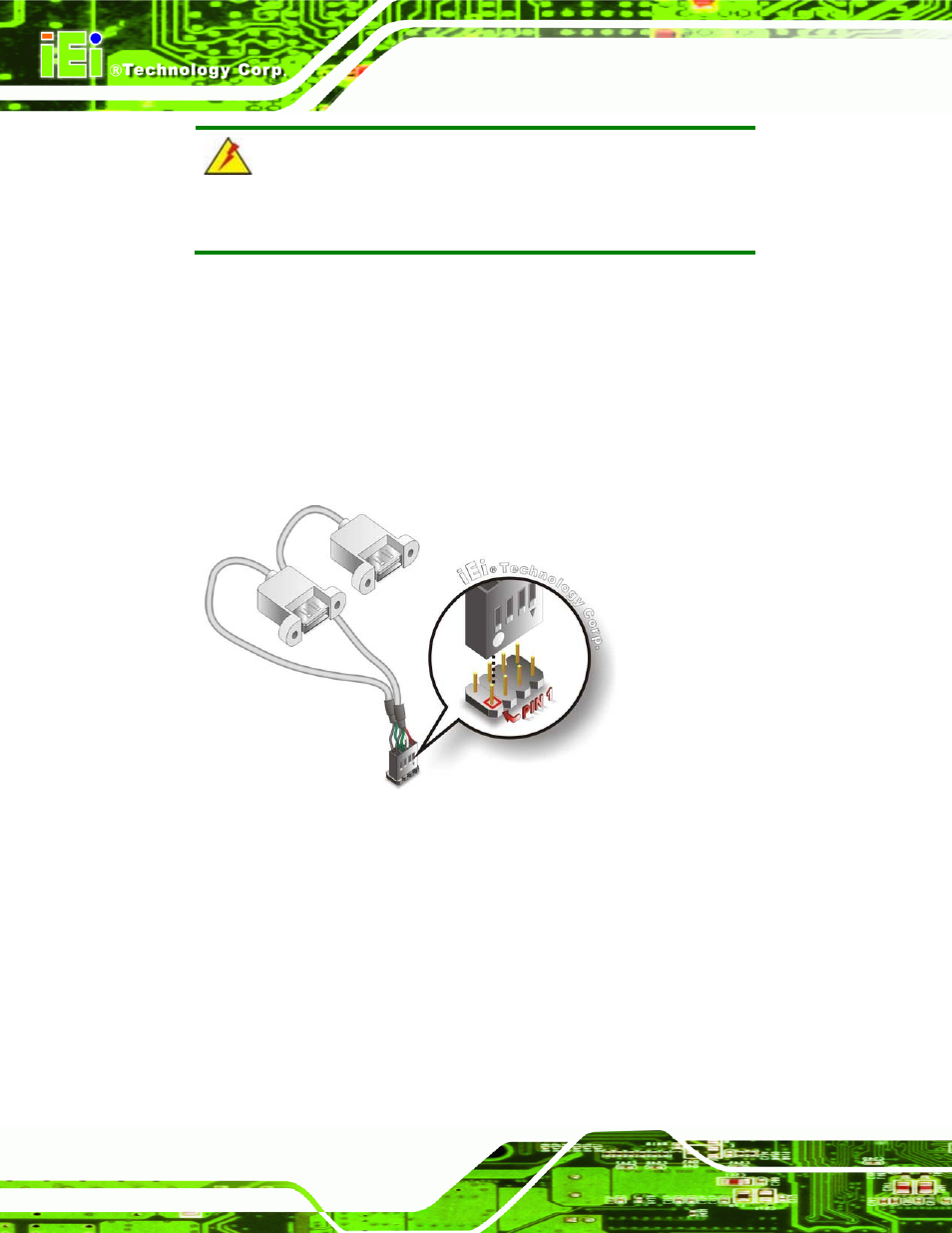

Figure 4-19: Dual USB Cable Connection

Step 4:

Attach the USB connectors to the chassis. The USB 2.0 connectors each of

two retention screw holes. To secure the connectors to the chassis please refer

to the installation instructions that came with the chassis.
