NOVA-HM551 5.25" SBC

Page 25

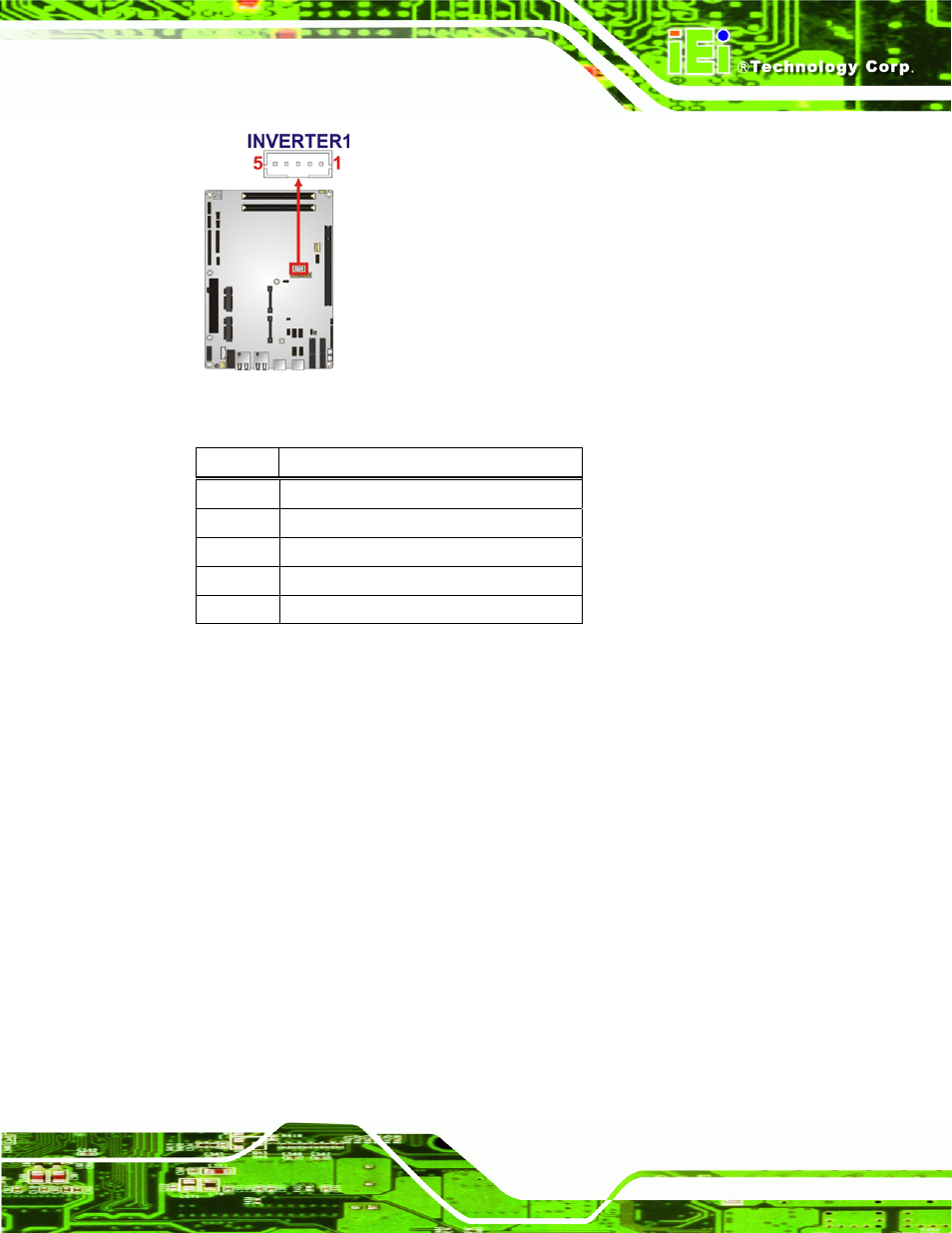

Figure 3-9: Backlight Inverter Connector Location

Pin Description

1 BRIGHTNESS

2 GROUND1

3 +12

V

4 GROUND2

5 BACKLIGHT

ENABLE

Table 3-10: Backlight Inverter Connector Pinouts

3.2.9 LVDS LCD Connector

CN Label:

LVDS1

CN Type:

30-pin crimp (2x15)

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The LVDS connector is for an LCD panel connected to the board.

See also other documents in the category IEI Integration Hardware:
