Page 77

NOVA-HM551 5.25" SBC

Page 63

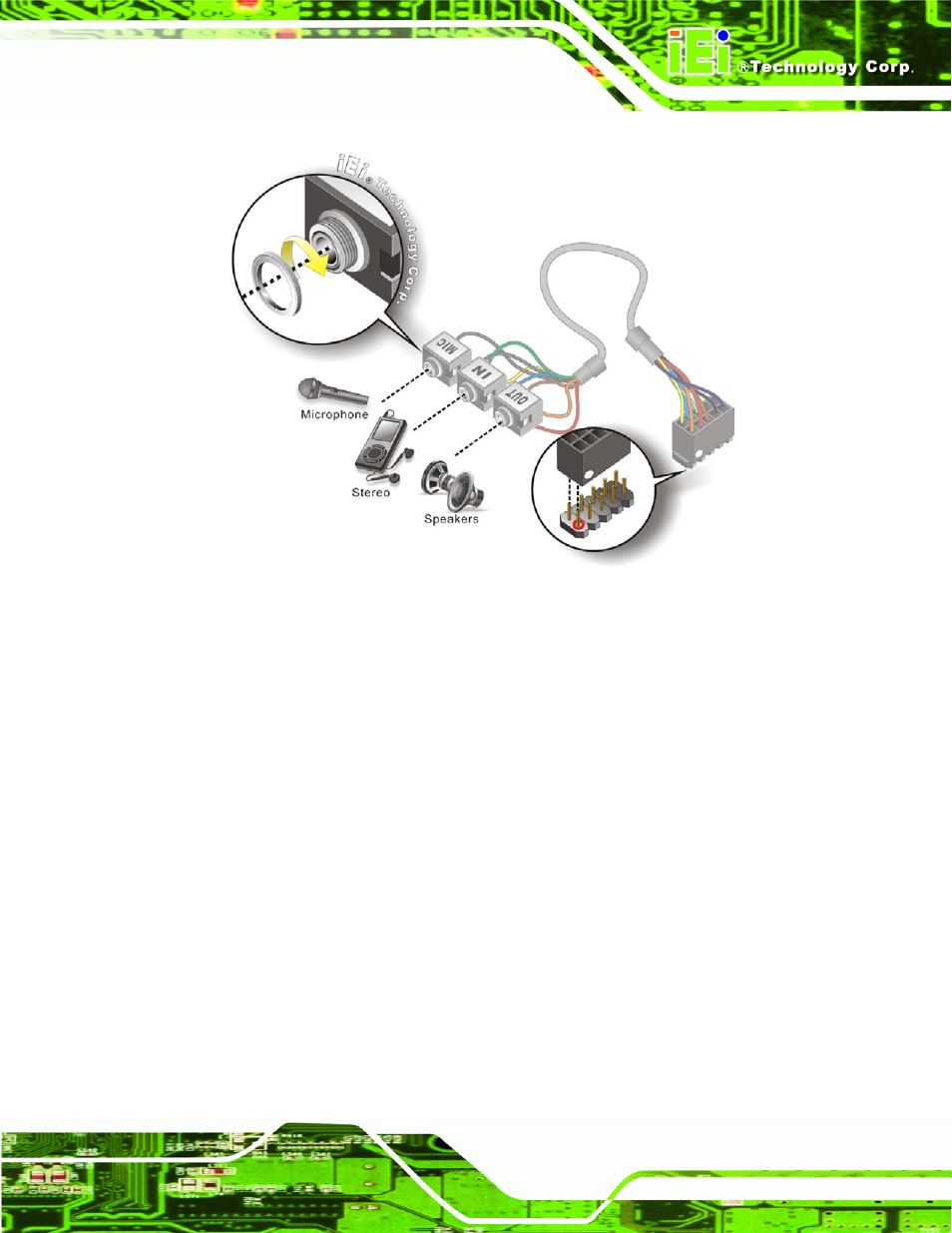

Figure 4-13: Audio Kit Cable Connection

Step 3:

Connect the audio devices. Connect speakers to the line-out audio jack.

Connect the output of an audio device to the line-in audio jack. Connect a

microphone to the mic-in audio jack.

Step 0:

4.7.2 Keyboard/Mouse Connector

The NOVA-HM551 is shipped with a keyboard/mouse Y-cable connector. The

keyboard/mouse Y-cable connector connects to a keyboard/mouse connector on the

NOVA-HM551 and branches into two cables that are each connected to a PS/2 connector,

one for a mouse and one for a keyboard. To connect the keyboard/mouse Y-cable

connector, please follow the steps below.

Step 1:

Locate the connector. The location of the keyboard/mouse Y-cable connector

is shown in Chapter 3.

Step 2:

Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on

the NOVA-HM551 keyboard/mouse connector. See Figure 4-14.
