NOVA-HM551 5.25" SBC
Page 42
NOTE:
The Intel® HD Graphics is NOT integrated in all the Intel® Core™ i7 Desktop
processor family and Intel® Core™ i5-700 series processor. An additional
graphic card must be installed in order to support display output. Otherwise, the
display will show “No display output” when connected to the on-board VGA port.
Reference Intel® Core ™ i3 Desktop CPU:
http://ark.intel.com/ProductCollection.aspx?familyID=43129&MarketSegment=DT
Intel® Core ™ i5 Desktop CPU:
http://ark.intel.com/ProductCollection.aspx?familyID=42912&MarketSegment=DT
Intel® Core ™ i7 Desktop CPU:
http://ark.intel.com/ProductCollection.aspx?familyID=28037&MarketSegment=DT
3.3 External Peripheral Interface Connector Panel
6

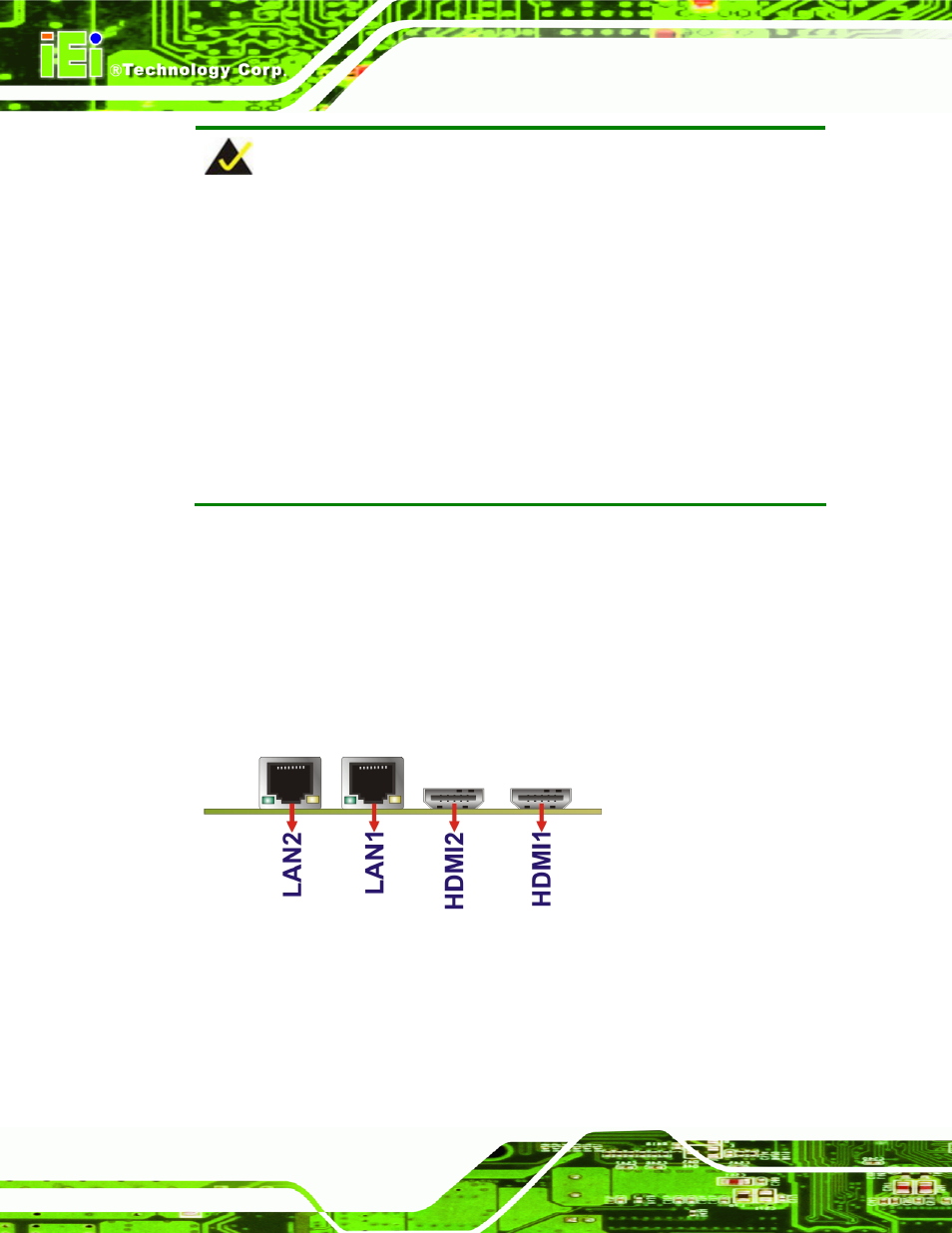

Figure 3-25 shows the NOVA-HM551 external peripheral interface connector (EPIC)
panel. The NOVA-HM551 EPIC panel consists of the following:
ƒ 2 x Ethernet connectors
ƒ 2 x HDMI connectors
Figure 3-25: NOVA-HM551 External Peripheral Interface Connector
