Page 81

NOVA-HM551 5.25" SBC

Page 67

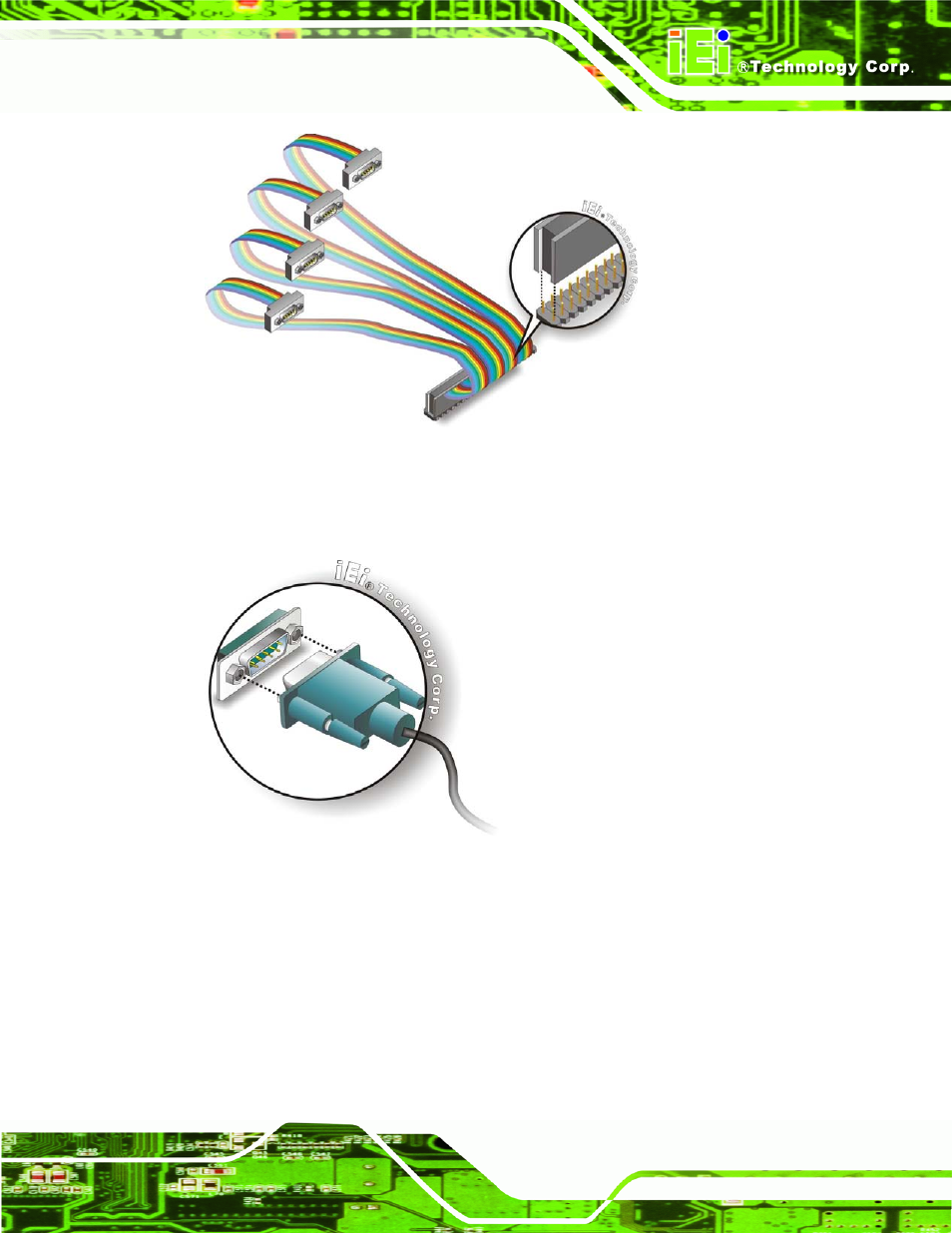

Figure 4-17: Four Serial Port Connector

Step 3:

Secure the serial ports to the chassis. Tighten the screws on the DB-9

connectors to secure them to the chassis.

Step 0:

Figure 4-18: Serial Device Connector

4.7.6 USB Cable

The NOVA-HM551 is shipped with a dual port USB 2.0 cable. To connect the USB cable

connector, please follow the steps below.

Step 1:

Locate the connectors. The locations of the USB connectors are shown in

Chapter 3.
