NANO-PV-D4252/N4552/D5252 EPIC SBC
Page 47

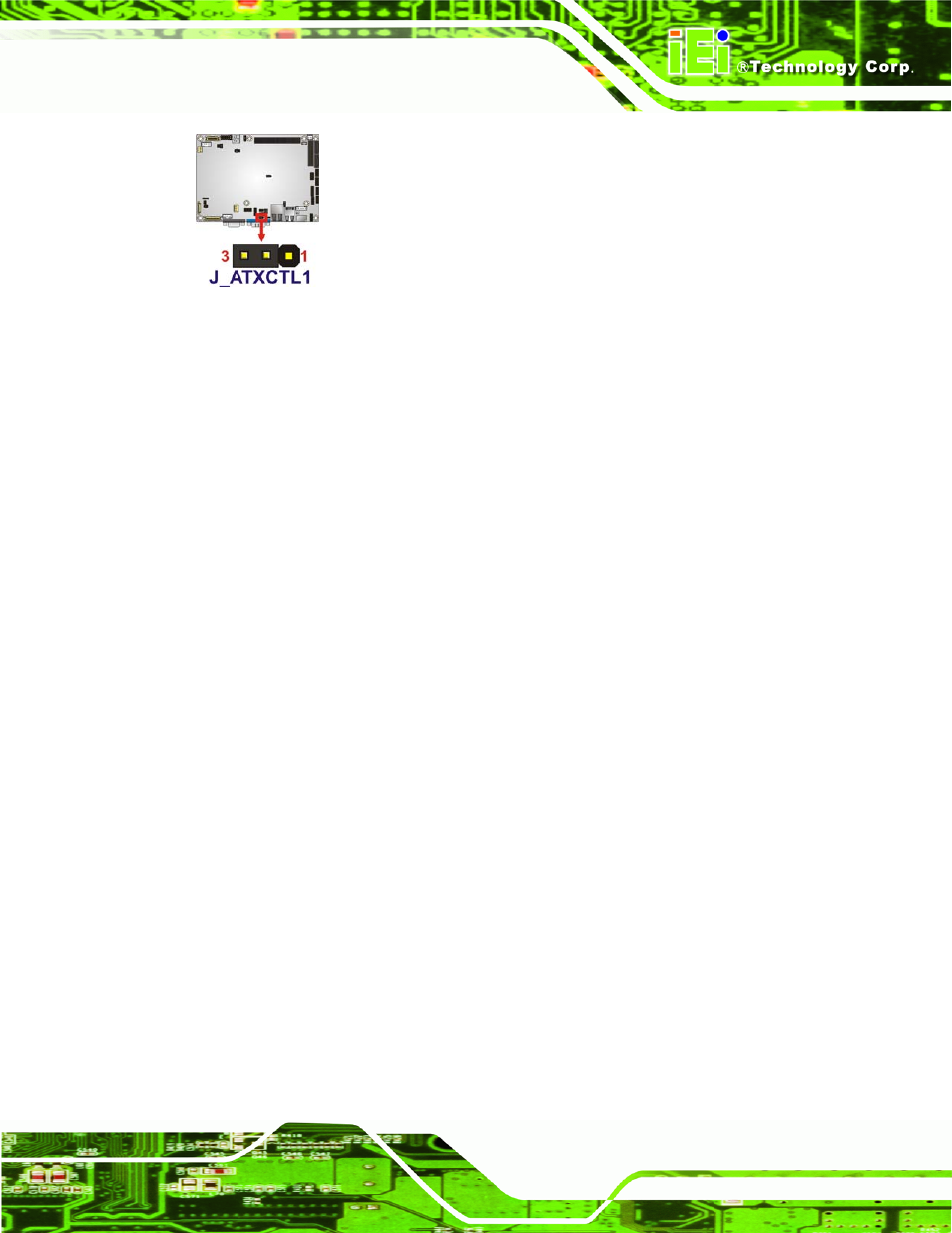

Figure 4-3: AT/ATX Power Select Jumper Location
4.5.3 Clear CMOS Jumper
Jumper Label: J_CMOS1
Jumper Type: 3-pin header (1x3)
Jumper Settings: See
6
Table 4-4
Jumper Location: See
6
Figure 4-4
If the NANO-PV-D4252/N4552/D5252 fails to boot due to improper BIOS settings, the
clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do
this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper
clip back to pins 1 and 2.
If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault
may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the
following:
 Enter the correct CMOS setting
 Load Optimal Defaults
 Load Failsafe Defaults.
After having done one of the above, save the changes and exit the CMOS Setup menu.
The clear CMOS jumper settings are shown in
6
Table 4-4.
