NANO-PV-D4252/N4552/D5252 EPIC SBC

Page 25

The LVDS2 connector is for an LCD panel connected to the board.

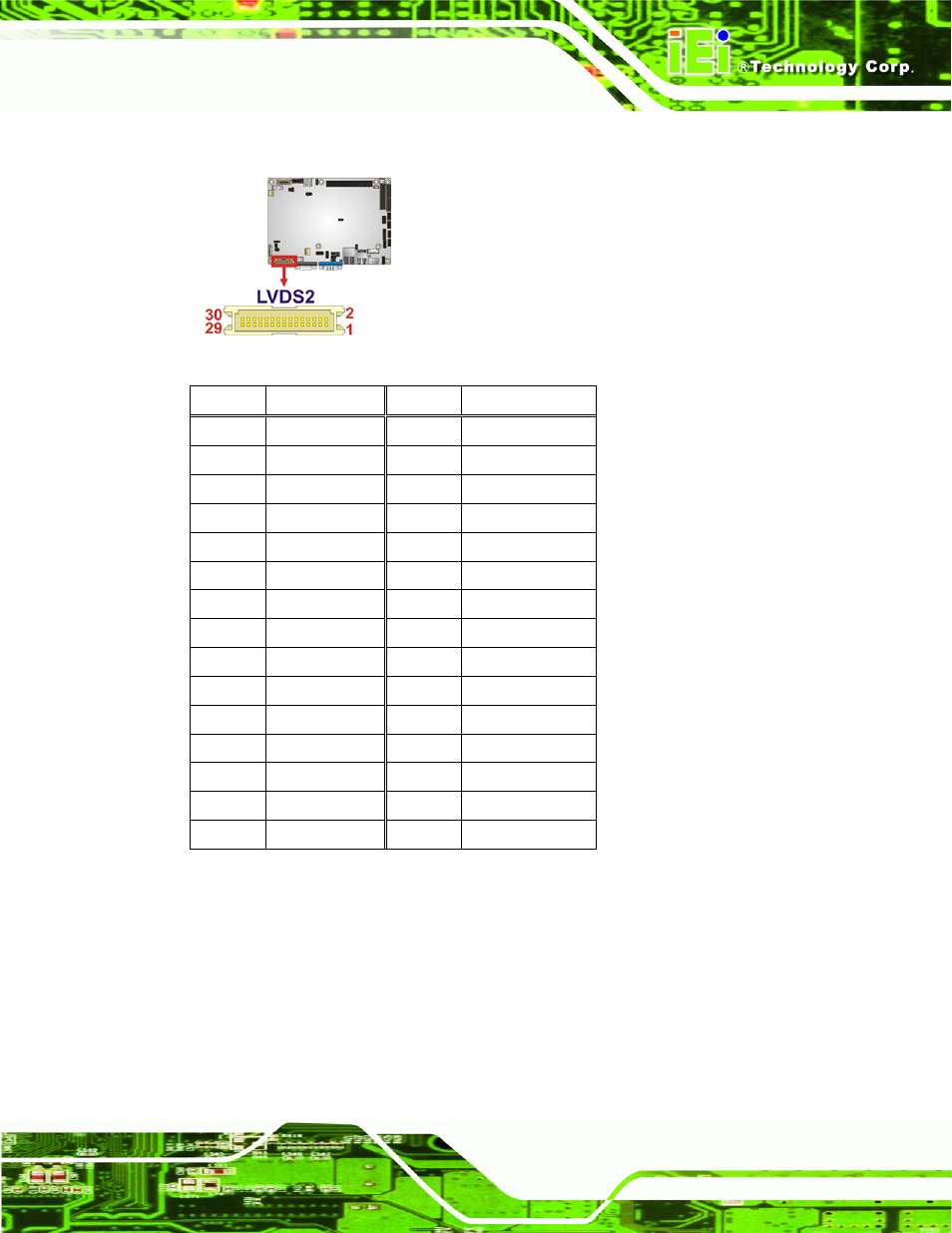

Figure 3-13: LVDS2 Connector Location

Pin Description

Pin Description

1 GROUND 2 GROUND

3 LVDSA_Y0+

4 LVDSA_Y0-

5 LVDSA_Y1+

6 LVDSA_Y1-

7 LVDSA_Y2+

8 LVDSA_Y2-

9 LVDSA_CLK+

10

LVDSA_CLK-

11 LVDSA_Y3+

12 LVDSA_Y3-

13 GROUND 14 GROUND

15 LVDSB_Y0+

16 LVDSB_Y0-

17 LVDSB_Y1+

18 LVDSB_Y1-

19 LVDSB_Y2+

20 LVDSB_Y2-

21 LVDSB_CLK+

22 LVDSB_CLK-

23 LVDSB_Y3+

24 LVDSB_Y3-

25 GROUND 26 GROUND

27 VCC_LVDS 28 VCC_LVDS

29 VCC_LVDS 30 VCC_LVDS

Table 3-14: LVDS2 Connector Pinouts

3.2.13 Parallel Port Connector

CN Label:

LPT1

CN Type:

26-pin box header

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-15
