NANO-PV-D4252/N4552/D5252 EPIC SBC
Page 36
3.3 External Peripheral Interface Connector Panel
6
Figure 3-25 shows the NANO-PV-D4252/N4552/D5252 external peripheral interface
connector (EPIC) panel. The NANO-PV-D4252/N4552/D5252 EPIC panel consists of the
following:
 1 x Ethernet connector
 1 x Keyboard/Mouse
 1 x Serial port (RS-232)
 2 x USB connectors
 1 x VGA connector

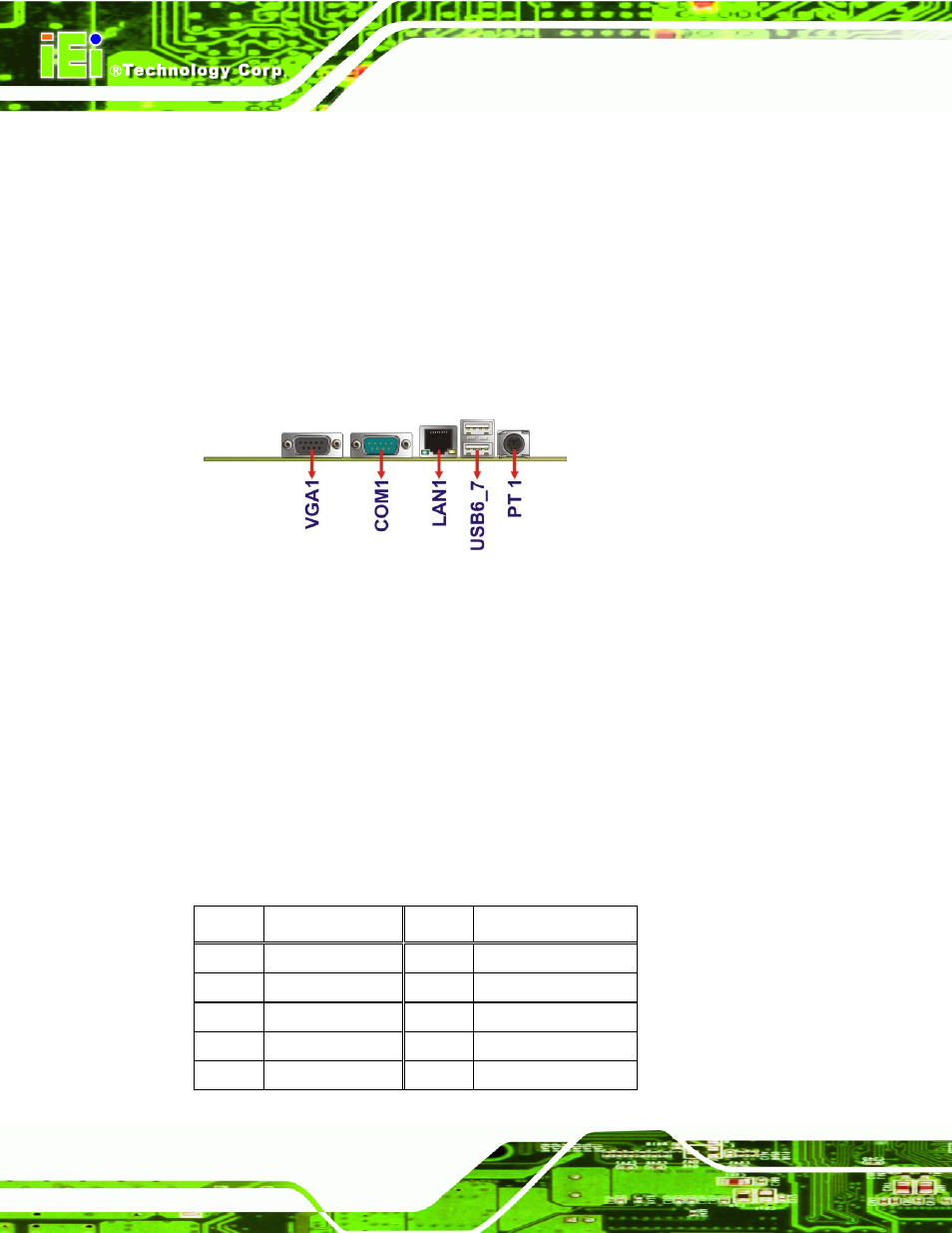

Figure 3-25: NANO-PV-D4252/N4552/D5252 External Peripheral Interface
Connector
3.3.1 Ethernet Connector
CN Label: LAN1
CN Type: RJ-45
CN Location: See
6
Figure 3-25
CN Pinouts: See
6
Table 3-26
The NANO-PV-D4252/N4552/D5252 is equipped with one built-in RJ-45 Ethernet
controller. The controller can connect to the LAN through the RJ-45 LAN connector.
PIN DESCRIPTION PIN DESCRIPTION
1 LAN1_MDI0P 2 LAN1_MDI0N
3 LAN1_MDI1P 4 LAN1_MDI1N
5 +VCT_LAN1 6 GND
7 LAN1_MDI2P 8 LAN1_MDI2N
9 LAN1_MDI3P 10 LAN1_MDI3N
