WARNING:

Do not wipe off (accidentally or otherwise) the pre-sprayed layer of

thermal paste on the bottom of the CF-479B-RS heat sink. The thermal

paste between the CPU and the heat sink is important for optimum

heat dissipation.

To install the CF-479B-RS cooling kit, please follow the steps below.

Step 1:

Place the cooling kit onto the CPU. Make sure the CPU cooling fan cable

can be properly routed when the cooling kit is installed.

Step 2:

Properly align the cooling kit. Make sure its four spring screw fasteners can

pass through the pre-drilled holes on the PCB.

Step 3:

Secure the cooling kit. From the solder side of the PCB, align the support

bracket to the screw threads on heat sink that were inserted through the PCB

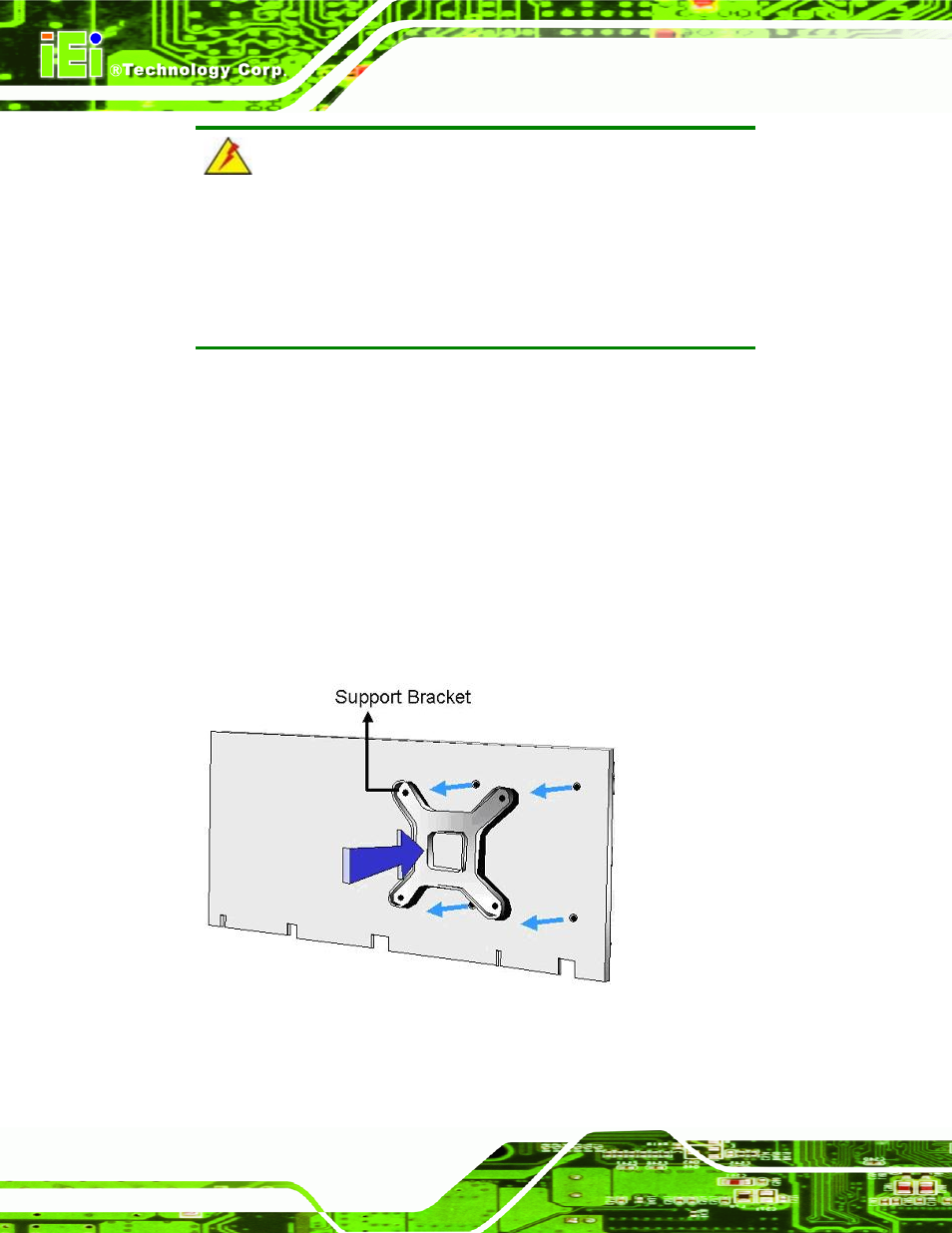

Figure 5-4: Cooling Kit Support Bracket

Step 4:

Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each

nut a few turns at a time and do not over-tighten the screws.
