KINO-9652 Mini-ITX SBC

Page 86

LVDS Resolution Select

Description

Open

640 x 480 (18-bit)

Default

Short 1-2

800 x 600 (18-bit)

Short 3-4

1024 x 768 (18-bit)

Short 1-2 & 3-4

1280 x 1024 (48-bit)

Short 3-4 & 5-6

1600 x 1200 (48-bit)

Short 3-4 & 7-8

1024 x 768 (24-bit)

Table 5-7: LVDS Resolution Selection Jumper Settings

The LVDS Voltage Selection jumper location is shown in Figure 5-12.

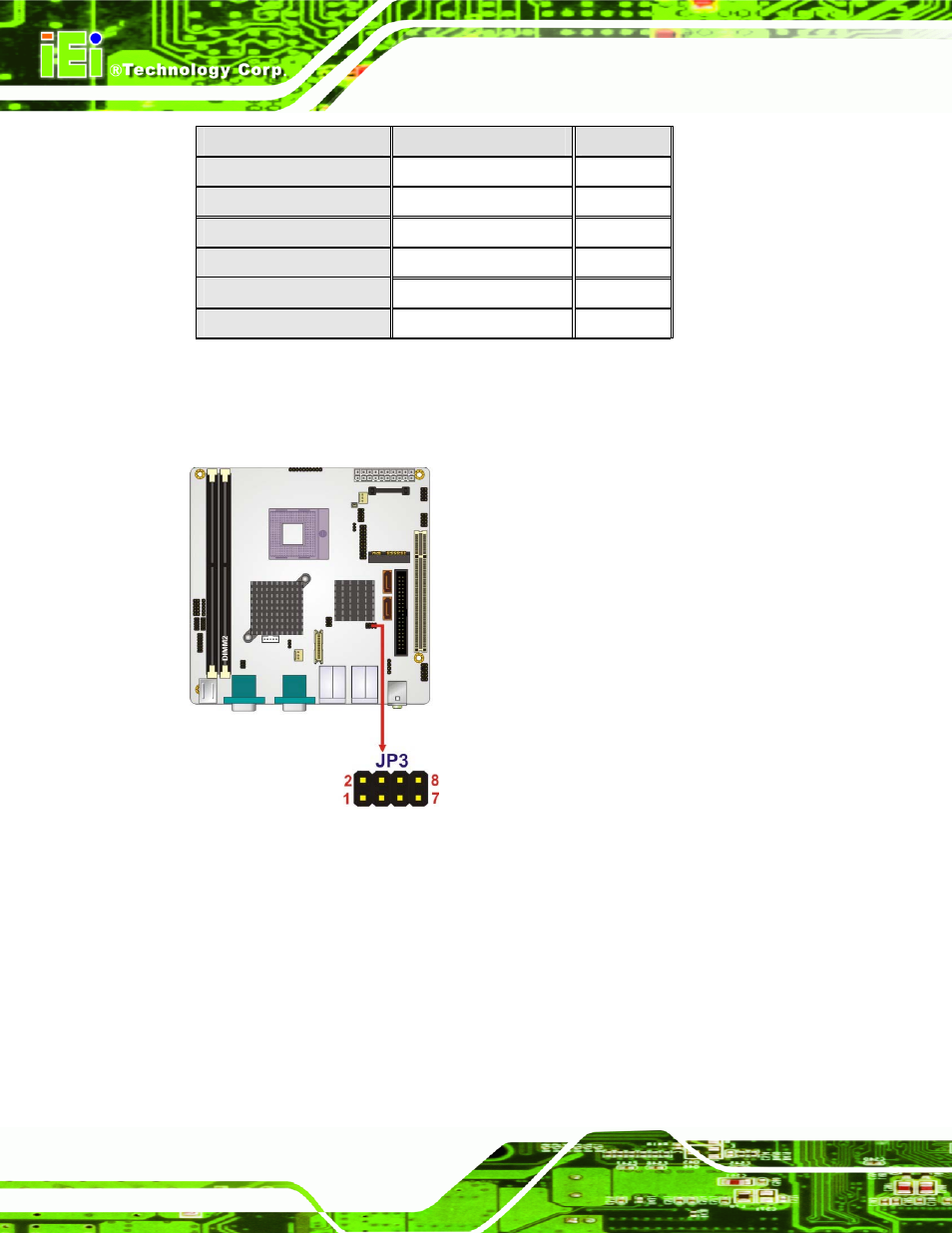

Figure 5-12: LVDS Resolution Selection Jumper Pinout Locations

5.4.6 CF Card Setup

Jumper Label:

JCF1

Jumper Type:

2-pin header

Jumper Settings:

See Table 5-8

Jumper Location:

See Figure 5-13
