KINO-9652 Mini-ITX SBC

Page 12

2.5.2 Intel® GME965 Front Side Bus (FSB) Support

The Intel® GME965 GMCH supports processors with the following FSB speeds:

533 MHz

667 MHz

800 MHz

The Socket P, Intel® GME965 GMCH and the FSB are shown in Figure 2-4.

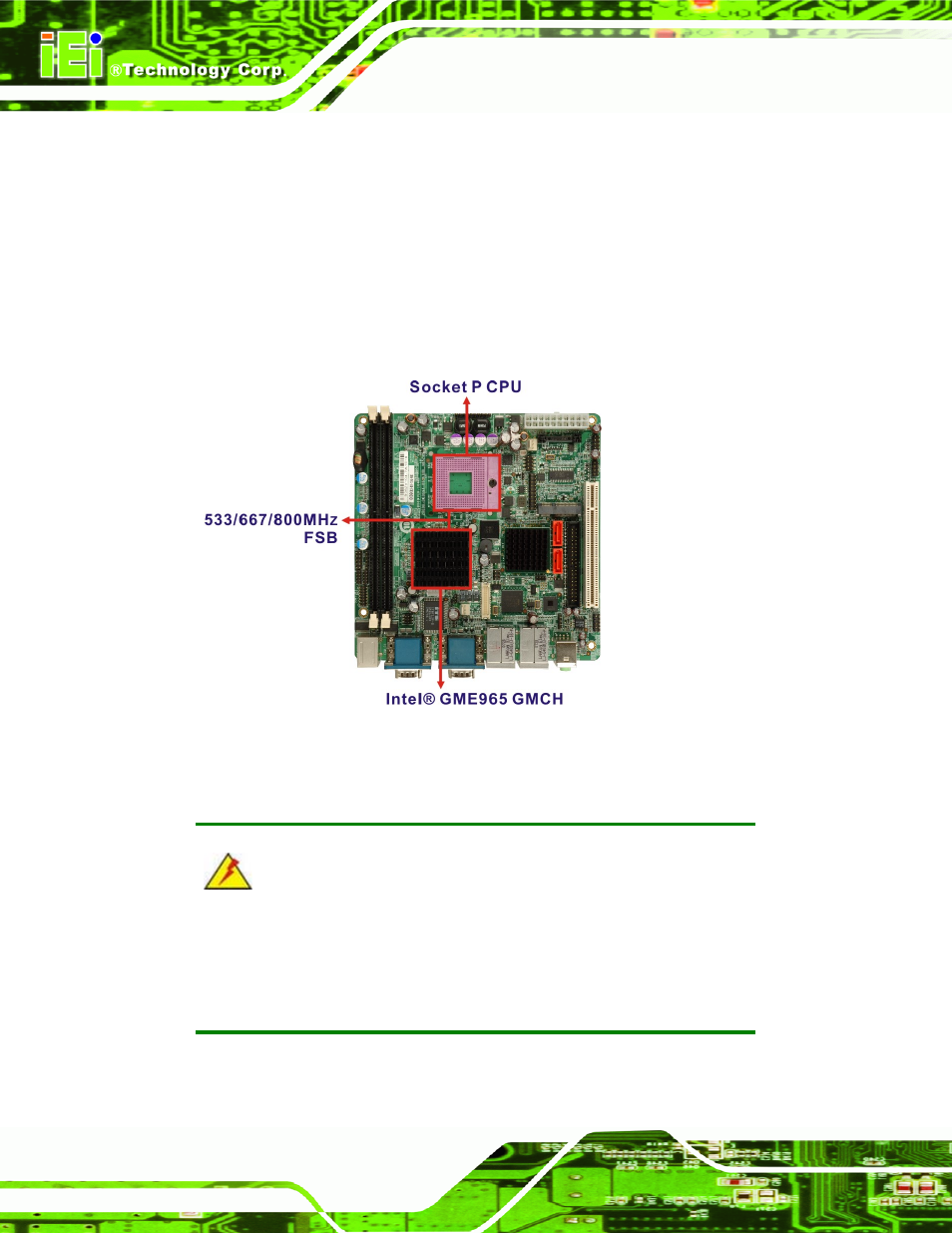

Figure 2-4: Front Side Bus (FSB)

2.5.3 Intel

®

GME965 Memory Support

WARNING:

Only DDR2 memory module can be installed on the KINO-9652. Do not

install DDR memory modules. If a DDR memory module is installed on

the KINO-9652, the KINO-9652 may be irreparably damaged.
