o Enhanced DMA controller
o Interrupt controller
o Timer functions
Integrated SATA host controller with DMA operations interfaced to two SATA
connectors on the KINO-9652
Supports the eight USB 2.0 devices on the KINO-9652 with four UHCI
controllers and one EHCI controller
Complies with System Management Bus (SMBus) Specification, Version 2.0
Supports Intel® High Definition Audio
Contains Low Pin Count (LPC) interface
Supports Firmware Hub (FWH) interface
Serial Peripheral Interface (SPI) support
2.6.2 Intel
®
ICH8ME HD Audio Controller
The HD Audio controller integrated into the ICH8ME complies with the Intel High Definition
Audio specification.

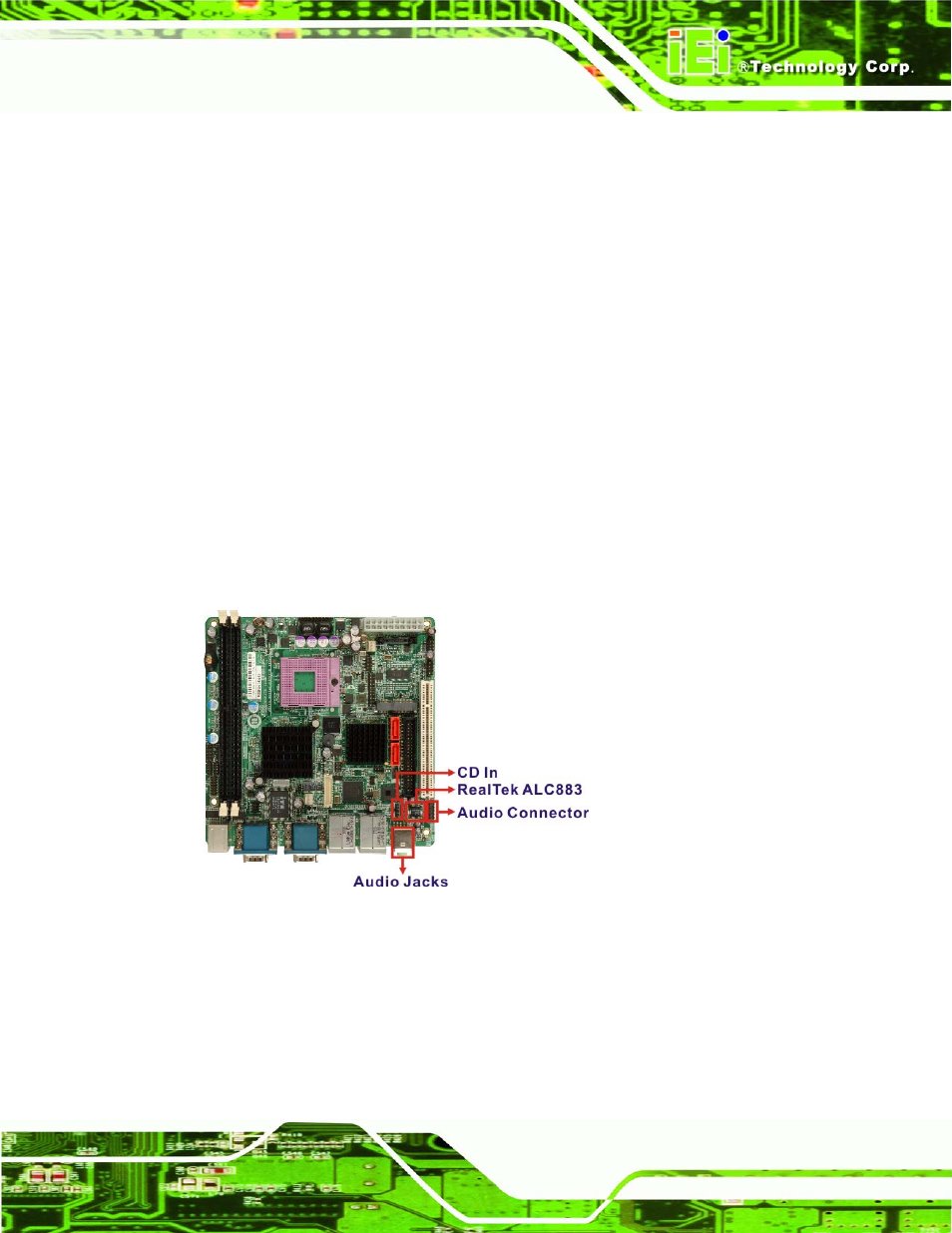

Figure 2-8: HD Audio Codec
The HD audio controller is connected to the external peripheral interface controllers
through the integrated ALC883 HD Audio Codec. High Definition Audio supports up to
eight audio channels at 192 KHz/32-bit quality and dual channel audio, allowing two
different audio streams simultaneously. Features include:
