KINO-9652 Mini-ITX SBC
Page 19
ACPI register set and power down functionality supporting D0 & D3 states.
Full wake-up support (ACPI).
Magic Packet wake-up enable with unique MAC address.
Fragmented UDP checksum off load for package reassembly.
2.6.3.1 Intel® 82566MM Gigabit LAN Connect Device
One of the external RJ-45 Ethernet LAN connectors is interfaced to an Intel® 82566MM
Gigabit LAN connect device. The Intel® 82566MM is a compact, single-port integrated
physical layer (PHY) device interfaced directly to the Intel® ICH8ME Ethernet controller
through the GLCI. The Intel® ICH8ME Ethernet controller has its own Media Access
Controller (MAC). The Intel® 82566MM Gigabit LAN connect device is shown in Figure
2-9.

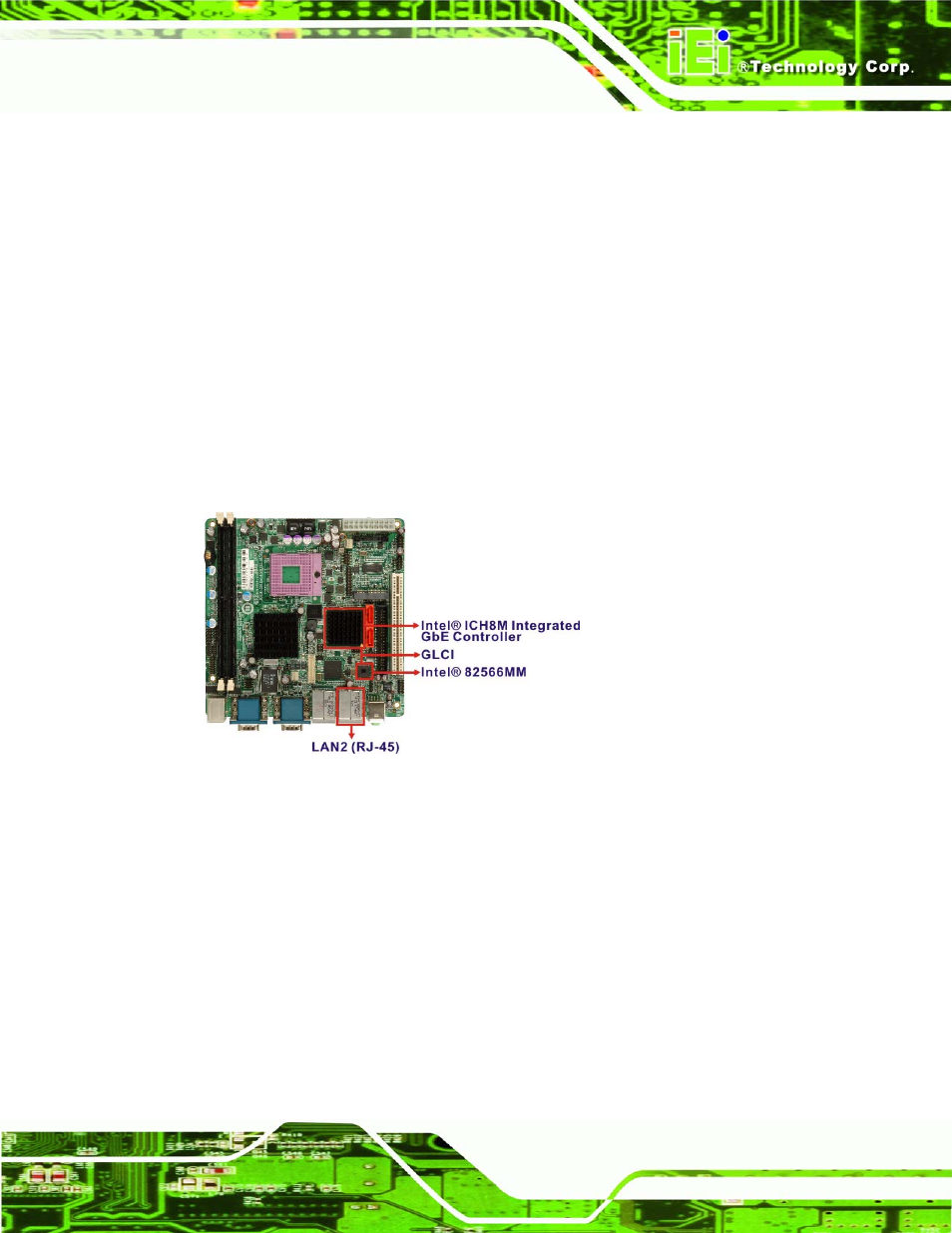

Figure 2-9: Intel® 82566MM Gigabit LAN Connect Device
2.6.4 Intel
®
ICH8ME IDE Interface
The integrated IDE interface on the ICH8ME supports two IDE hard disks and ATAPI
devices. PIO IDE transfers up to 16 MB/s and Ultra ATA transfers of 100MB/s. The
integrated IDE interface is able to support the following IDE HDDs:
Ultra ATA/100, with data transfer rates up to 100 MB/s
Ultra ATA/66, with data transfer rates up to 66 MB/s
Ultra ATA/33, with data transfer rates up to 33 MB/s
