KINO-9652 Mini-ITX SBC

Page 67

5 L_KCLK 11

L_MCLK

6 NC

12

NC

Table 4-22: PS/2 Connector Pinouts

4.3.5 Serial Port Connectors

CN Label:

VGA1_COM1 and COM_C1

CN Type:

DB-9

CN Location: See

Figure 4-19

CN Pinouts: See

Table 4-23

The serial ports can be connected to a serial communications device directly.

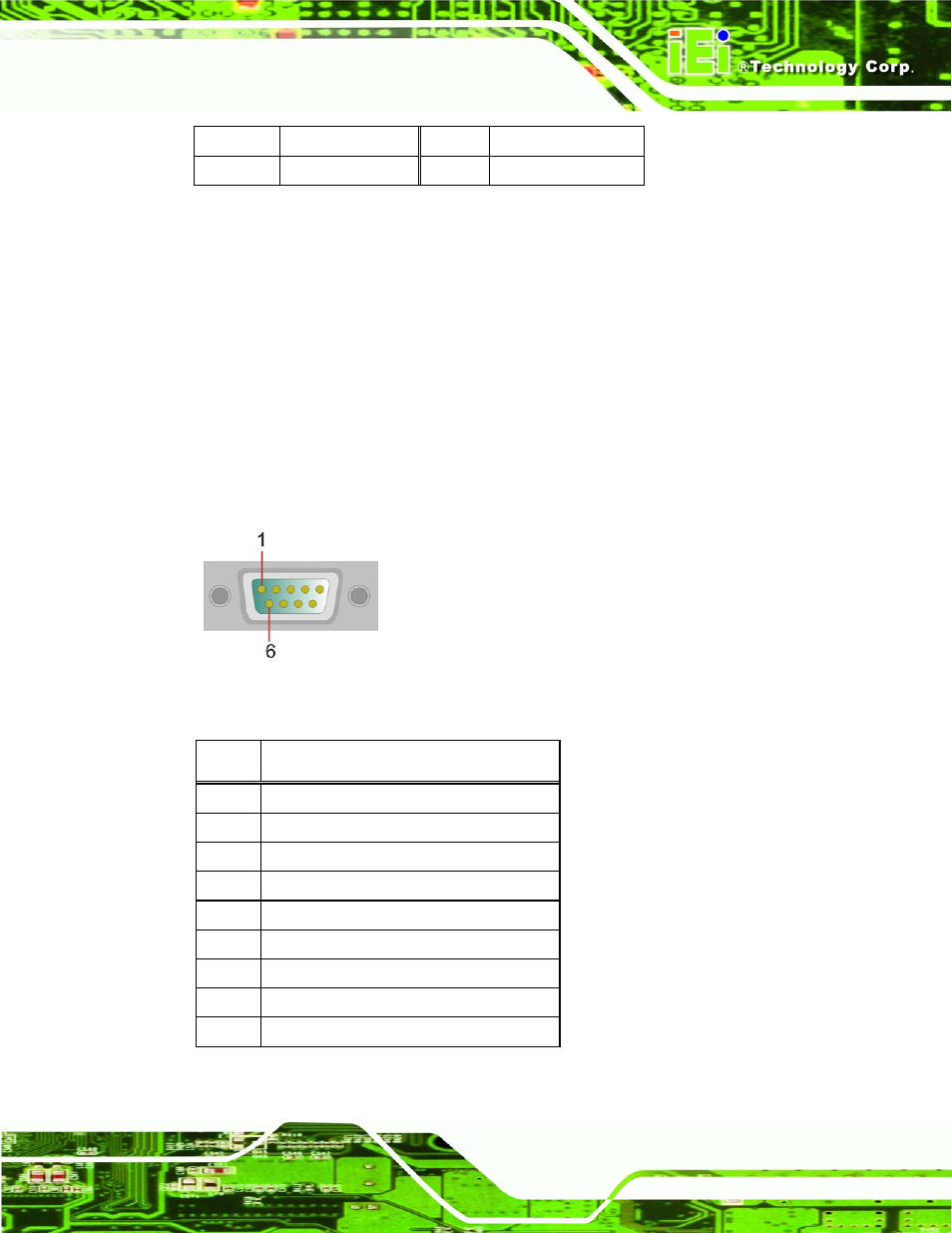

Figure 4-24: External Serial Port Connector

PIN Description

1

DATA CARRIER DETECT (DCD)

2

RECEIVE DATA (RXD)

3

TRANSMIT DATA (TXD)

4

DATA TERMINAL READY (DTR)

5 GROUND

(GND)

6

DATA SET READY (DSR)

7 REQUEST

TO

SEND

(RTS)

8

CLEAR TO SEND (CTS)

9 RING

INDICATOR

(RI)

Table 4-23: External Serial Port Pinouts
