KINO-9652 Mini-ITX SBC

Page 53

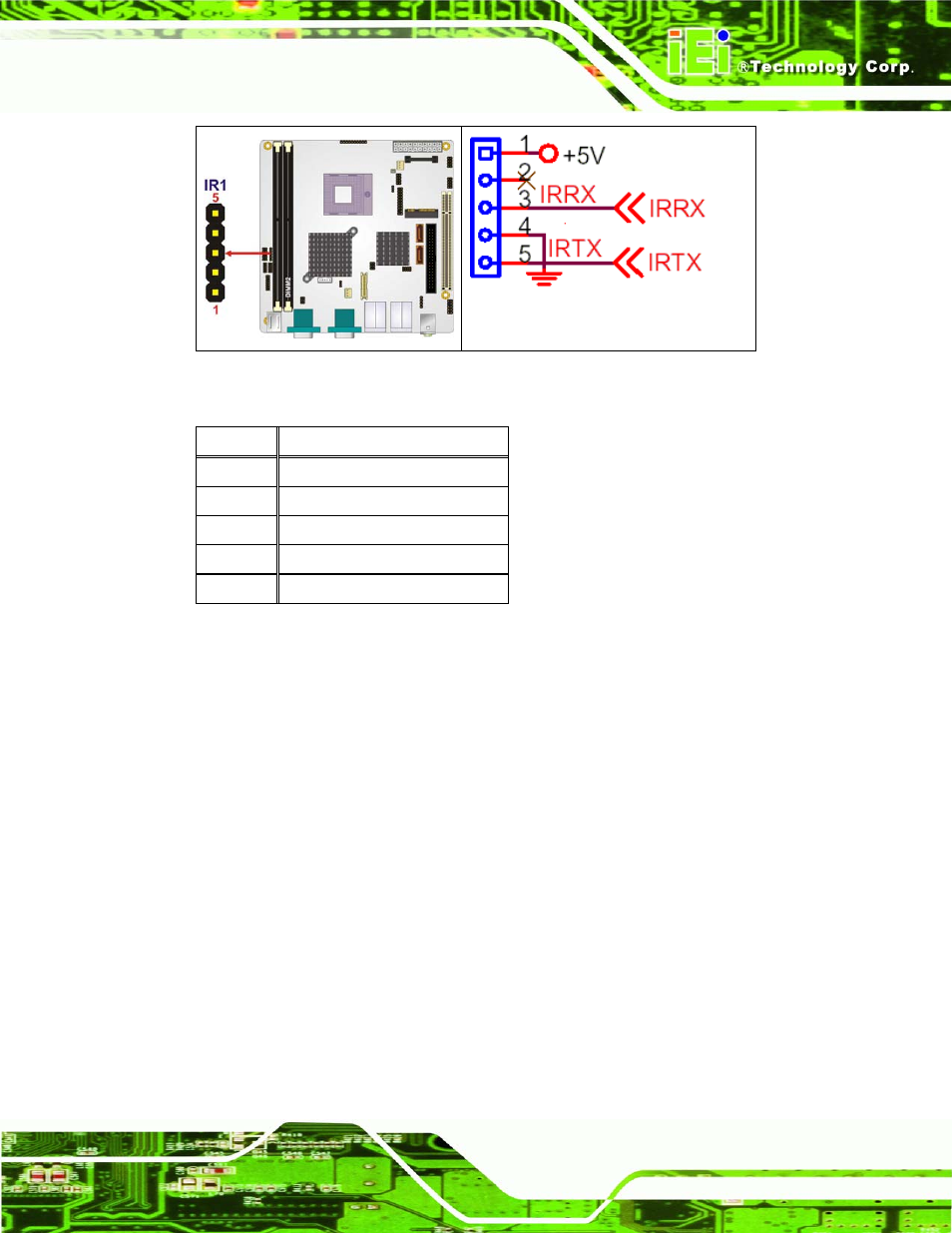

Figure 4-10: Infrared Connector Pinout Locations

PIN NO.

DESCRIPTION

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

Table 4-11: Infrared Connector Pinouts

4.2.10 LCD Backlight Connector

CN Label:

INVERTER1

CN Type:

5-pin wafer connector (1x5)

CN Location: See

Figure 4-11

CN Pinouts: See

Table 4-12

The LCD backlight connector is for the LCD inverter connection.
