KINO-9652 Mini-ITX SBC

Page 14

WARNING:

Before removing the DDR2 DRAM module, make sure the AC power is

completely turned off. Incorrect usage may cause permanently damage

to the KINO-9652 or the DRAM module. This is because the

KINO-9652 supports iAMT feature and need to provide power to the

DRAM module when the KINO-9652 is off.

2.5.4 Intel

GME965 Integrated Graphics

The Intel® GME965 GMCH has an mobile Intel

Graphics Media Accelerator X3100

integrated graphics engine that supports the following display devices:

Analog CRT

LVDS

Analog TV-Out

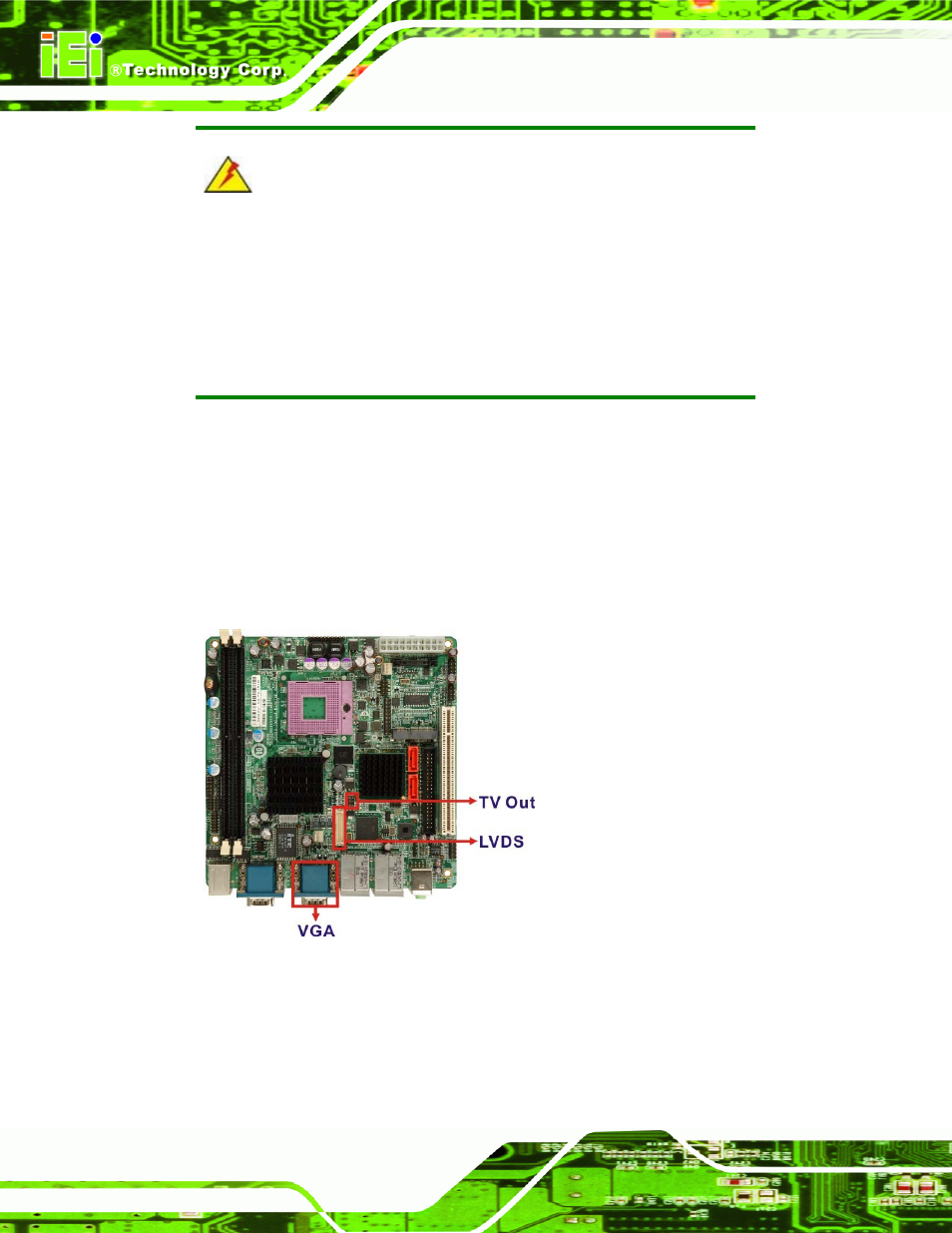

Figure 2-6: Integrated Graphics Interfaces

2.5.4.1 Intel

GME965 Analog CRT Support

A DB-15 VGA connector on the external peripheral interface connector panel is interfaced

to the Intel

GME965 graphics engine. The Intel

GME965 internal graphics engine, with
