PCIE-Q350 PICMG 1.3 CPU Card
Page 36
2.8.3 Super I/O chipset
The ITE IT8718F Super I/O chipset is connected to the Intel® ICH9DO Southbridge
through the LPC bus. ITE IT8718F Super I/O chipset is shown in Figure 2-20 below.

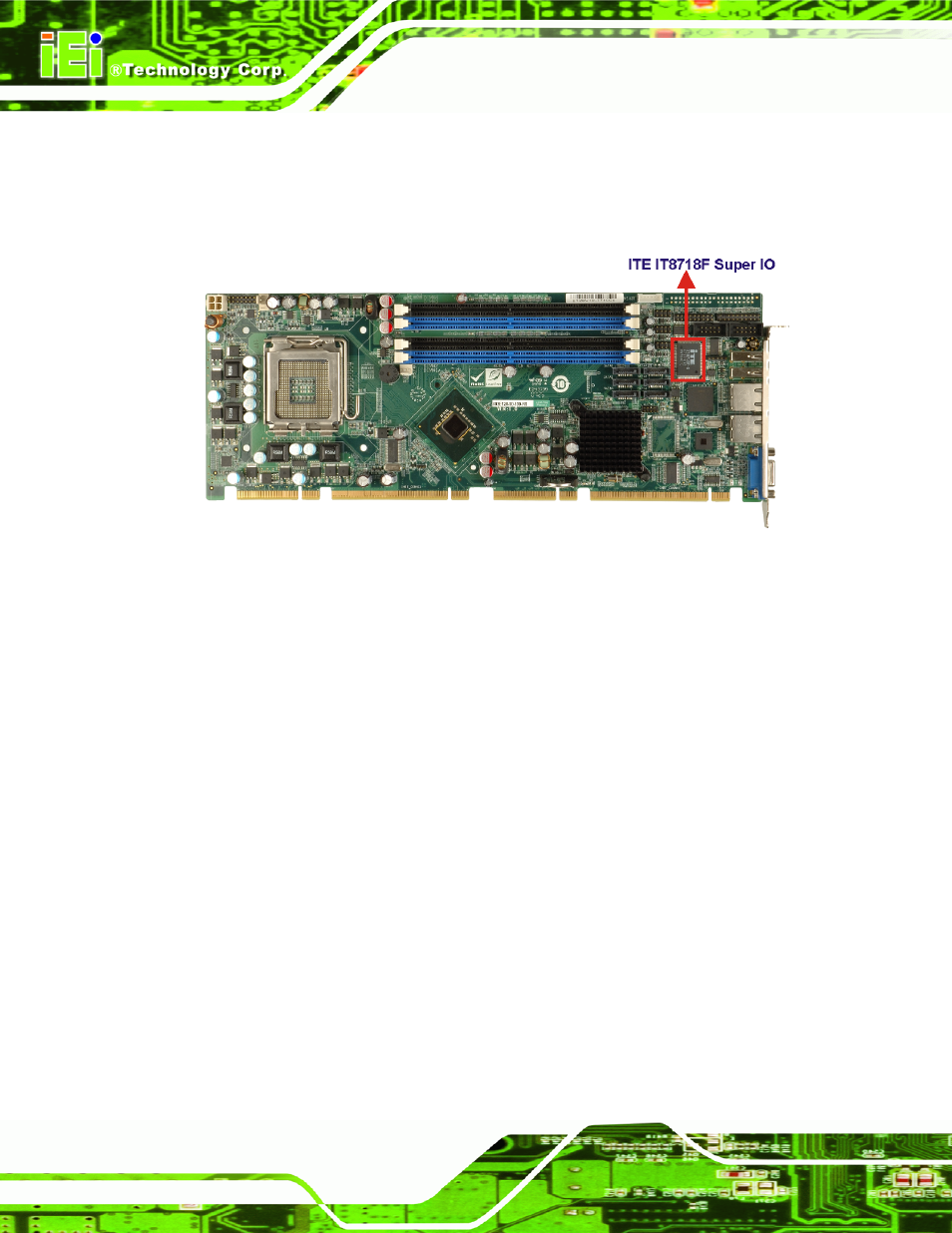

Figure 2-20: ITE IT8718F Super I/O
The ITE IT8718F is an LPC interface-based Super I/O device that comes with an
integrated Environment Controller. Some of the features of the iTE IT8718F chipset are
listed below:
PC98/99/2001, ACPI and LANDesk Compliant
Enhanced Hardware Monitor
Fan Speed Controller
Multi curve for one fan control
Multi sensor for one fan control
Single +5V Power Supply
Two 16C550 UARTs for serial port control
Keyboard Controller
48 General Purpose I/O Pins
Watchdog Timer
Serial IRQ Support
SmartGuardian Controller
ITE automatic power-failure resume and power button debounce
