Removing the Defibrillator Board and Capacitor Bank Modules
9650-0801-01 Rev B ZOLL Propaq MD Service Manual 75

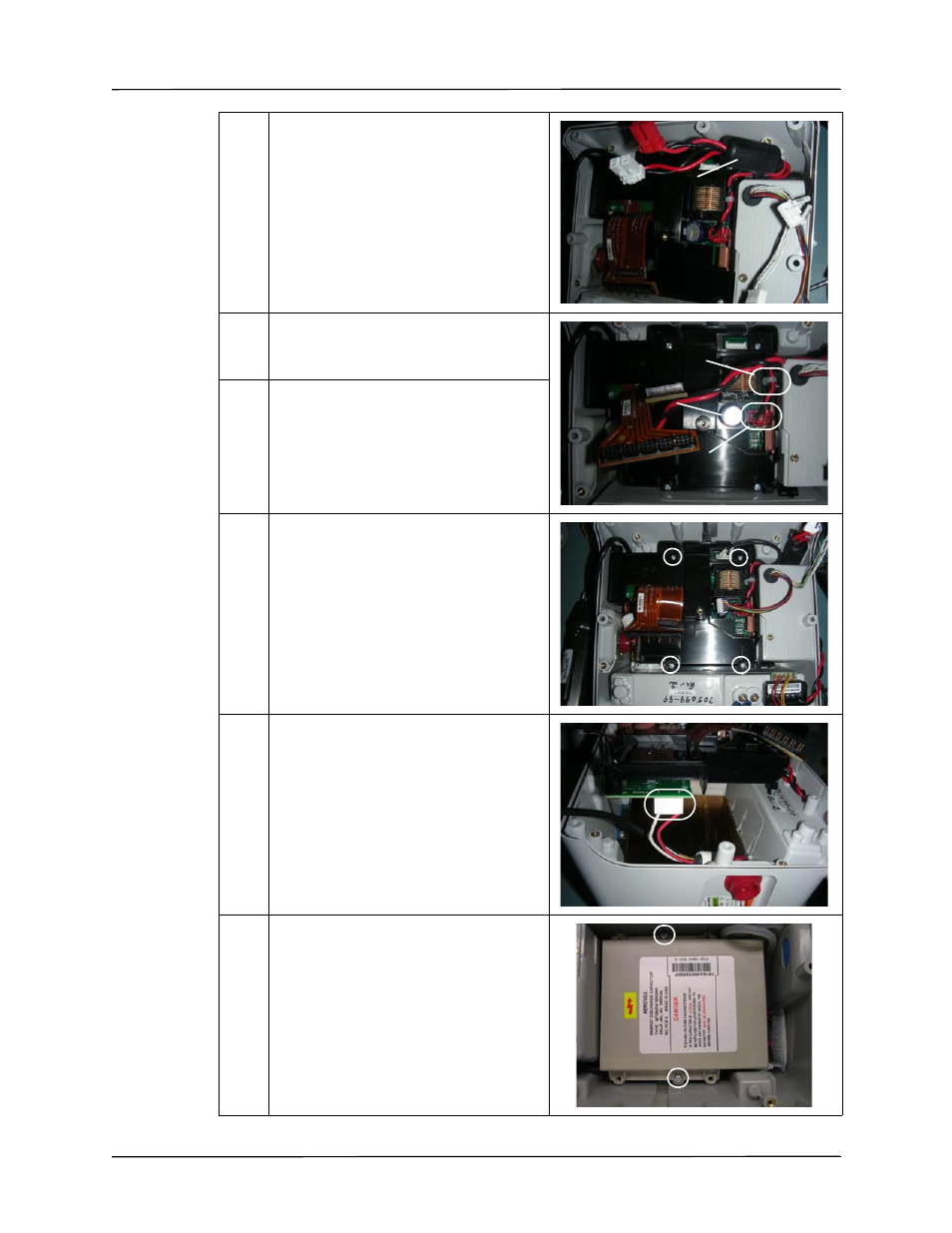

11 Locate the black ferrite. Using the orange
stick, pull the ferrite cover apart and untwist
the couple.
12 Cut the tie wrap securing the black and
read coupled wire (in illustrated area) to
remove the power cell.
13 Disconnect the black and red wire (via the
red connector) in the area illustrated.
14 Remove four (4) screws in the areas
illustrated.
Note: During reassembly, torque screws to
6 in-lbs.
15 Remove red and white multi-function cable
connector from the ECG board in the area
illustrated.
16 Remove two (2) screws in the areas
illustrated to release the capacitor from the
unit.
ferrite
power cell
tie wrap
red connector
