Removing the display module – ZOLL Propaq MD Rev B User Manual
Page 69
Removing the Display Module
9650-0801-01 Rev B
ZOLL Propaq MD Service Manual
65
Removing the Display Module
Tools Required
•
#1 Phillips screwdriver with torque capability
•
3M copper adhesive tape
•
6mm socket wrench
Setup
•
This procedure should be conducted on a static mat.
•
Wear a wrist strap to ground during the procedure.
•
Complete these procedures in the following order before performing this procedure:
1.
“Disassembling the Main Unit” on page 60
2.
“Removing the Front Enclosure Module” on page 63
To reinstall the display module, reverse the steps.

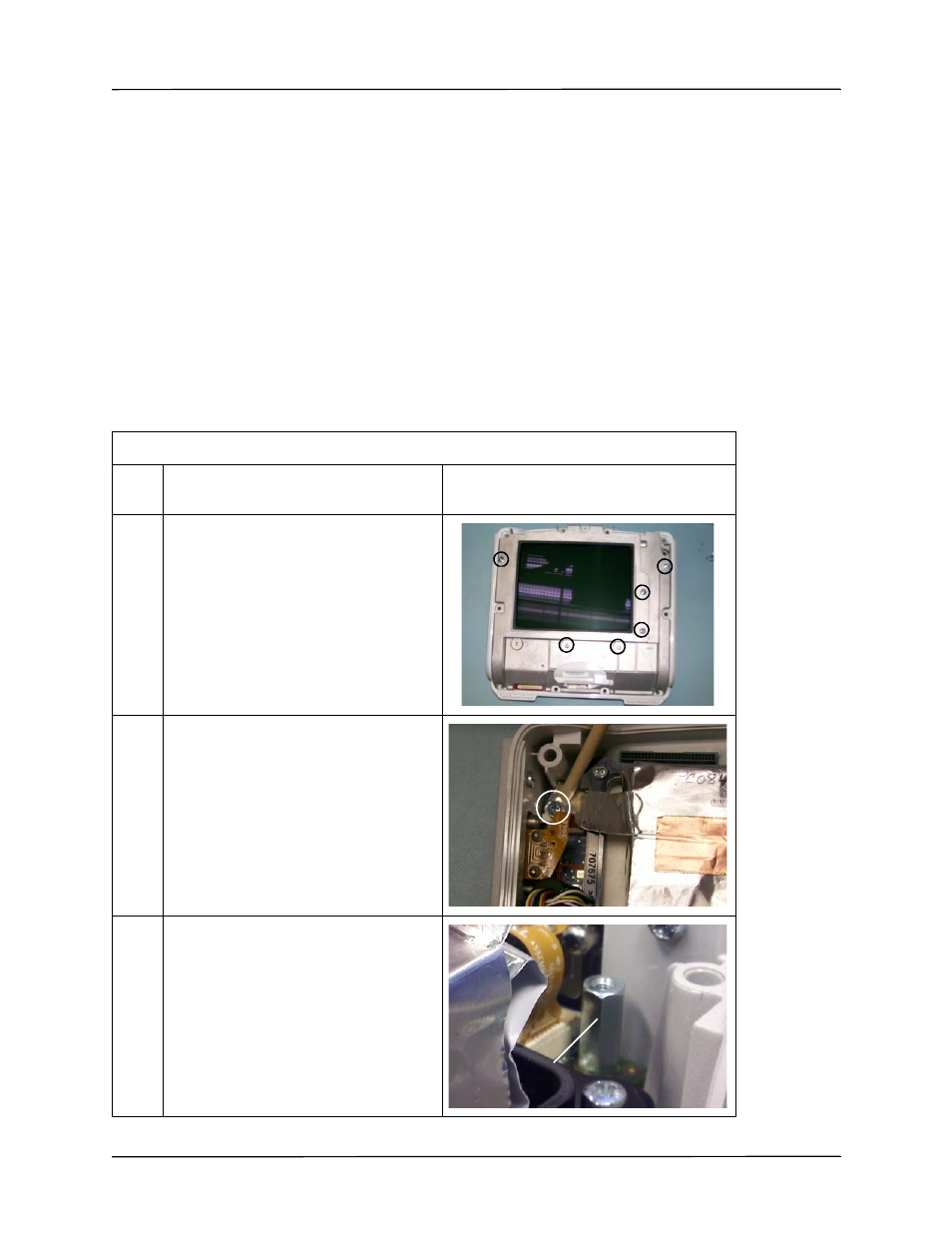

Display Disassembly
1
Place the back of the unit down on the mat
so that the display screen is facing up.
2
Remove the six (6) screws from the front of
the casting in the areas illustrated.
Note: During reassembly, torque screws to
6 in-lbs.
3
Flip the unit over and remove the screw in
the area illustrated.
4
Remove the hex standoff located
underneath the screw you just removed.
Note: During reassembly, torque to
6 in-lbs.
hex standoff
