ZOLL Propaq MD Rev B User Manual
Page 76
72
9650-0801-01 Rev B
3

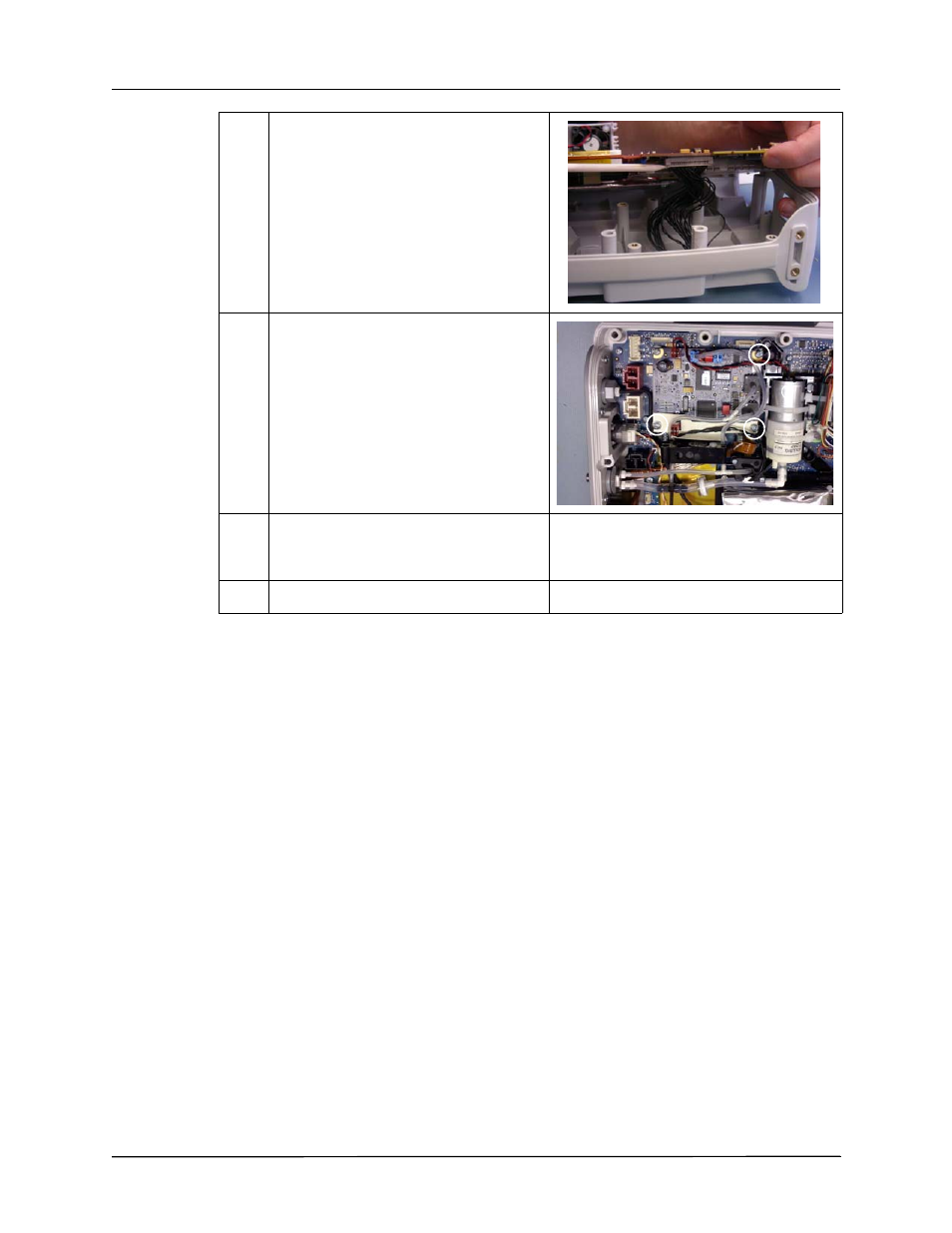

Lift the monitor board to expose the
multi-wire LCD cable on the back side of
monitor board and disconnect it.
4
Remove three (3) screws and washers
from the NIBP unit.
Note: During reassembly, torque screws to
6 in-lbs.
5
Lift the SpO2 unit straight up to disconnect
it from the monitor board and remove it
from the unit.
6
Lift out the monitor board.
