ZOLL Propaq MD Rev B User Manual
Page 78
74
9650-0801-01 Rev B

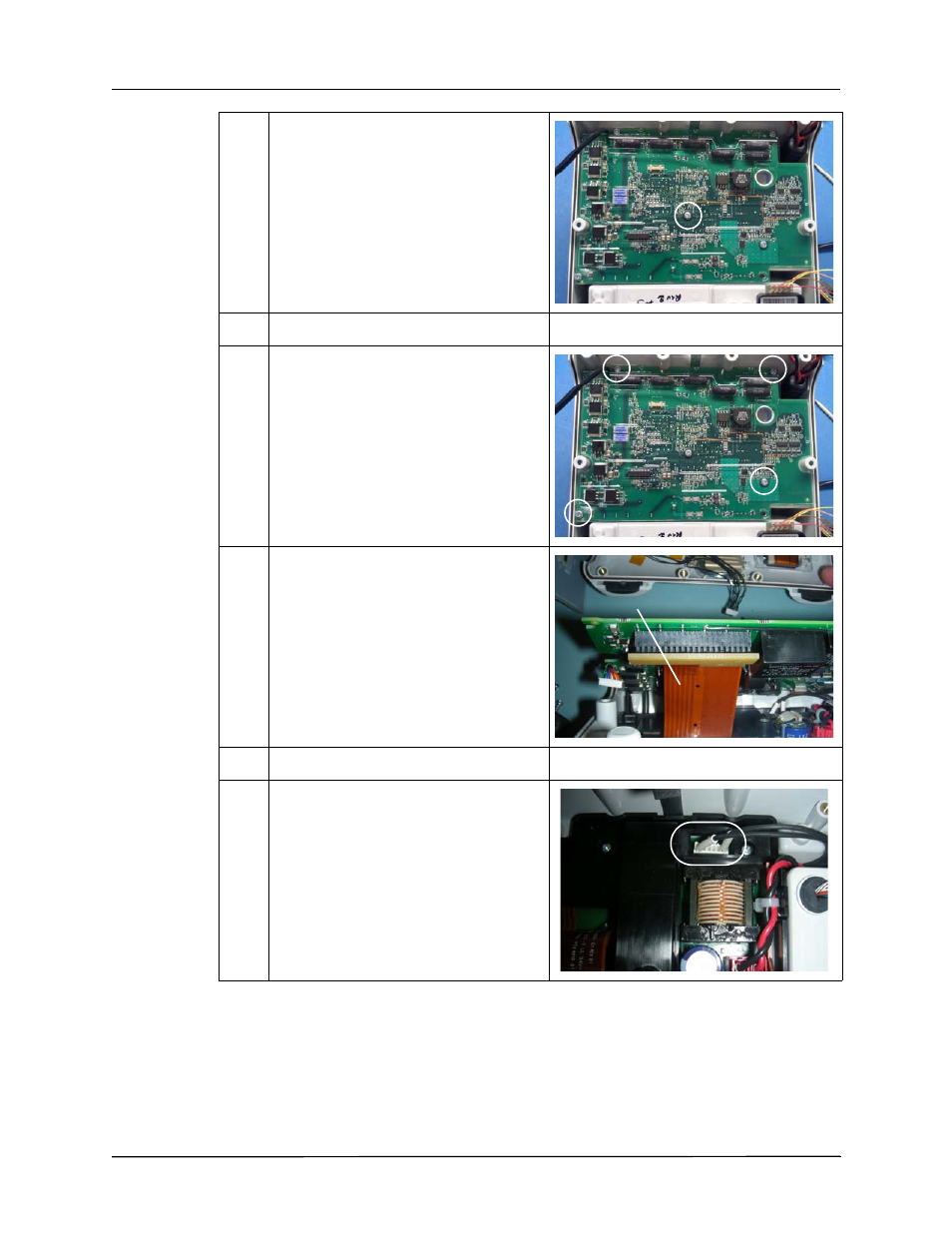

5
Remove screw in the middle of the plastic
isolator (located on top of the processor
board) in the area illustrated.
Note: During reassembly, torque screw to 6
in-lbs.
6
Remove the plastic isolator shield.
7
Remove the four (4) screws in the areas
illustrated.
Note: During reassembly, torque screws to
6 in-lbs.
8
Lift up the processor board and remove the
brown flex cable (there are two
connections).
9
Lift out the processor board.
10
Remove the black cable from the capacitor
in the area illustrated.
brown flex cable
