ZOLL Propaq MD Rev B User Manual
Page 73
Removing the EtCO2 and NIBP Modules
9650-0801-01 Rev B
ZOLL Propaq MD Service Manual
69
9

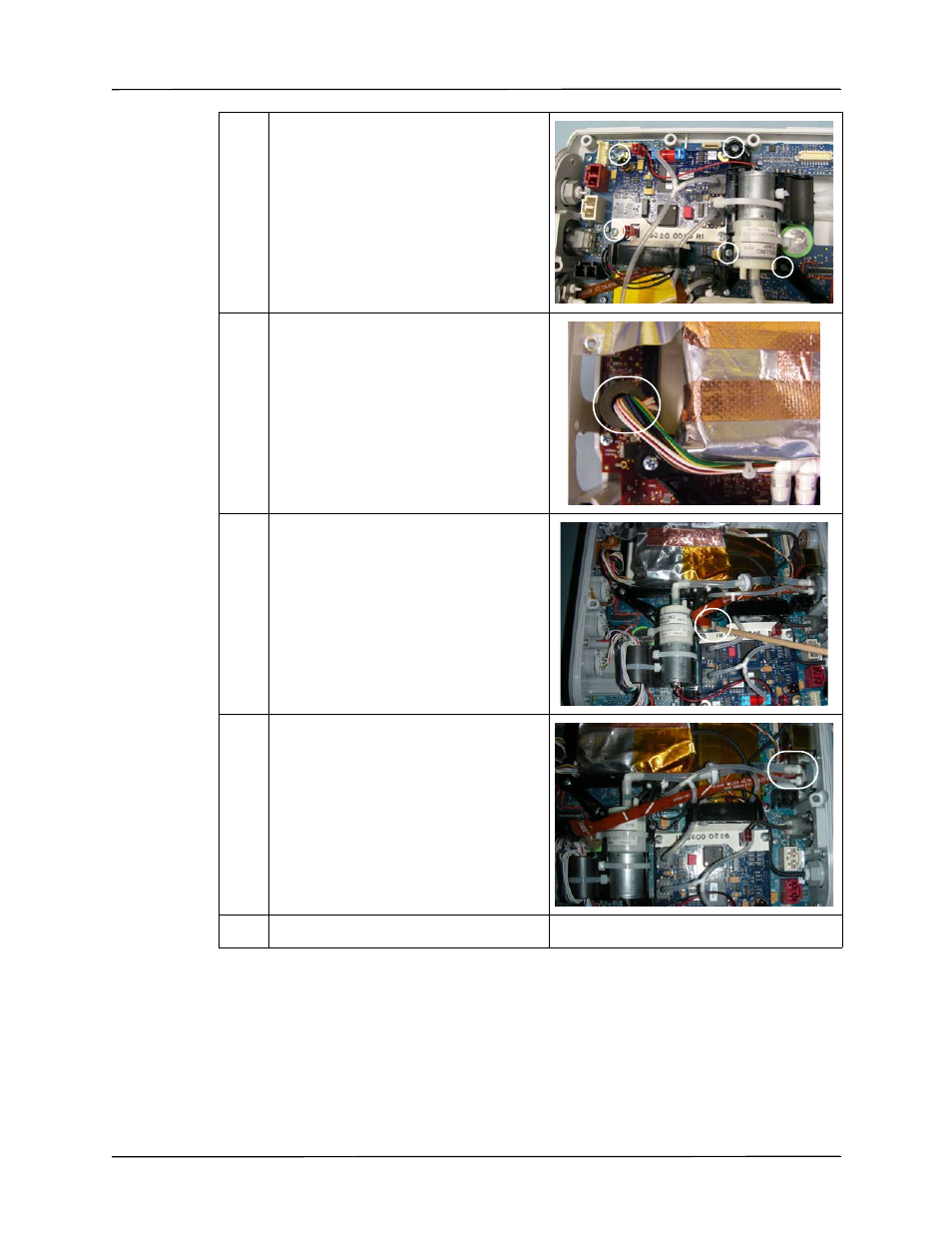

Remove five (5) screws and washers from
the NIBP unit to release it.
Note: During reassembly, torque screws to
6 in-lbs.
10
Remove multi-wire EtCO
2
cable with
ferrite.
11
Disconnect the brown SpO
2
flex cable as
shown.
12
Disconnect the NIBP tubing from the side
panel in the area illustrated.
13
Remove the NIBP module from the unit.
