Removing the Defibrillator Board and Capacitor Bank Modules
9650-0801-01 Rev B ZOLL Propaq MD Service Manual 73
Removing the Defibrillator Board and Capacitor Bank
Modules
Tools Required
• #1 Phillips screwdriver with torque capability
• #2 Phillips screwdriver with torque capability
• 26 mm open end wrench
Setup
• This procedure should be conducted on a static mat.
• Wear a wrist strap to ground during the procedure.
• Complete these procedures in the following order before performing this procedure:
1. “Removing the Handle” on page 57
2. “Removing the Printer Module” on page 58
3. “Disassembling the Main Unit” on page 60
Note: After replacing the Defibrillator Board and/or Capacitor Bank modules, see Chapter 4,
"Resetting Life Cycle Counters" to reset the life cycle counter for the module.
To reinstall the defibrillator board and/or capacitor bank modules, reverse
the steps.

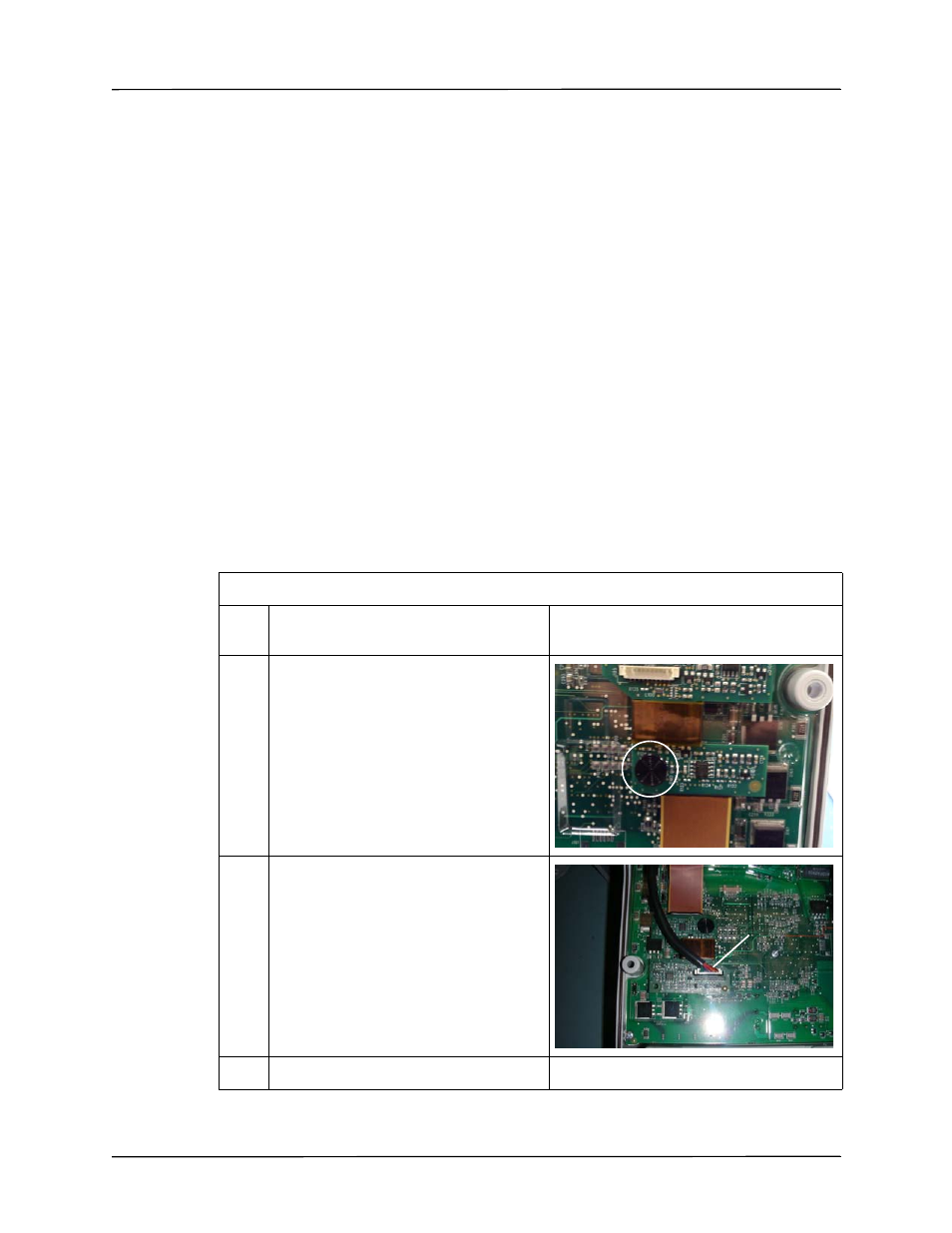

Defibrillator Board and Capacitor Bank Disassembly
1 Lay back end of separated unit down with
opened side facing up.
2 Remove interface board and disconnect
the black cable by pulling the black snap
rivet straight out.
3 Remove the multi-color cable from the
defibrillator board.
4 Pull out small interconnect board.
multi-color cable
