To prevent electric shock, explosion, fire and/or serious personal injury when using saddle box with:
Extension Cord –
• Follow all Extension Cord manufacturer’s warnings and instructions.
• Do NOT insert extension cord through hole without grommet in place (see Figure 4).
• Only use a three-wire extension cord with all three prongs intact. Never remove the round grounding prong.
• Extension cord must be connected to a 120 Volt GFCI (ground fault circuit interrupter) protected outlet with proper ground.
If GFCI outlet is not available, use an extension cord with GFCI protection built in.
• Check the insulation and plugs of extension cord before using. Do NOT use cord if it is worn or damaged.
• Do NOT overload extension cord.
• Remove extension cord from the grommet hole before moving or transporting side box.
• Only use an extension cord that is rated for outdoor use.
• Do NOT connect extension cord to outlet that also supplies power for critical safety equipment.
Cordless Power Tool Battery Chargers –
• See Charger’s Owner's Manual for proper use and care of charger and batteries. Follow all warnings and instructions provided with
your battery charger.
• Place chargers and electrical connections in tray.
• Chargers are Dry location use only. Do NOT expose to liquid, vapor, or rain. Should your charger become wet, do NOT attempt to use.
Unplug extension cord from supply before handling wet charger or cords.
• Only use chargers and batteries that are intact and operating properly.
• Do NOT touch metal prongs when plugging charger into extension cord.
• Keep flammable materials like paper or rags away from charger, cords or connections.
• Do NOT place or attempt to charge lead-acid, car-type batteries in side box.
WARNING

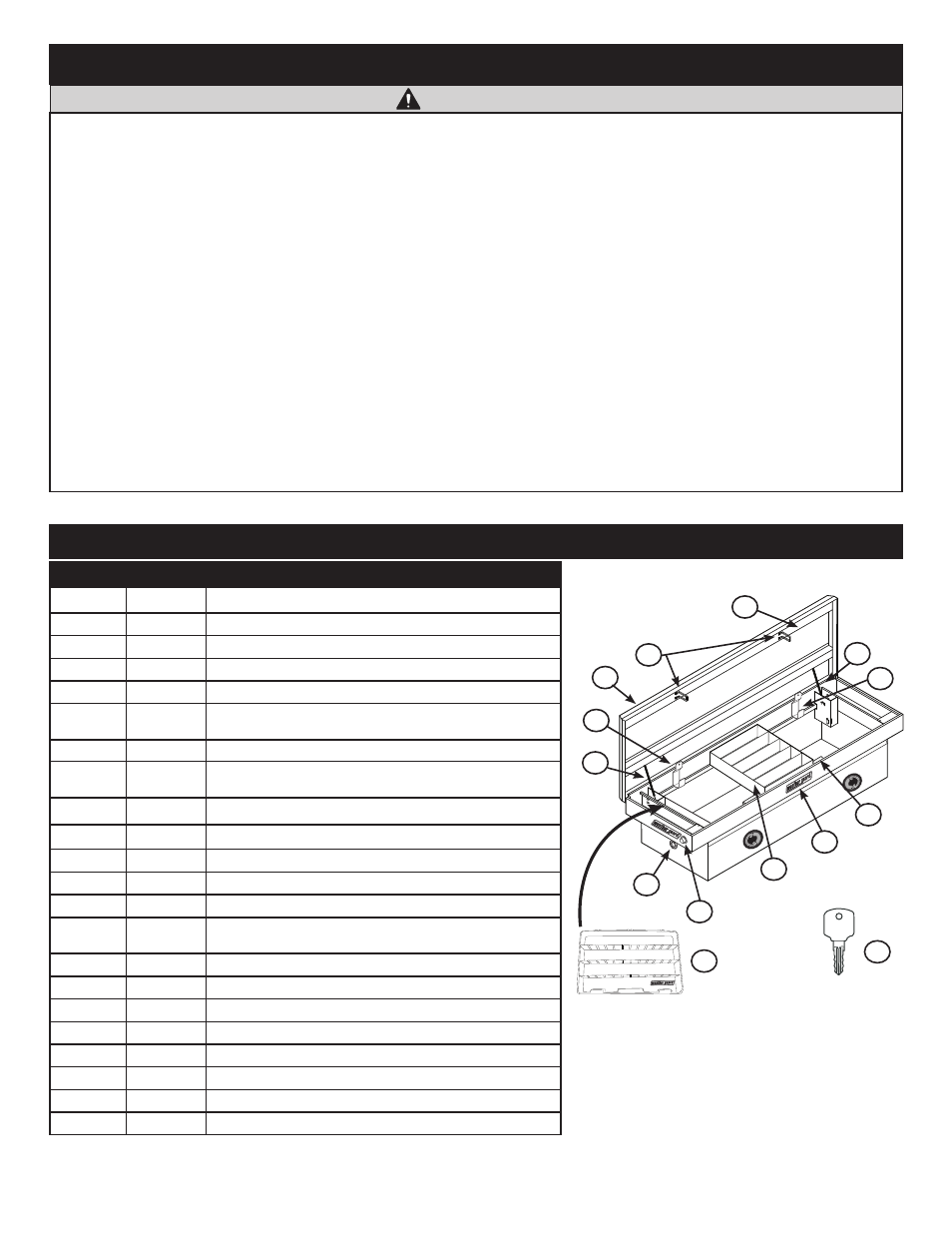

SERVICE PARTS
FOR ADD'L REPLACEMENT PARTS GO TO WWW.WEATHERGUARD.COM
ITEM NO. PART NO. DESCRIPTION
1 7008-2PK Gas Spring for 117-X-02
7009-2PK Gas Spring for 127-X-02
7250-2PK Gas Spring for 126-X-02
7251-2PK Gas Spring for 116-X-02
2 7748-XX Lock & Key Set (XX = key code)
1 lock, 2 keys, retainer clip
3 7750-XX Key Replacement (XX = key code) 2 keys
4 7731 Latch & Striker Kit
(1 latch, 1 striker & mounting hardware)
5 7106 Striker Kit (1 striker and mounting hardware)
6 7730 Weather Strip Kit (various styles for 1 box)
7 615 Tray (1 tray plus dividers) for 126-X-02 and 127-X-02
617 Tray (1 tray plus dividers) for 116-X-02 and 117-X-02
8 618 Accessory Parts Box
9 7733 Mounting Kit (4 mounting clamps 4 bolts, 4 washers, 2 mount
pads (Not shown, see parts list, page 1)
10 7737 Level holder
11 7746 Nameplate Kit (3 stickers, 2 side bezels, 1 back bezel)
12 7749 Grommet Kit
13 7782-X Replacement Cover for 117-X-02
7783-X Replacement Cover for 127-X-02
7861-X Replacement Cover for 116-X-02
7864-X Replacement Cover for 126-X-02
14 7738 Latch Rod Kit (Not shown)
1
2
3
4
5
6
7
12
11
1
10
10
FEATURE OPERATION – Continued
8
13
3
(X = replace with -0 for clear, -3 for white and -5 for black)
