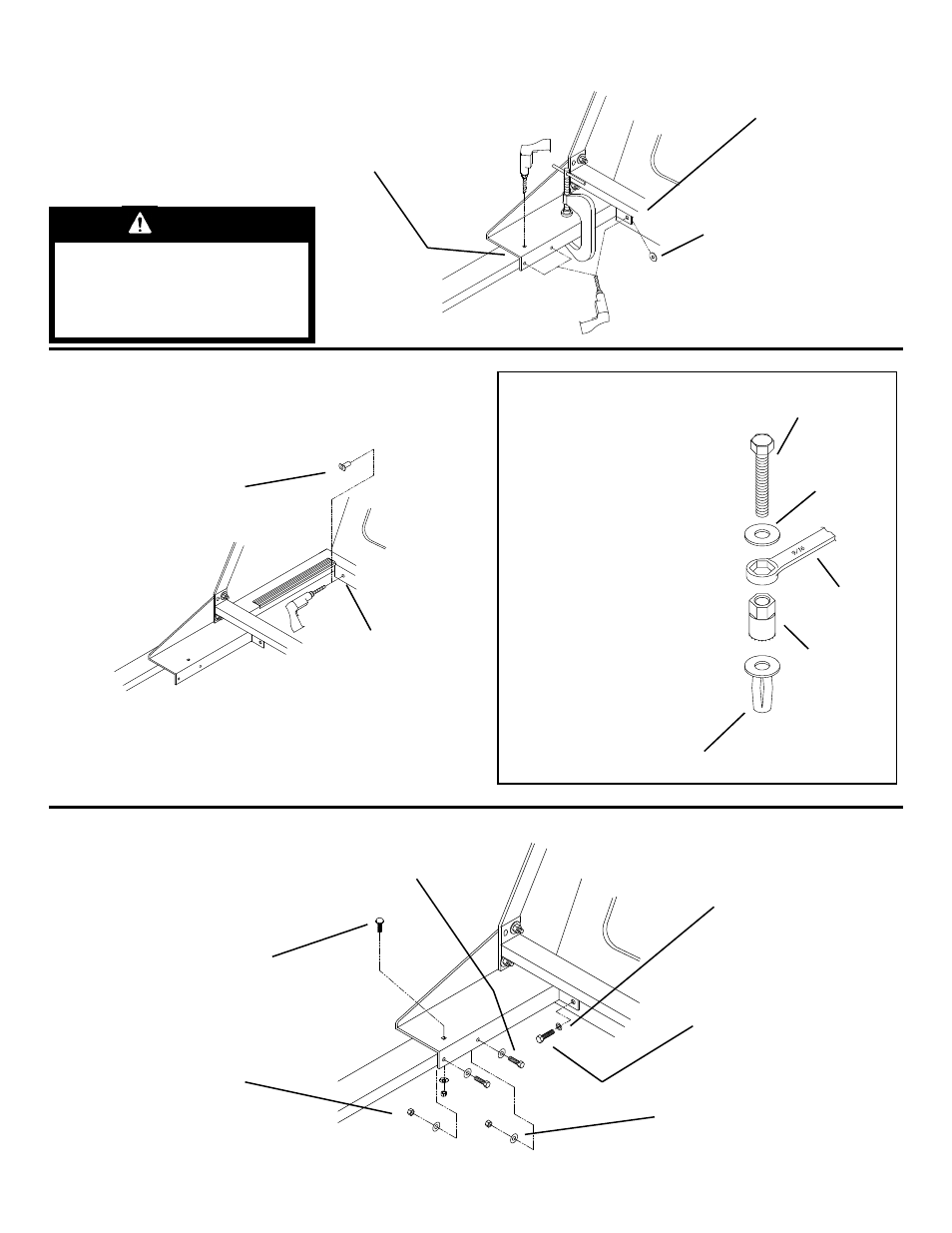

Step 4. Unclamp, Move Rack, Remove Flat Washer,
Redrill Front Hole, and Install Blind Fastener
CAUTION
To keep debris out of your
eyes when drilling, always
wear protective eyewear.
Step 3. Tape Washer, Clamp, and Drill Top, Side, and Front
(With Mounting Pads In Place)
Tape a 5/16" Flat Washer
between front of Mounting
Base and bed
Drill (4)
1/4" dia.
Hole
5/16-18
Blind Fastener
Drill
1/2" dia.
Hole
NOTE: Remove any plastic
tabs from the under side of
the truck top rail that are
in the way
Centered in 3/8" dia. hole
Mounting Pad
under Base
INSTALLATION PROCEDURE USING
BLIND FASTENERS
Black
Oxide
Bolt
Flat
Washer
9/16”
Wrench
Installation
Tool
Blind
Fastener
Place a drop of oil on the black
oxide bolt before assembling
as shown at right. Place the
Blind Fastener in the hole and
use a 1/2” or 7/16” wrench to
tighten black hex bolt until the
blind fastener is fully seated.
When setting black hex bolt, it
will start out hard. As the Blind
Fastener “bulbs” out it will get
easier, until it bottoms out or
sets. Make sure the Blind
Fastener and Installation Tool
do not turn during installation.
1/4" Flat
Washer (5)
1/4-20 Nylon
Lock Nut (3)
Step 5. Replace Rack and Install Top, Side, and Front Fasteners
(tighten all fasteners)
1/4-20 x 1-1/2"
Carriage Bolt
1/4-20 x 1-1/4"
Hex Hd. Bolt (2) 5/16" Lock
Washer
5/16-18 x 1-1/2"
Hex Hd. Bolt
