B. If the overtravel is less than the specified
limit, move the brake spring forward one slot
(in the direction of rotation), and repeat
steps two through six.
Note: If the unit is disassembled and the drive
and/or brake springs do not need to be
replaced, and the original tang slots were
marked proceed as follows:
• Reposition the clutch and brake springs into
their original positions onto the output shaft
assembly.
• Reassemble the clutch, and position the spring
tangs of the clutch and brake springs in the
factory marked locations on the control collar
assembly (on the control collar, the designated
tang slots are indicated with punch marks on
either side of the slot).
• After the unit is completely reassembled, the
differential setting should be returned to its
factory setting.

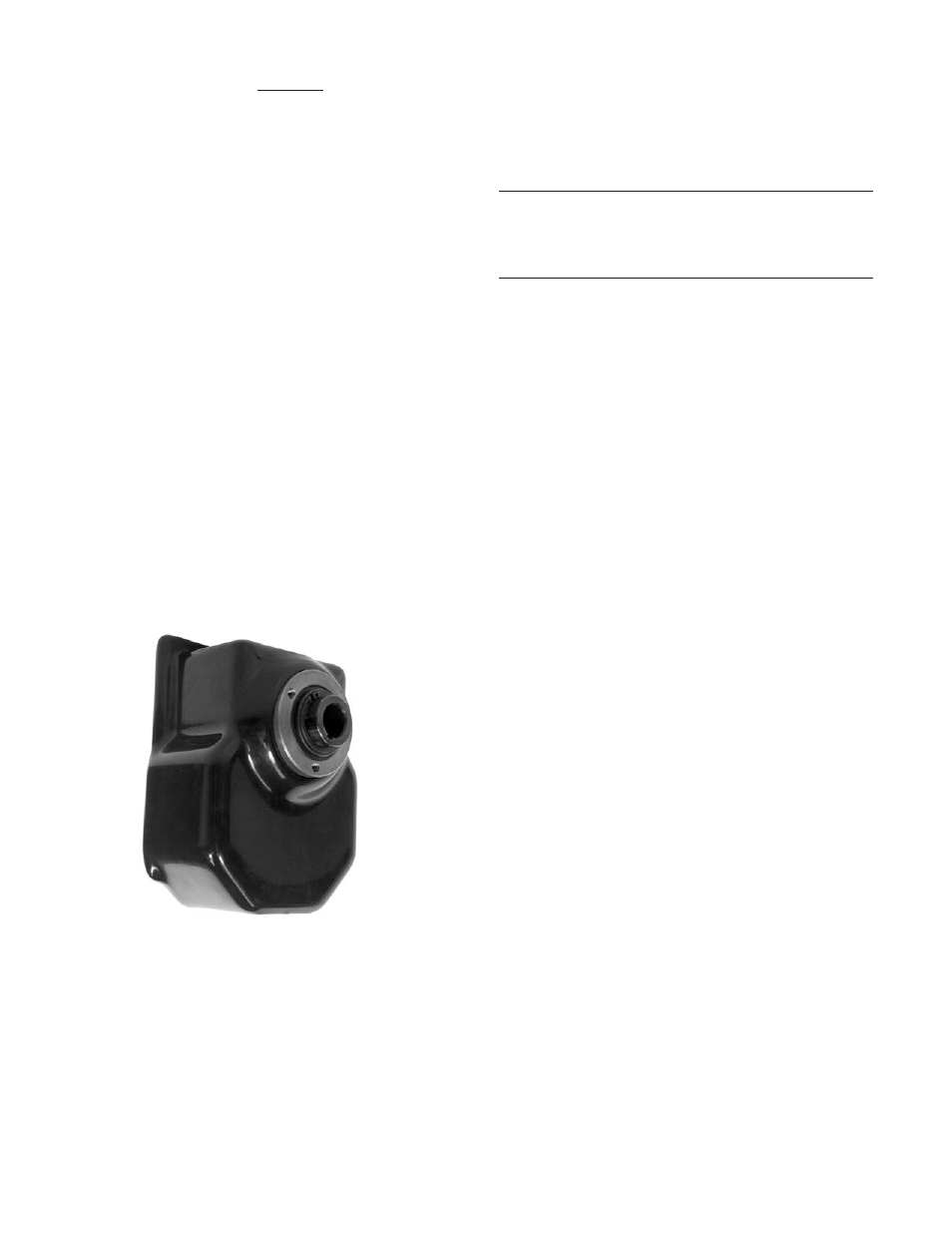

6. Dust Covers
Dust covers for CB and Super CB models have
been designed to protect the clutch/brake units
from abrasives, corrosion, contaminants, and
other harsh environmental elements.
Features:
• Protects models CB-4 through CB-8 and SCB-
5 through SCB-8, from dirt and contaminants
• Made of a durable, flexible, soft plastic material
• Simple to install and remove
• Low cost
Model Number
Part Number
Dust Cover for CB-4
287-4-0002
Dust Cover for CB-5/Super CB-5
287-5-0007
Dust Cover for CB-6/Super CB-6
287-6-0007
Dust Cover for CB-8/Super CB-8
287-8-0003
