Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Mounting Under Instrument Panel . . . . . . . . . . . 3
Hydraulic Connection . . . . . . . . . . . . . . . . . . . . . 3
Electrical Connection . . . . . . . . . . . . . . . . . . . . . 5
Sensitivity Adjustment . . . . . . . . . . . . . . . . . . . . 6
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . 7
Warranty . . . . . . . . . . . . . . . . . . . . . . . back cover
Introduction
The Warner Electric hydraulic/manual Utility
Controller combines manual and automatic
(hydraulic) actuation for the operation of 4, 6,
or 8 twelve volt electric wheel brakes. Some
of the features of this controller are:
• Can be installed to operate automatically
and/or manually.
• Permits manual over-ride of automatic
operation.
Failure to follow these
instructions may result in product damage,
equipment damage, and serious or fatal injury
to personnel.
• Brake pedal operated when connected into
towing vehicle hydraulic system.
• Highly sensitive for accurate brake control.
• Wide range of adjustability to compensate for
varying loads and changing road conditions.
• Rated at 30 amperes.
• Low hydraulic fluid displacement – less than
.02 cu. in.

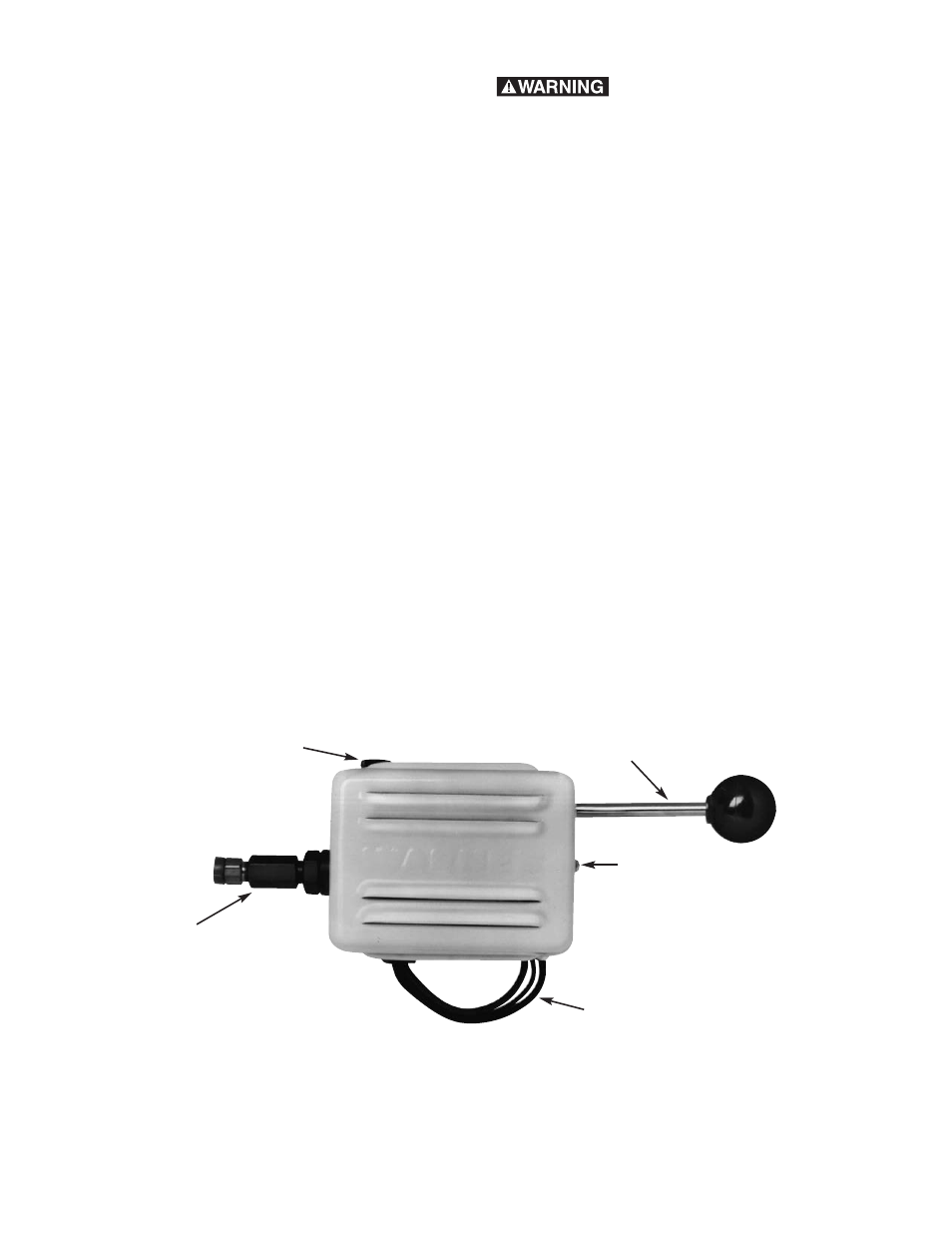

Hydraulic Connection
Adjustment Knob
Control Lever
Cover Retaining Screw
Connection Wires
