Vestil SCALE-S User Manual
Page 12
12

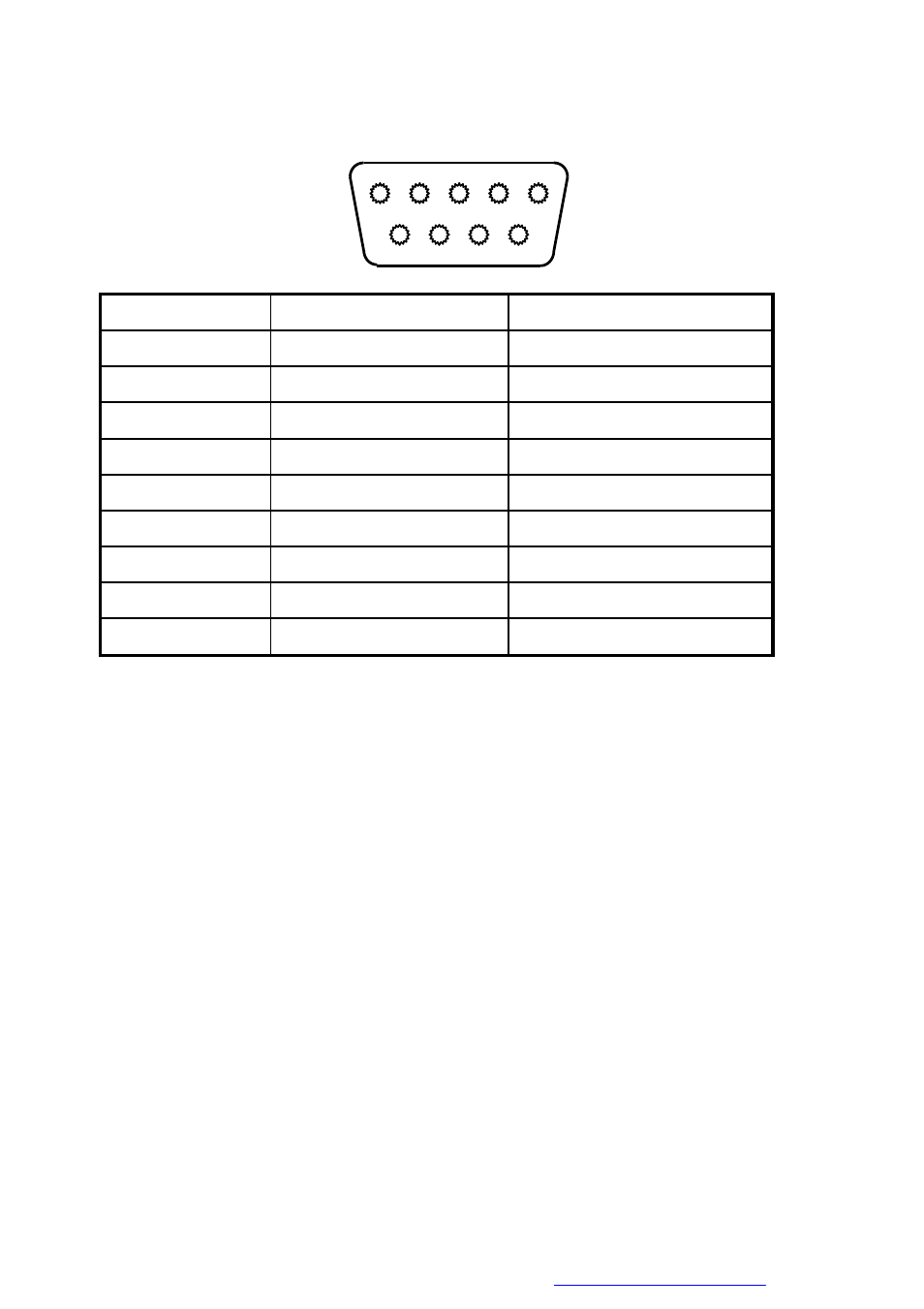

5. I/O card port is on I/O BD9 type joint of weighing display. The pin
Definition and connection as bellows:
5 4 3 2 1
9 8 7 6
DB9
Pin definition
Port
1
First input pin
In1
2
Second input pin
In2
3
Third input pin
In3
4
Fourth input pin
In4
5
GND
I/O public groud
6
First output pin
Out1
7
Second output pin
Out2
8
Third output pin
Out3
9
Fourth output pin
Out4
Note: above is transistor output for I/O card install. When you select
the relay output for I/O card. Pls. refer to Relay output I/O card manual.
