Selecting
Alternate
Sweep Mode

In alternate sweep frequency mode, the signal gen-
erator’s output frequency sweeps alternately be-
tween any two sweep ranges in analog sweep or any
two sweep ranges in step sweep. The process of se-
lecting and activating the alternate sweep is identi-
cal for both analog and step sweep frequency modes.

To select the alternate sweep mode for analog

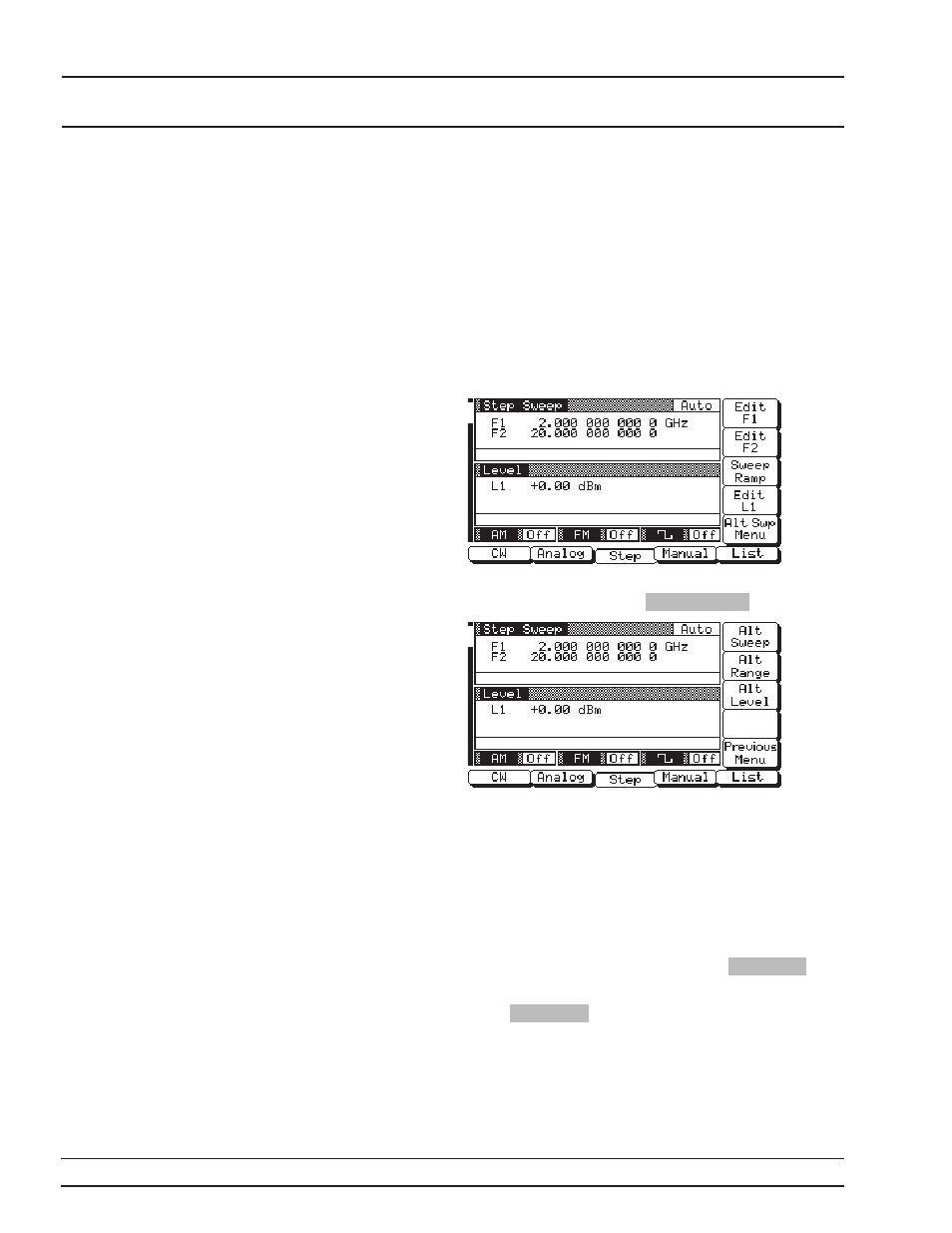

sweeps, start with the Analog Sweep Menu display;
to select the alternate sweep mode for step sweeps,
start with the Step Sweep Menu display (below).

To go to the Alternate Sweep Menu (below) from the
Step Sweep menu, press

Alt Swp Menu

This menu lets you perform the following:

Turn the alternate sweep mode on/off.

Go to the alternate range menu to select a
sweep range for the alternate sweep.

Go to the alternate level menu to select a
power level for the alternate sweep.

Activating the Alternate Sweep
The Alternate Sweep menu soft-key

Alt Sweep

tog-

gles the alternate sweep mode on and off.

Press

Alt Sweep

to turn on the alternate sweep

mode. Notice that the Alternate Sweep menu (on
the following page) changes to show that the alter-
nate sweep is now active.
