HDO4000 High Definition Oscilloscope

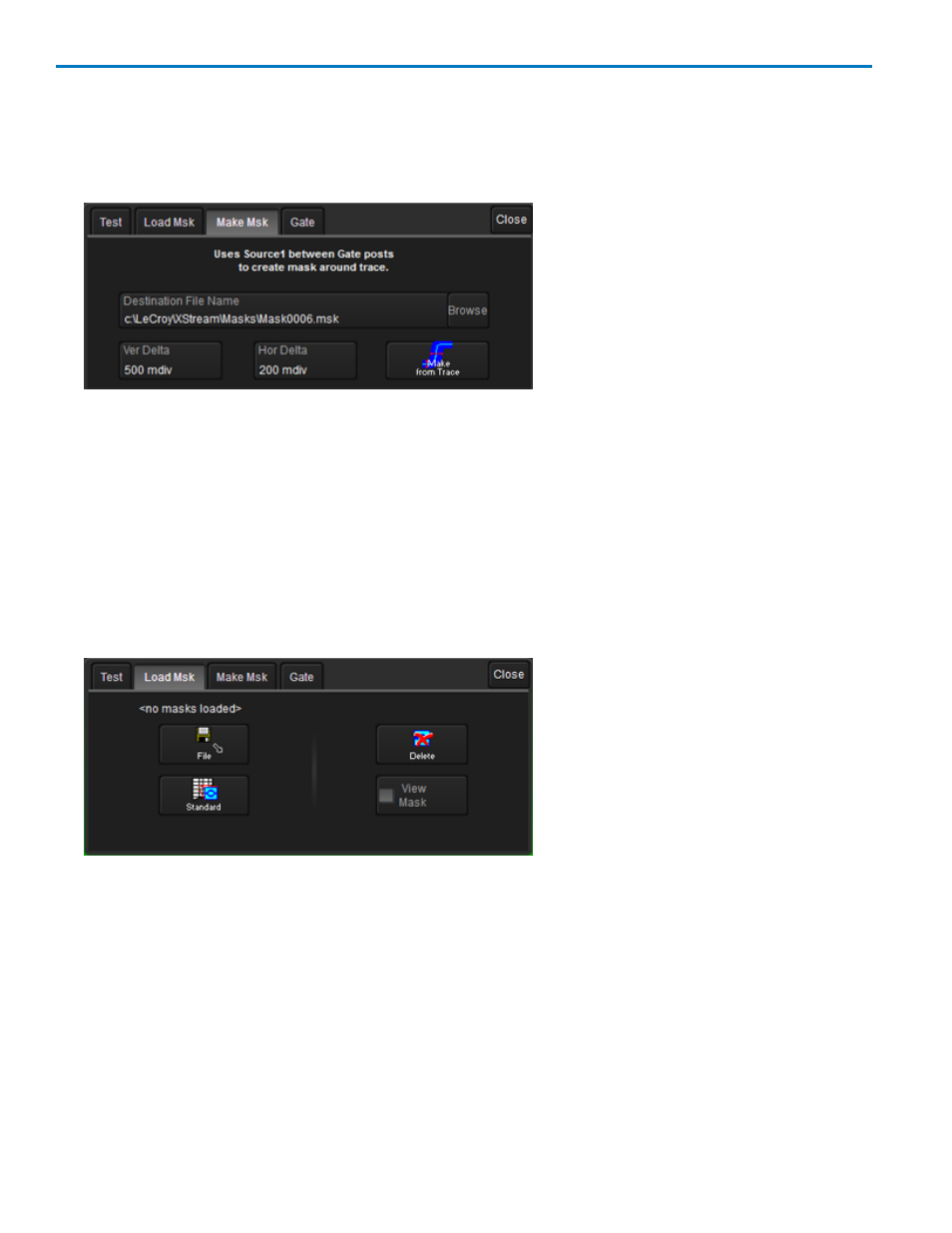

Make Mask
Use this procedure to create a new mask based on a source waveform. The mask will cover the area of
the waveform, plus the boundary values you enter.
1. Touch the Make Mask tab to display the dialog.
2. If desired, enter a new Destination File Name and path, or touch Browse and select a previous file to
overwrite. The file name should end with the .msk extension.
3. Touch the Ver Delta and Hor Delta fields and enter boundary values using the pop-up numeric keypad
or the Front Panel Adjust knob.
4. Touch Make from Trace.
Load Mask
Use this procedure in lieu of Make Mask if you have a pre-defined mask file, or wish to recall a mask you
previously created and saved.
1. Touch the Load Mask tab to display the dialog.
2. To use a saved .msk file, touch File and select the mask.
OR
To use an industry standard mask, touch Standard and select the mask from the pop-up.
3. Check View Mask to display the mask over the trace.
