HDO4000 High Definition Oscilloscope
WaveScan
The WaveScan® Search and Find tool enables you to search for unusual events in a single capture, or to
scan for a particular event in many acquisitions over a long period of time. Each
is optimized
to find a different type of event. The results are time stamped, tabulated, and can be selected for
individual viewing.
There are two principal approaches to using WaveScan.
Capture & Search -- Make a single acquisition, then use Measurement Mode to search for parameter
measurements that fit your filter criteria.
Scan -- Set up the scan mode, then scan for matching events across multiple acquisitions.
Customize the presentation by choosing different WaveScan display features, or
. Optionally,
set Actions to occur automatically when unusual events are found, such as stopping the acquisition or
sounding an alarm.
NOTE: Whenever WaveScan is enabled, the instrument reverts to Real-time sampling mode.

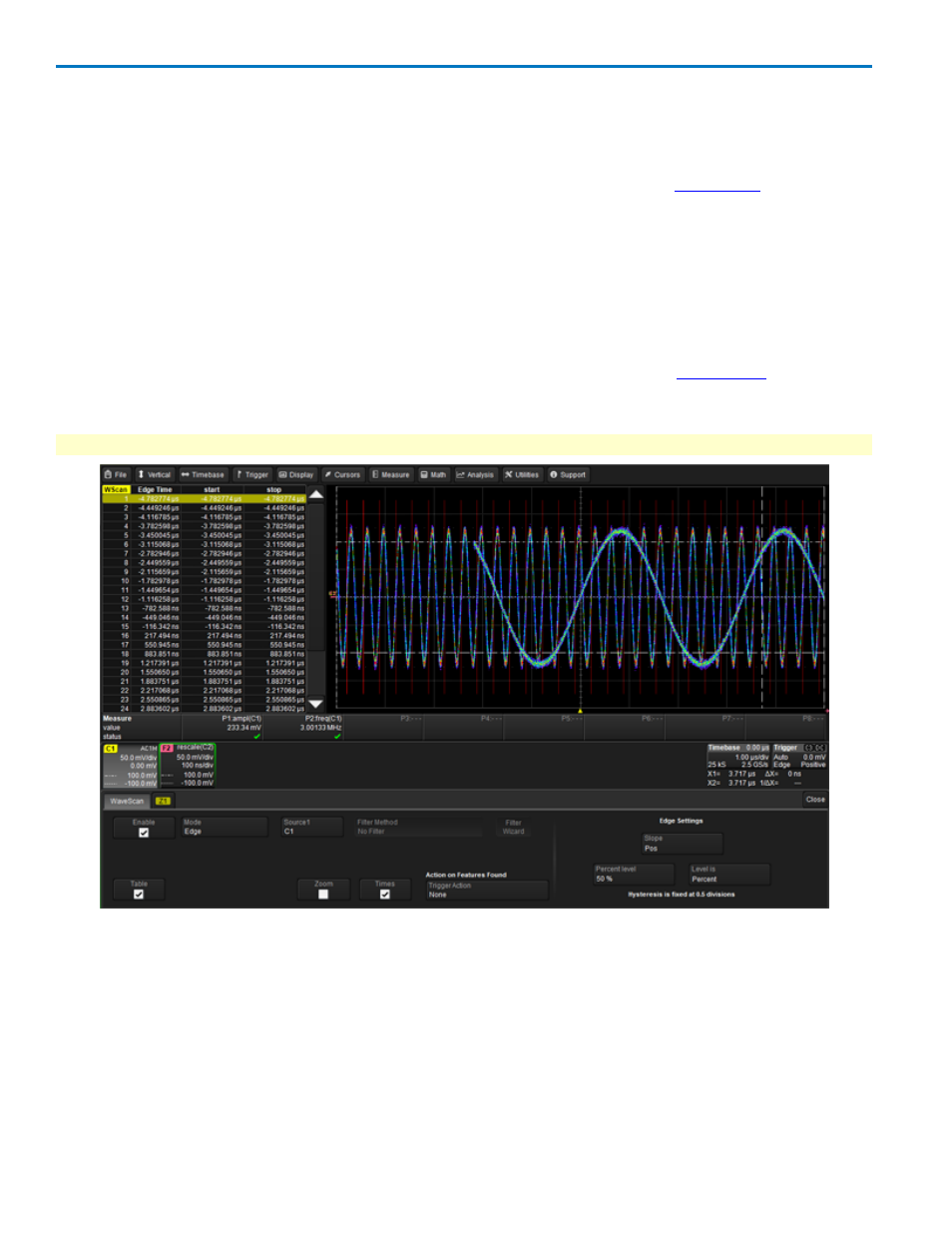

WaveScan window with all scan "views" turned on.
Scan Modes
The scan mode determines the type of search to be performed. Select the Mode along with the Source
trace to be searched on the main WaveScan dialog.
For each mode, different controls appear on the WaveScan dialog, providing additional inputs to the
search criteria. Make the appropriate entries in these fields before starting the search.
