Operator's Manual

LSIB-OM-E Rev C

23

On The Oscilloscope

1.

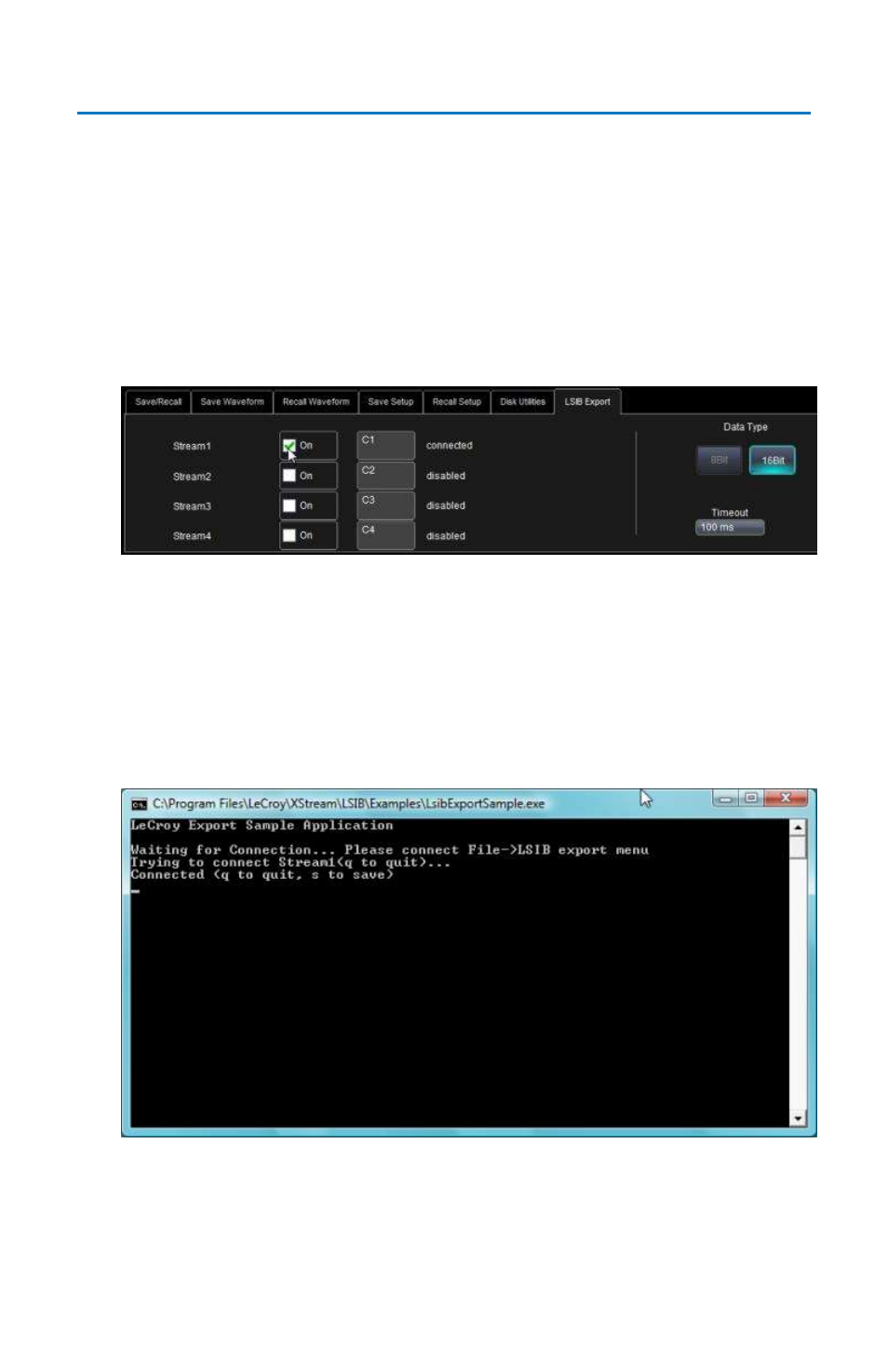

Setup your oscilloscope for LSIB Export mode by

choosing File → Save Waveform.

2.

Click the LSIB Export tab on the lower part of the
screen and select the appropriate data stream for

your performance test. Data Stream 1 is selected
in the following example.

On Your Laptop/PC

3.

Confirm the remote control interface on the host
Laptop/PC shows that the oscilloscope and host PC

are connected.

W

INDOWS
