Operator's Manual
LSIB-OM-E Rev C 7

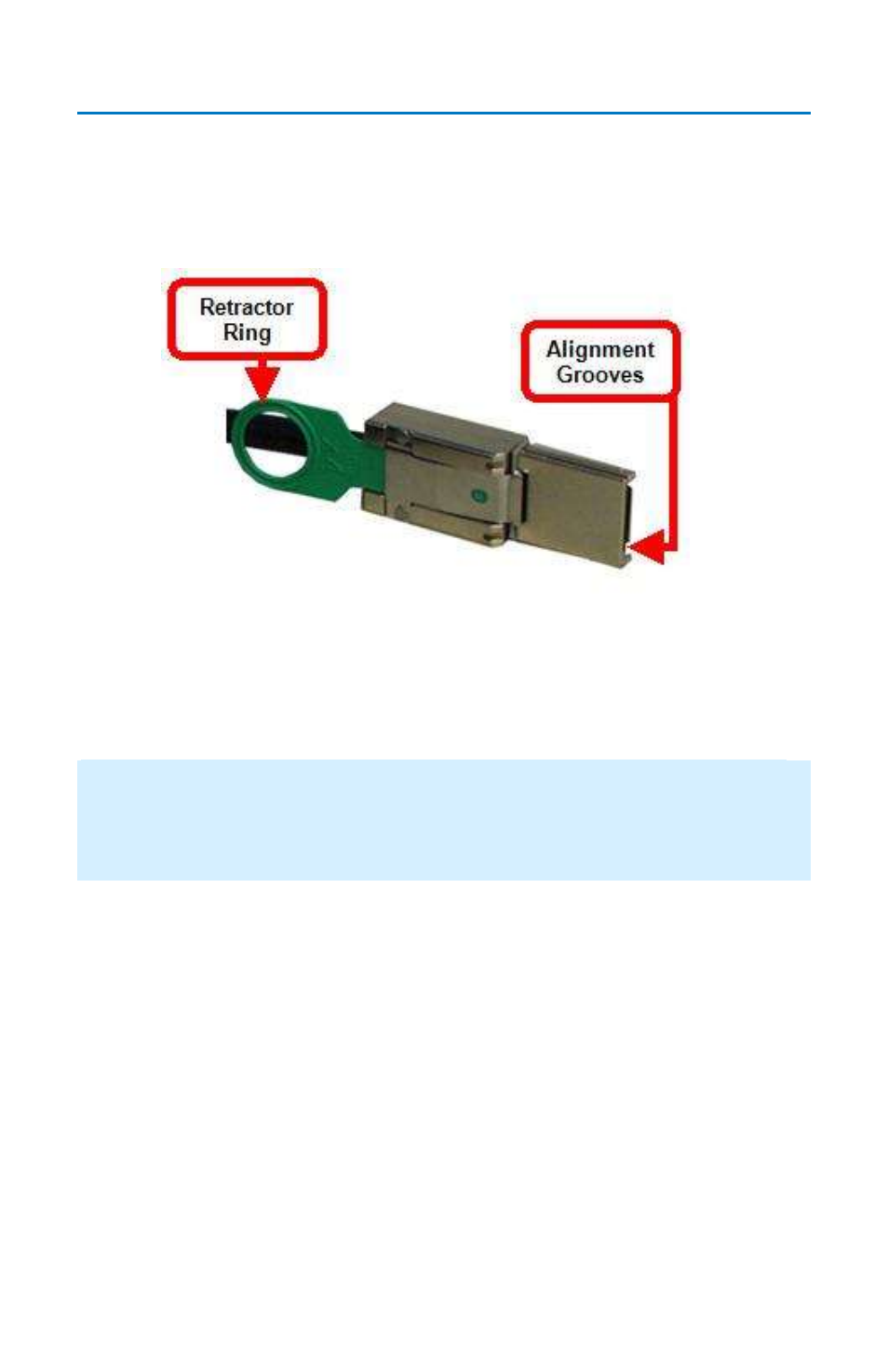

3. Attach the cable by first pulling on the retractor
ring which releases the locking mechanism.
Connection ends are interchangeable and allow for
upstream and downstream transfers.
4. Push the cable into the ExpressCard slot until it
locks into place.
5. Attach the other end of the cable to the
oscilloscope.
NOTE: Reverse these steps to remove the cable and the
LSIB-HOSTCARD being sure to first pull the cable's
retractor ring which releases the locking mechanism
before removing the cable.
