Optional modules, J4 j5 j7 j8, Voltmeter/ammeter 3 installation procedure – System Sensor PDRP-1002 User Manual
Page 21
Voltmeter/Ammeter
3 Installation Procedure
The PDRP-1002 PN 51135:A 03/11/99
21
Optional Modules
The fire control panel has two module connectors - J5 and J8. Three modules are
available for the panel and they can be used in any combination, including duplicate
modules. The corresponding option jumper must be cut before installation of an
optional module.

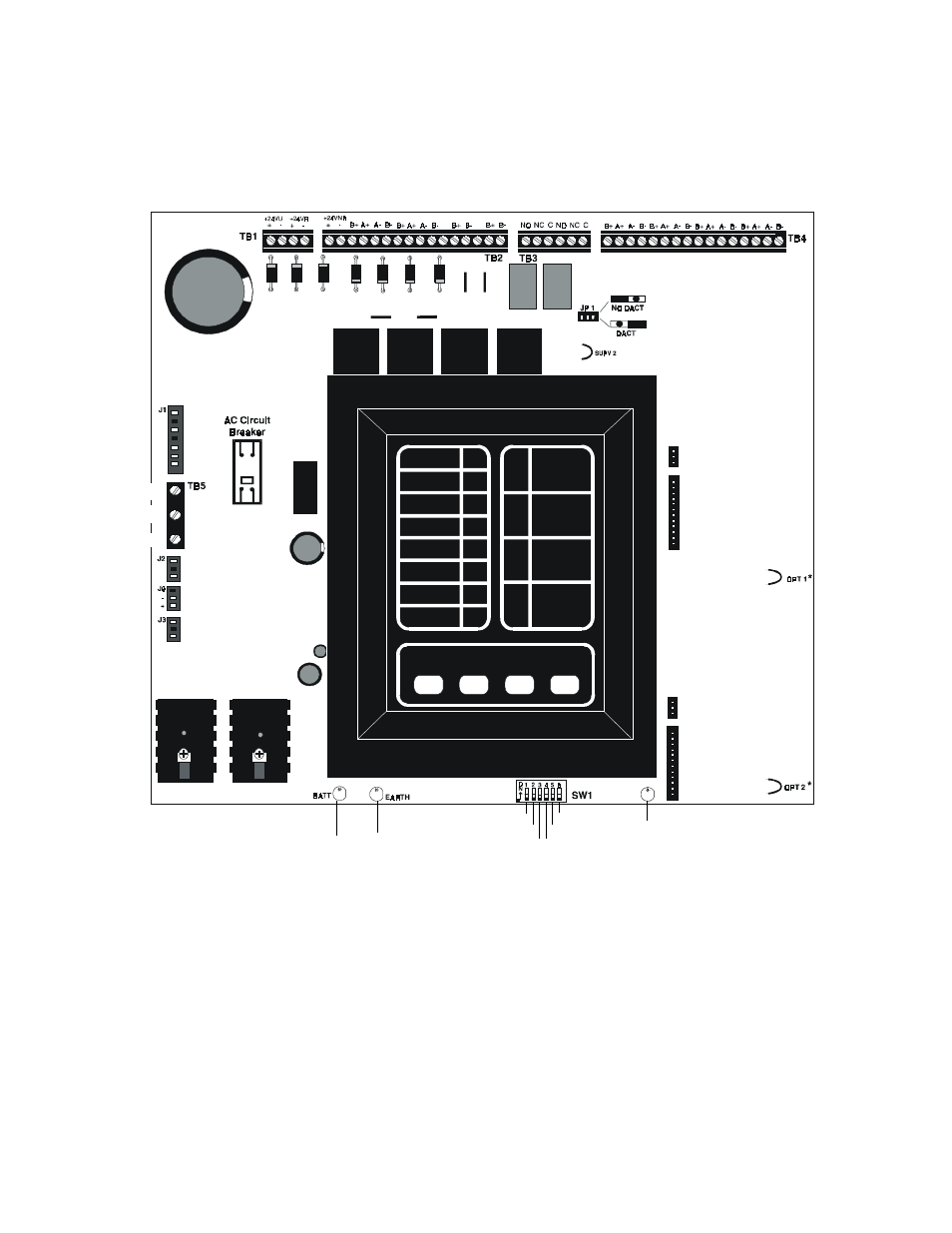

Figure 10 Optional Panel Modules
J4
J5
J7
J8
Note:
•
Optional 4XLM module for an RZA-4X Annunciator must be installed on J7 and J8 only.
•
4XTM and 4XZM modules can be installed in either location.
*Jumper “OPT 2”
must be cut if a
module is
installed in this
position
Micro Fail LED
Abort Option
Abort Option
Delay Timer
Cross Zone
Supervisory
Delay Timer
Ground Fault LED
Battery Fail LED
*Jumper “OPT 1”
must be cut if a
module is
installed in this
position
Batteries
Optional Ammeter
Connection
Transformer
Optional
VoltmeterConnection
Hot
Neutral
Ground
4X
R
P
10
2a
.c
dr
